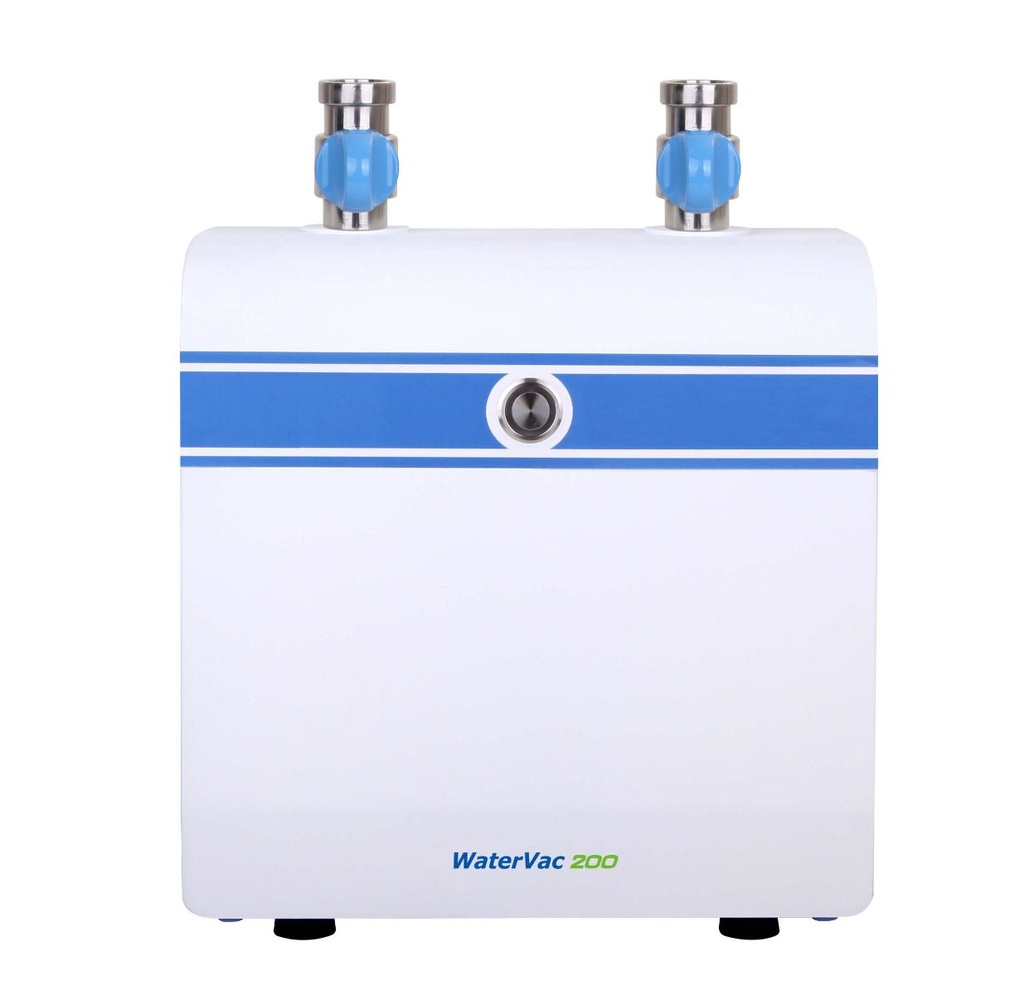

WaterVac 200, Vacuum Filtration System 100-240V

Filtration Systems

Item	Filter diameter (mm)	Filtration area (cm²)	Filter support	Funnel	Funnel capacity (mL)	Flask	Flask capacity (mL)	Max vacuum (mbar)	Voltage	Flow rate (L/min)	Hose barb (inch)
Filtration System
Lafil 300 - LF 30	47	12.5	PP	PES w/ PP funnel lid	300	PC w/ overflow protection	1200	105	110V or 220V	23 for 110V or 20 for 220V	5/16
Lafil 400 - LF 30	47; 50	n.d.	PP	PES	300	PC w/ overflow protection	1200	30	110V or 220V	23 for 110V or 20 for 220V	5/16
Lafil 400 - LF 5a - 500 (110 V)	47; 50	n.d.	n.d.	PES w/ PP lid	500	Borosilicate glass	500	30	110 V	25 L/min	5/16
Filtration System for Solvent
Lafil 300C - VF12	47	9.6	Sintered glass	Borosilicate glass	300	Borosilicate glass	1000	170	110V or 220V	23 for 110V or 20 for 220V	5/16

Flaskless Filtration Systems

Item	Funnel	Funnel capacity (mL)	Funnel adaptor	Wetted parts	Max vacuum(mbar)	Voltage	Flow rate (L/min)	Hose barb (inch)
WaterVac 100-MS	sold separately	sold separately	Silicone #8 stopper	SS316, FKM, Silicone, PP, & PA66	313	DC 12 V (100-240V AC adaptor); US or EU plug	0.5	1/4
