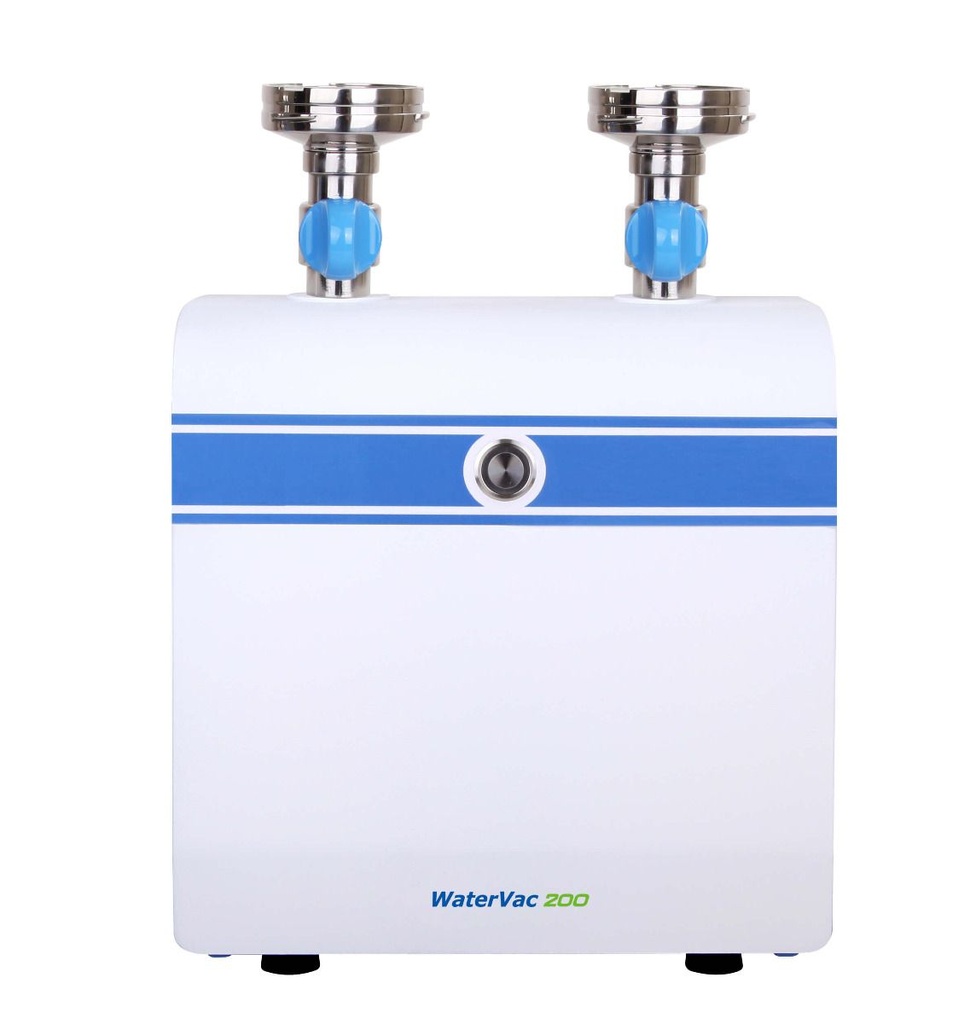

WaterVac 200-MB, Vacuum Filtration System 100-240V

WaterVac 200-MB, Vacuum Filtration System 100-240V

Cat. No.
190220-01
https://www.scilogex.com/web/image/product.template/3725/image_1920?unique=d0b4a02

$ 922.00 922.0 USD $ 922.00 In stock

$ 922.00

Currently Out-of-Stock

This combination does not exist.

Contact Us
Request a Quote



For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Share

Description


Save time

A built-in liquid pump can transfer filtered liquid directly to waste, save time by simplifying filtration process.


Save 70% bench space

Integrates liquid pump and filter holder into an instrument, no need of waste bottle and connecting tubing which is necessary for traditional air pump.


Compliance with ISO 8199

WaterVac 200 complies with ISO 8199 regulation and ideal for microbiological sample filtration.(*ISO8199: Water quality – General guidance for microbiological examinations by culture)


Compatible with Rocker SF funnel

WaterVac 200-MB can accept Rocker SF funnel – 100 / 300 / 500 ml. SF funnel is made of SS316 stainless steel which can be fast sterilized by flame.


Certificates:


CE certification

IP 41 protection class

RoHS certification


WaterVac Filtration System Applications:


Microbiological test by Membrane Filter Technique

Suspended solid test for water monitoring

General filtration without collecting filtrate

Specifications

Filtration Systems | Flaskless Filtration Systems | Multibranch Filtration Systems | Portable Suction Systems

Filtration Systems

Item Filter diameter (mm) Filtration area (cm²) Filter support Funnel Funnel capacity (mL) Flask Flask capacity (mL) Max vacuum (mbar) Voltage Flow rate (L/min) Hose barb (inch)
Filtration System
Lafil 300 - LF 30 47 12.5 PP PES w/ PP funnel lid 300 PC w/ overflow protection 1200 105 110V or 220V 23 for 110V or 20 for 220V 5/16
Lafil 300 - LF 32 47 n.d. SS316 SS316 n.d. PC w/ overflow protection 1200 105 110V or 220V 23 for 110V or 20 for 220V 5/16
Lafil 400 - LF 32 47; 50 n.d. SS316 SS316 n.d. PC w/ overflow protection 1200 30 110V or 220V 23 for 110V or 20 for 220V 5/16
Lafil 400 - LF 30 47; 50 n.d. PP PES 300 PC w/ overflow protection 1200 30 110V or 220V 23 for 110V or 20 for 220V 5/16
Rocker 300 - LF 30 47 12.5 PP PES w/ PP funnel lid 300 PC w/ overflow protection 1200 105 110V or 220V 23 for 110V or 20 for 220V 5/16
Rocker 300 - MF 31 47 13.1 PES PES w/ PP funnel lid 300 Borosilicate glass w/ drain 1000 105 110V or 220V 23 for 110V or 20 for 220V 5/16
Rocker 300 - LF 30 - SS 47; 50 12.5 PP PES w/ PP funnel lid 300 PC w/ overflow protection 1200 105 110V or 220V 23 for 110V or 20 for 220V 5/16
Rocker 300 - LF 32 47 n.d. SS316 SS316 100 PC w/ overflow protection 1200 105 110V or 220V 23 for 110V or 20 for 220V 5/16
Rocker 300 - LF 31 47 12.5 PP PES 300 for 110V 100 for 220 V Borosilicate glass w/ drain 1000 for 110V 1200 for 220V 105 110V or 220V 23 for 110V or 20 for 220V 5/16
Lafil 400 - LF 5a - 500 (110 V) 47; 50 n.d. n.d. PES w/ PP lid 500 Borosilicate glass 500 30 110 V 25 L/min 5/16
Lafil 400 - LF 5a - 500 (220 V) n.d. n.d. n.d. PE w/ PE lid 500 and 1000 Borosilicate glass 500 (1000 mL optional) 30 220 V 22 L/min 5/16
Rocker 300 - LF33 47 n.d. SS316 PES w/ PP funnel lid 300 PC w/ overflow protection 1200 105 110V or 220V 23 for 110V or 20 for 220V 5/16
Filtration System for Solvent
Lafil 300C - VF12 47 9.6 Sintered glass Borosilicate glass 300 Borosilicate glass 1000 170 110V or 220V 23 for 110V or 20 for 220V 5/16
Rocker 300C - VF 12 47 9.6 Sintered glass Borosilicate glass 300 Borosilicate glass 1000 170 110V or 220V 23 for 110V or 20 for 220V 5/16
Chemker 300 - VF 12 47 9.6 Sintered glass Borosilicate glass 300 Borosilicate glass 1000 170 110V or 220V 23 for 110V or 20 for 220V 5/16

Back To Top

Filtration Systems | Flaskless Filtration Systems | Multibranch Filtration Systems | Portable Suction Systems

Flaskless Filtration Systems

Item Funnel Funnel capacity (mL) Funnel adaptor Wetted parts Max vacuum(mbar) Voltage Flow rate (L/min) Hose barb (inch)
WaterVac 100 sold separately sold separately sold separately SS316, FKM, Silicone, PP, & PA66 313 DC 12 V (100-240V AC adaptor); US or EU plug 0.5 1/4
WaterVac 100-MS sold separately sold separately Silicone #8 stopper SS316, FKM, Silicone, PP, & PA66 313 DC 12 V (100-240V AC adaptor); US or EU plug 0.5 1/4
WaterVac 100-MB sold separately sold separately SS316; spinlock SS316, FKM, Silicone, PP, & PA66 313 DC 12 V (100-240V AC adaptor); US or EU plug 0.5 1/4
WaterVac 101-MB SS316 100 SS316; spinlock SS316, FKM, Silicone, PP, & PA66 313 DC 12 V (100-240V AC adaptor); US or EU plug 0.5 1/4
WaterVac 201-MB SS316 100 (2 pcs) SS316; spinlock SS316, FKM, Silicone, PP, & PPS 313 DC 12 V (100-240V AC adaptor); US or EU plug 4.5 5/16

Back To Top

Filtration Systems | Flaskless Filtration Systems | Multibranch Filtration Systems | Portable Suction Systems

Multibranch Filtration Systems

Item No. of branches Filter diameter (mm) Funnel Funnel capacity (mL) Flask Flask capacity (mL) Wetted Parts Max vacuum (mbar) Voltage Flow rate (L/min) Hose barb (inch)
MultiVac 310-MS 3 various sold separately various n.a. Aluminum n.a. n.a. n.a. 5/16
MultiVac 610-MS 6 various sold separately various n.a. Aluminum n.a. n.a. n.a. 5/16
MultiVac 300-MB-T 3 47; 50 SS316 100 (3 pcs) PP with drain 4000 SS316; Aluminum 106 110V or 220V 37 for 110V or 34 for 220V 5/16
MultiVac 600-MB-T 6 47; 50 SS316 100 (6 pcs) PP with drain 4000 SS316; Aluminum 106 110V or 220V 37 for 110V or 34 for 220V 5/16
MultiVac 310-MS-T 3 47 PES 300 (3 pcs) PP with drain 4000 Aluminum 105 110V or 220V 37 for 110V or 34 for 220V 5/16
MultiVac 610-MS-T 6 47 PES 300 (6 pcs) PP with drain 4000 Aluminum 105 110V or 220V 37 for 110V or 34 for 220V 5/16
MultiVac 310-MS-A 3 47 PES 300 (3 pcs) n.a. SS316; FKM; Silicone; PP; PPS 313 DC 24 V 4.5 5/16

Back To Top

Filtration Systems | Flaskless Filtration Systems | Multibranch Filtration Systems | Portable Suction Systems

Portable Suction Systems

Item Suction kit Flask Flask capacity (mL) Max vacuum (mbar) Voltage Flow rate (L/min) Hose barb (inch)
Lafil 100 - Handle - 1-channel / 8-channel tip adaptor w/ ejector Glass 500 345 DC 12 V (100-240V AC adaptor); US or EU plug 4 n.d.
Lafil 300 Plus - Handle - 1-channel / 8-channel tip adaptor w/ ejector - 1-channel tip adaptor; 150 mm - Handle - 1-channel / 8-channel tip adaptor w/ ejector - 1-channel tip adaptor; 150 mm 1200 105 110V or 220V 23 for 110V or 20 for 220V 5/16
Lafil 400 Plus - Handle - 1-channel / 8-channel tip adaptor w/ ejector - 1-channel tip adaptor; 150 mm PES 1200 30 110V or 220V 23 for 110V or 20 for 220V 5/16
BioVac 225 Handle PC 1000 213 110V or 220V 25 for 110V or 23 for 220V 3/16
BioVac 225 Plus - Handle - 1-channel / channel tip adaptor w/ ejector - 1-channel tip adaptor; 150 mm PC 1000 213 110V or 220V 25 for 110V or 23 for 220V 3/16
BioVac 240 Handle PC 3000 106 110V or 220V 40 for 110V or 38 for 220V 3/16
BioVac 240 Plus - Handle - 1-channel / 8-channel tip adaptor w/ ejector - 1-channel tip adaptor; 150 mm PC 3000 106 110V or 220V 40 for 110V or 38 for 220V 3/16
Lafil 200-BioDoplhin - Handle - 1-channel / 8-channel tip adaptor with ejector - 1-channel tip adaptor; 50 / 150 mm - 1-channel / 8-channel SS adaptor; 40 mm - - 1-channel SS adaptor; 80 mm · Rack PP 4000 213 DC 12 V (100-240V AC adaptor); US or EU plug 10 n.d.
BioDolphin - Handle - 1-channel / 8-channel tip adaptor with ejector - 1-channel tip adaptor; 50 / 150 mm - 1-channel / 8-channel SS adaptor; 40 mm - 1-channel SS adaptor; 80 mm - Rack n.a. n.a. n.a. n.a. n.a. 1/4

Back To Top

Filtration Systems | Flaskless Filtration Systems | Multibranch Filtration Systems | Portable Suction Systems
