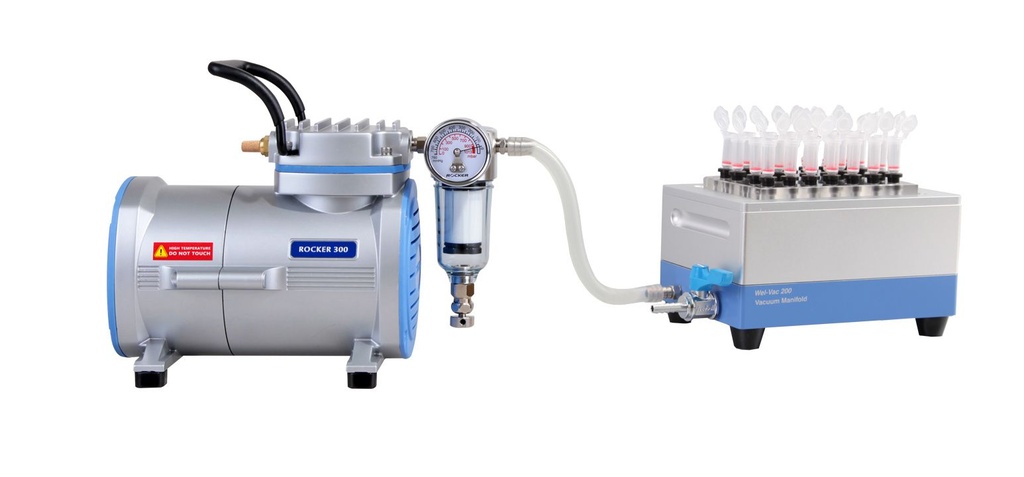

WelVac 210, Microplate Vacuum Manifold System 220V

Microplate Vacuum Manifold Product Features:

• Simplifying operation
  WelVac 200 is designed to replace traditional centrifuges with vacuum source to simplify purification process of plasmid DNA, ssDNA, RNA, genomic DNA, viral nucleic acids, etc.
• Time-saving
  By connecting manifold to vacuum source, the system can give a rapid continuous separation without dispensing solution, running and stopping centrifuge.
• Multi-use of one machine
  Unique designed column adapterboard and luer connector make WelVac 200 highly compatible with various kinds of centrifuge tube and 96-well microplate.

​—  96-well microplate
​—  micro centrifuge tubes (24 holes)
​​—  large-volume centrifuge tubes (8 holes)

Microplate Vacuum Manifold Video:

Microplate Vacuum Manifold International certificate:

• CE certification
• CSA certification (Rocker 300)
• IP 30 protection (Rocker 300)
• RoHS certification (Rocker 300)
• Two-Year Warranty (Rocker 300)

Microplate Vacuum Manifold Applications:

• DNA Purification
• RNA Purification
• Gel Purification
• PCR Clean Up

Microplate Vacuum Manifold Ordering Information:

Rocker 300, Oil Free Vacuum Pump Specification (AC110V, 60Hz)

• Max. vacuum：105 mbar
• Max. flow：23 L/min
• Noise level：50 dB
• Hose barb： ID8 (5/16 inch)

Rocker 300, Oil Free Vacuum Pump Specification (AC220V, 50Hz)

• Max. vacuum：105 mbar
• Max. flow： 20 L/min
• Noise level：50 dB
• Hose barb： ID8 (5/16 inch)

WelVac 200, Microplate Vacuum Manifold Specification:

• Hose barb：ID8 (5/16 inch)
• Manifold internal dim. (LxWxH)：12.8 x 8.6 x 7.3 cm
• Manifold external dim. (LxWxH)：23.2 x 12.4 x 10.2 cm
• Net weight：2.6 kg

Material:

• Vacuum manifold：Aluminum
• Column adapter board：PC
• Gasket：Rubber
• O-ring：Rubber
• Luer connector：Silicone

• Luer stopper：Silicone
