Taylor Wharton by IC Biomedical – 38K (w/CS200 Controller w/Gas ByPass) Includes Fill Hose and Adaptor

Description

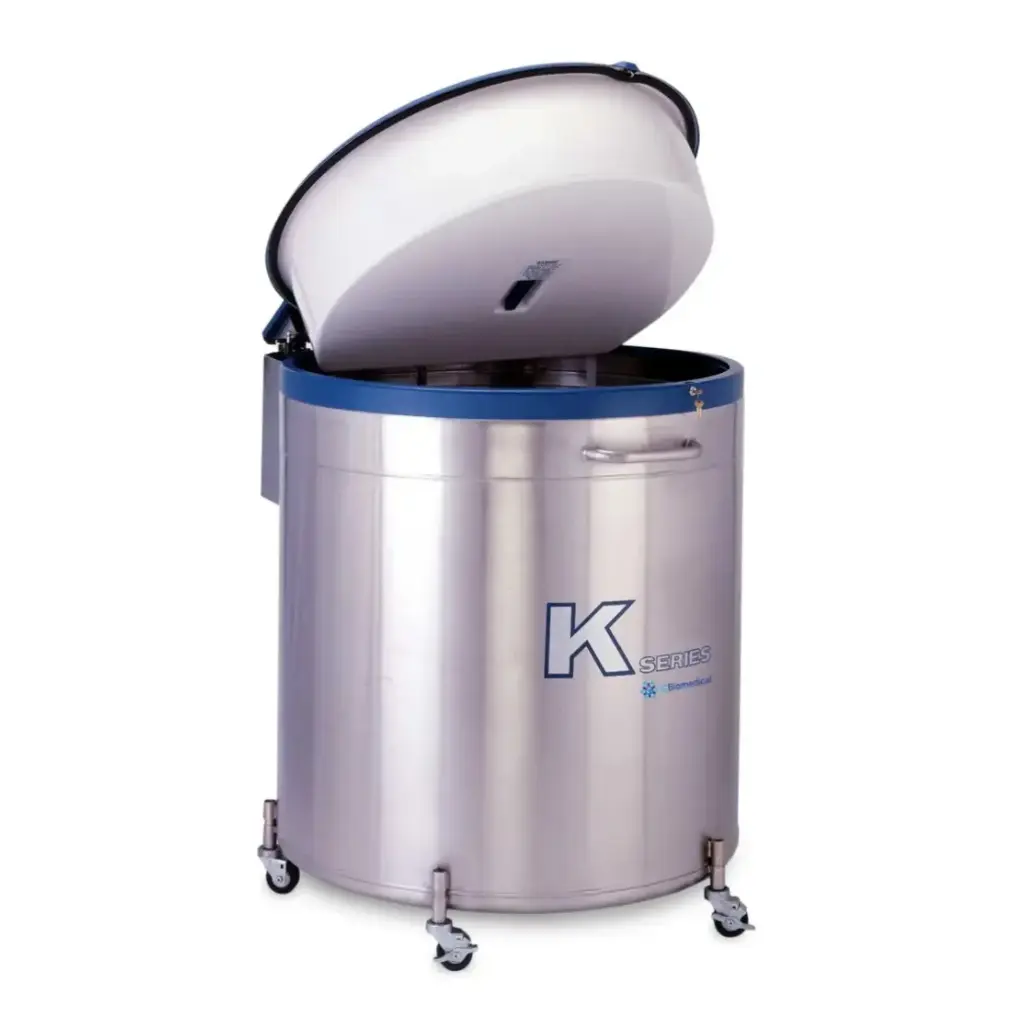

The Taylor Wharton by IC Biomedical 38K LN2 System is the perfect cryogenic storage solution when you require storage capacities of up to 38,350 2ml vials. This unit features a wide neck opening for easy access to samples, a durable powder coated cabinet, and an all stainless steel vacuum vessel with superior performance. This unit comes standard with a CS200 Controller, gas bypass, a fill hose and adapter.  We offer a large variety of inventory systems and accessories to complete this unit.

Specifications

• Static Holding Days(1): 74
• Working Time Days(2): N/A
• Evaporation Rate(1): 8
• Liquid Nitrogen Capacity: 590 liters
• Weight Empty: 565 lbs. / 256 kg
• Weight Full: 1,616 lbs. / 733 kg
• Neck Diameter: 39” / 991mm
• Overall Height: 49” / 1,245 kg
• Overall Dimensions(4): 42” / 1,067mm
• Usable Height (internal): 29” / 737mm
• Internal Diameter(5): 39” / 991mm

Capacity:

• 2ml Plastic Vials(6): 38,350
• No. of 100/81 Cell Racks: 28
• No. of 25 Cell Racks: 6
• No. of Shelves: 13
• Standard Box Size:
  • Shape: square
  • Size(8): 5" x 5" / 127 x 127mm
  • Vials per box: 100
• Mini Box Size:
  • Shape: square
  • Size(8): 3" x 3" 76 x 76mm
  • Vials per box: 25
• # of 0.50cc straws (two tier turn-table): 114,000

(1) Evaporation rate and static holding time are nominal. Actual rate may be affected by the nature of the contents, atmospheric conditions, container history, and manufacturing tolerances
(2) Working Time is an arbitrary, reference-only value to estimate container performance under the actual operating conditions.
(4) Maximum depth 55.0 in (1397mm). Maximum height 90.0 in. (2286 mm) with lid open.
(5) Temperature Gradient Suppression System reduces internal diameter by approx. 1/4 in. (6.4 mm).
(6) 2.0 ml vial size: 12.5 mm O.D. internal thread
(8) The 38K container utilizes both the 5 in. x 5 in. (127 mm x 127 mm) 100/81 cell box and the 3 in. x 3 in. (76 mm x 76 mm) 25 cell box.

Features

• Vapor or liquid storage
• Intuitive touch controls
• CS100 Controller
• Gas bypass
• Includes Fill Hose and Adapter
• Stainless steel vacuum vessel
• Modular design
• Durable powder coated cabinet
• Superior vacuum performance
• Mounted casters
• Optional step
• Various blood bag sizes and capacity details are available upon request
• Warranty: 5 year vacuum
