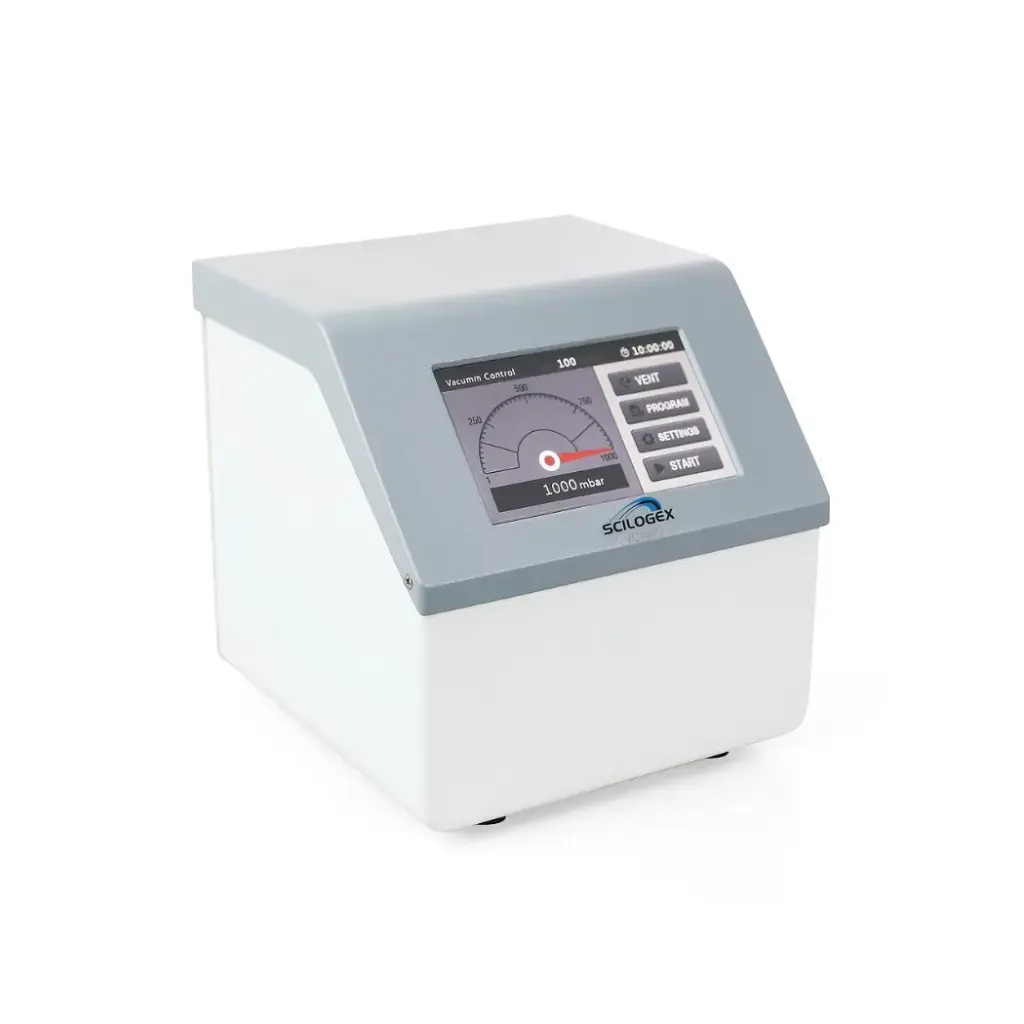

SCILOGEX SCI100VC Benchtop Vacuum Controller, 1-1000mbar, 100-230, 50/60Hz

Cat. No.
60311003009
https://www.scilogex.com/web/image/product.template/1199/image_1920?unique=57e0378
SCILOGEX SCI100VC Benchtop Vacuum Controller, 1-1000mbar 100-230, 50/60Hz

$ 1,625.00 1625.0 USD $ 1,625.00 In stock

$ 0.00

Currently Out-of-Stock

This combination does not exist.

Contact Us
Request a Quote



For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Share

SCILOGEX SCI100VC Benchtop Vacuum Controller, 100-230, 50/60Hz

Compatible with most vacuum sources including diaphragm pumps, piston pumps, and rotary vane pumps, this smart controller provides the users the freedom to start and leave their operation thanks to its smart features. Control technology, evaporation detection, and its intuitive graphical interface make vacuum controlling user-friendly for vacuum laboratory, rotary concentrators, parallel evaporators, desiccation, and distillation applications.

Specification
Vacuum range 1-1000mbar
Control operation mode Single-point control operation mode, program operation mode
Programable Can save up to 5 programs. Each program contains five-step control (vacuum degree and timer can be set).

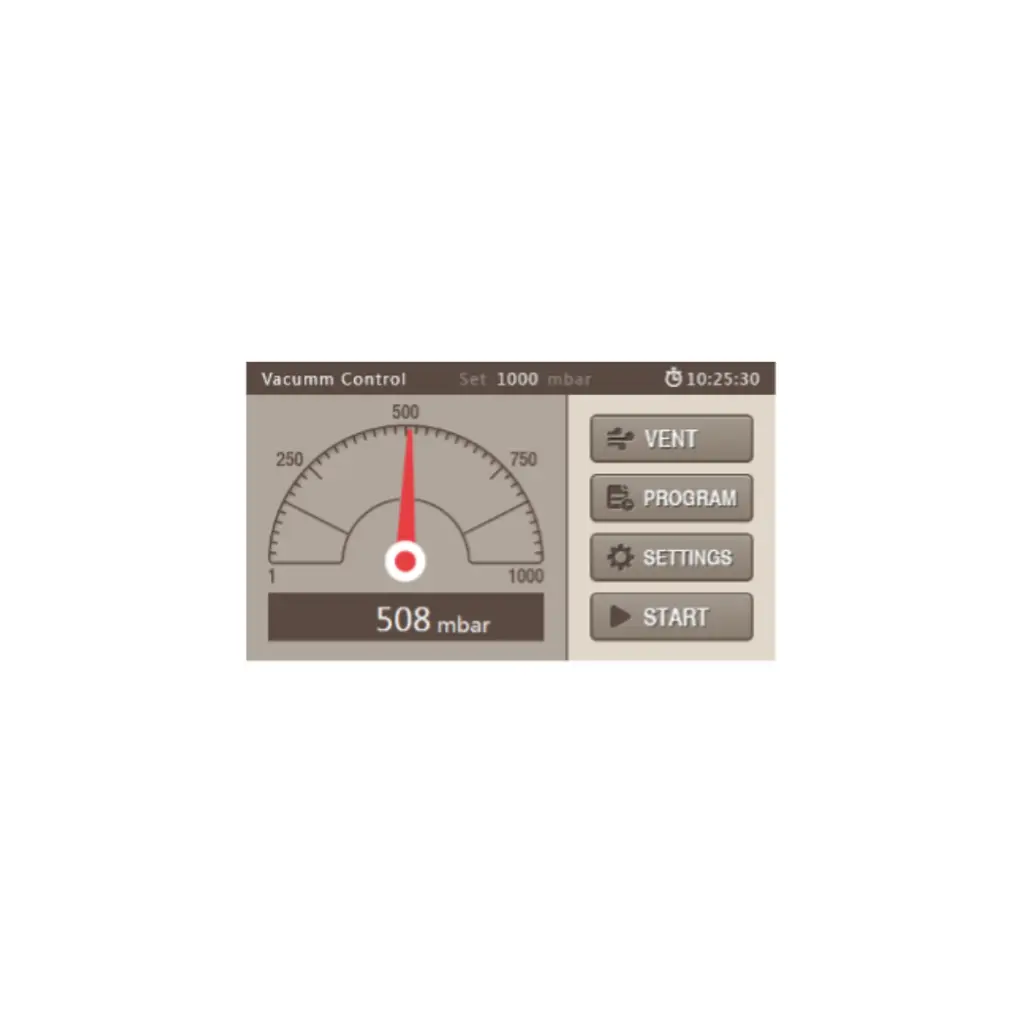

Display screen 5-inch TFT touch screen
Sensor overload pressure 1500mbar
Tube connection interface diameter 6.2mm
Materials in contact with steam PTFE, PP, silica gel and ceramics
Steam temperature 5℃-40℃
External dimensions WxDxH 189mm×207mm×193mm
Weight 9lbs
Input power supply AC110—240V, 50Hz/60Hz
Working temperature 10℃-40℃, ≤80%RH，(altitude does not exceed 2000 meters)
Input power 600W
Maximum output power 500W (220V), 300W(110V)

Additional Resources and Information

Downloadable PDFs


SCI100VC Benchtop Vacuum Controller Manual​
