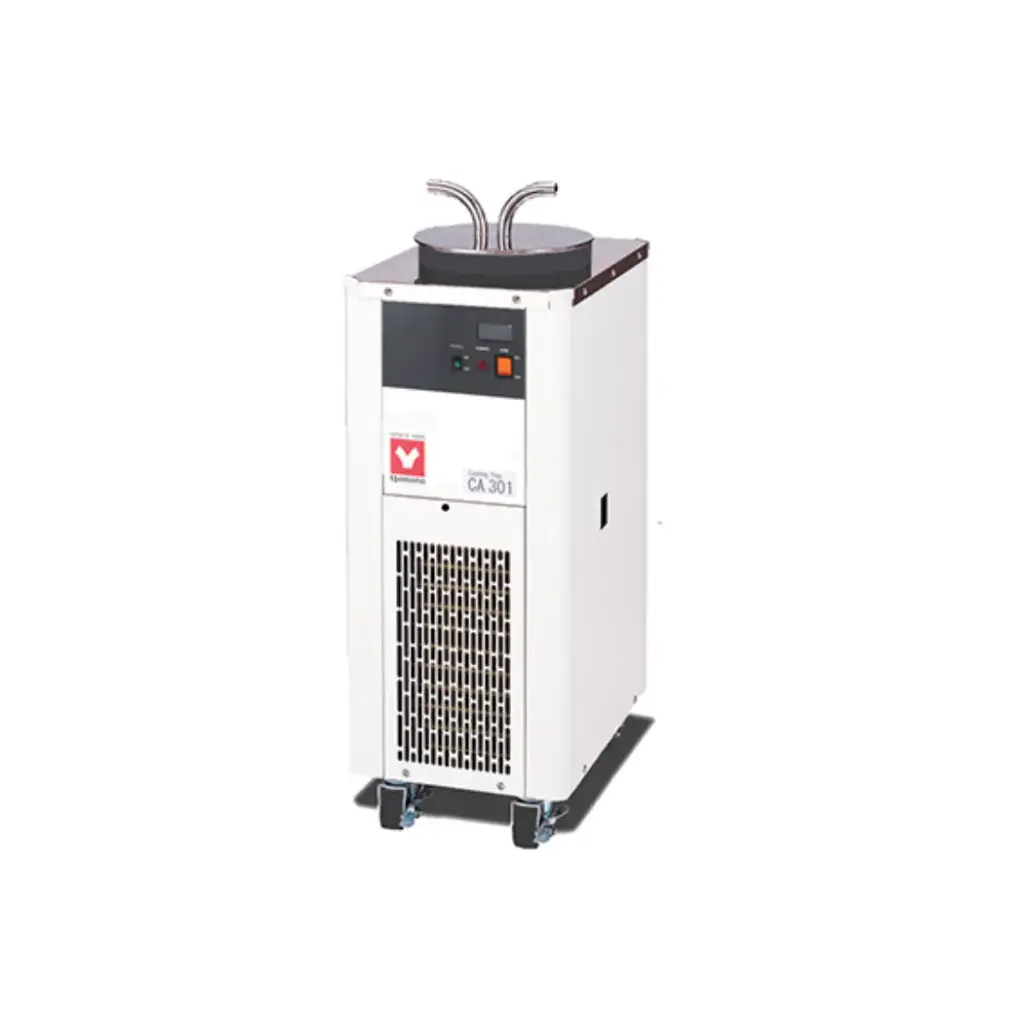

Yamato CA301 4L 115V Cold Trap

Efficiently traps water vapor and toxic substances discharged from vacuum oven and rotary evaporator to protect the vacuum pump

This combination does not exist.

Model: CA301-115V

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Features

Excellent choice to extract acid and organic solvents with the optional glass condenser
Efficiently reduces vapor inhalation amount to the vacuum pump
Can be used as a low temperature tank as well as pre-cooling tank
Utilizes R404A (CA301) and R600a and mixed coolants (CA801)
Space saving and highly mobile on wheels

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

MODEL	CA301-115V
Method	Direct trap or Glass trap (optional)
Dehumidifying Capacity	Max. 0.9kg (Water type liquid)
Max. Low Temperature	-45°C
Refrigerator	Air cooling, 400W
Refrigerant	R404A
Cooling Coil	ID ø90 mm SUS304
Lid	OD ø17.6 mm with nozzle, SUS304
Bath Shape / Material	Cylindrical / SUS304
Ambient Temperature Range	5~35°C
Temperature Display	7 segment LED
Temperature Sensor	Platinum resistance temperature detector Pt100Ω
Defrosting Mechanism	N/A
Safety Device	Electric leakage breaker with over current protection, refrigeration overload relay
Sink Dimensions	I.D.153 x H235 mm
Internal Capacity	~4L (Liquid 3L)
Power Source 50/60Hz	AC115V 4.3A AC220V 2.3A
External Dimension WxDxH	345x475x726 mm
Weight	~47kg
Included Accessories	-
