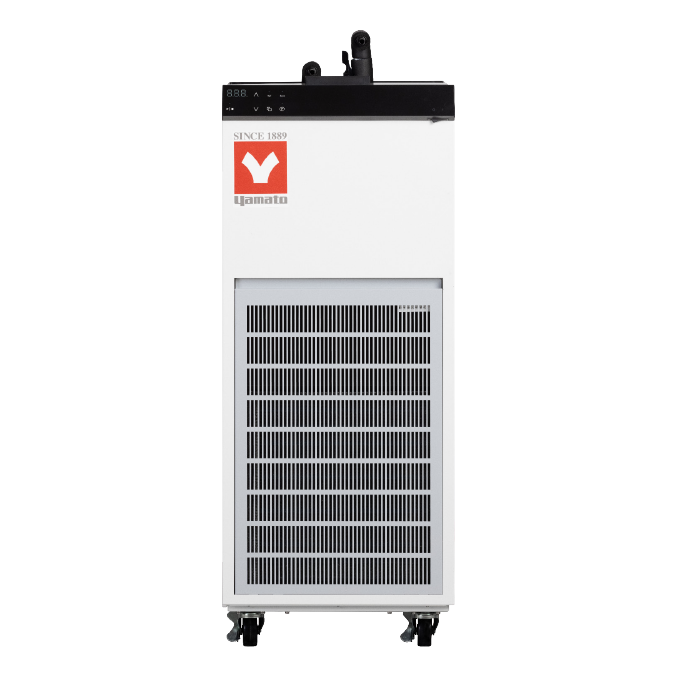

Yamato CF802A Refrigerated Water Circulator

Cat. No.
797059932191
https://www.scilogex.com/web/image/product.template/3603/image_1920?unique=d0b4a02
Powerful and water saving closed cooling system with excellent cooling capacity

$ 2,400.00 2400.0 USD $ 2,400.00 In stock

$ 1,865.00

Currently Out-of-Stock

  • Model

This combination does not exist.

Contact Us
Request a Quote
Model: CF802A



For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Share

Features

  • User-friendly controller
    Controller with high visibility and improved operability. Possible to switch between measured temperature and set temperature.
  • User-friendly controller
    Connection is completed by inserting a hard tube with 10 mm OD or flexible hose with 9mm ID. Connector can be freely moved and be set in the desired direction
  • Easy drainage of condensate water
    A condensation drain port is designed near the connector on the upper rear of the unit
  • Easy to clean intake filter
    Filter mounting plate located on the front of the unit can be easily removed when cleaning
  • Space-saving solvent recovery device stored in the main body as secondary trap (option for CF802A)
    Used to recover solvent gases remaining in the concentration recovery process
40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

CF302 Water Circulator Introduction

MODEL CF802A
Circulation Type Closed circulation / tap water, anti-freeze solution (over 10°C)
Operating Ambient Temp. Range 5 to 35°C
Temp. Setting Range *¹ -20°C ~ 30°C (no heating function)
Temp. Control Accuracy *² ±1.0 °C (≥ 0°C)
Temp. Fluctuation *² 3.0 °C (≥ 0°C)
Cooling Capacity (Liquid Temp) *² ~420W at 10°C
Max. Flow Rate *³ ~10L/min.
Max. Head *³ ~5.7m
Temperature Control Refrigerator on/off control
Temperature Sensor Pt100Ω
Controller White LED digital display, key entry, minimum digit of 1°C
Refrigeration System / Rated Performance Air cooling, 450W
Refrigerant R404A
Cooling Coil Copper/Nickel plating
External Circulation Connection Port Rear top panel, single line
One touch connector (swivel type, L type)
Flow rate valve
Safety Device Overcurrent ELCB, temp. sensor failure, temp. upper/lower limit alert, temp. upper/lower limit error, refrigerator high pressure cut off switch fan motor protection, circulation pump protection, delay timer for refrigerator protection, overcurrent protection fuse (service outlet) for CF802, refrigerator overload relay (CF802)
Other Functions Drain hose, condensate drain hose, Intake dust filter, cooling operation key, circulating pump key, calibration offset, auto resume function, service outlet (2A) for CF802
Water Bath Material Stainless Steel
Water Bath Capacity ~3.9L (Liquid volume 3.5L)
Power Source (50/60Hz) AC115V 15A with plug
External Dimension WxDxH (Including Protrusions) 340 × 370 × 838 mm
(340 × 408 × 920 mm)
Weight ~44kg
Included Accessories Condensation drain hose(1m)(1), Hose clamp (2), Hose nozzle (for flexible hose connection)(2), spare fuse for service outlet 2A (1) for CF802

*¹ Unit does not feature heating function. Depending on ambient temperature or connection conditions, temperature may not reach -20°C.

*² Performance based on 115V/220V supplied power and 20°C ambient temp. Temp. control accuracy and temp fluctuation are standards calculated accdg. to JTM K05 and JIS respectively.

*³ Pump performance based on tap water at 20°C
