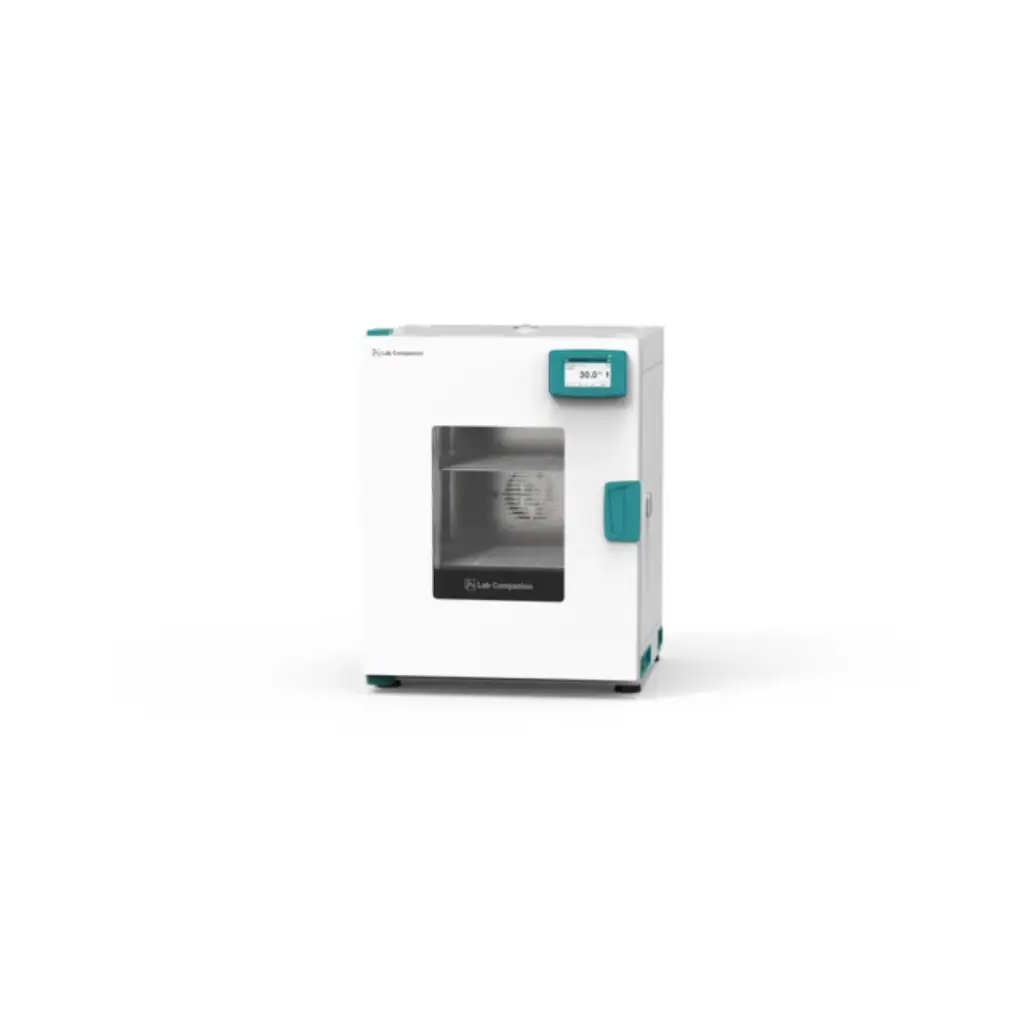

OF4-05VW 61L Advanced Foced Convection Oven with Window, 250°C

Wide touch-screen controller that provides the device information intuitively

• 5-Inch TFT touch controller that enables intuitive control of the device.
• Real-time graphs that allow users to view events and alarms at a glance so that the test progress can be easily and intuitively monitored.
• Auto 3 temperature recommendation based on operating history without any recording or storage.
• Wait on/Wait off timer setting allowing efficient test schedule management.
  Ramping rates (℃/min) flexibly adjustable for each test performed.

Structural and functional features for improved user convenience

• Opti-flow™, a function to flexibly adjust the fan speed according to the specimen type and test conditions.
• Stacking Kit (optional) ensuring the safe fitting of one unit to another, thus doubling the amount of work done in a given area for improved space efficiency.
• Hands-free™ door system to allow users to easily open the door while carrying samples with both hands.

Real-time monitoring to check status of device

• BMS communication port that helps monitor the device temperature on the building management system, enabling quick response in case of abnormality. (option)
  Monitor and control via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (option)

Convenient checking for the test progress and data

• RS-232/USB port and compatible software provided to enable easy device control and data management using PC.
• Test data is automatically saved and easily downloaded via USB;
  easy to edit and use. (in CSV format)
• 36 latest events, such as errors and door opened or closed, automatically recorded, helping user obtain feedback on experimental results.

Reliable temperature control performance based on stable control mechanisms

• Wide temperature range of up to 250℃.
• Three-point temperature calibration that ensures high temperature accuracy over a wide temperature range.
• Ramping rates (℃/min) flexibly adjustable for each test performed.
• Excellent temperature distribution through the formation of optimal airflow for uniform heat transfer.
  (±1.9℃ or below at 100℃)

Specifications

Chamber volume

61 liters/cubic feet

Temperature

Range:

• ℃: Amb. + 10~250
• ℉: Amb. + 18 ~ 482

Fluctuation at 100℃:

• ℃: ±0.3
• ℉: ±0.54

Variation at 100℃:

• ℃: ±1.9
• ℉: ±3.42

Heating time to 100℃: 10 minutes

Recovery time at 100℃: 4 minutes

Control Panel

5inch TFT Color LCD

Communication interface

• USB
• RS-232
• BMS

Function

• Recently event record: 36ea
• Fan speed adjustable: Three-step wind speed settings
• Recommended temperature: Three frequently used temperature settings suggested
• Graph: Available checking the stored and real-time data as graphs
• Data storage: Save the test data in CSV format
• Temp. ramping rate (℃/min. / ℉/min.): 0~9/0~16.2

Dimensions

Interior (W x D x H, mm/inch):

• 380 x 330 x 480
• 14.97 x 13.0 0x 18.90

Exterior (W x D x H, mm/inch):

• 558 x 648 x 684
• 21.97 X 25.51 X 26.93

Net weight

53 kilograms/pounds

Shelves

• Quantity of shelves (Standard/max.): 2/5
• Max. Load per shelf (kg/lbs): 30/66.1

Number of Air change per hour at 100 ℃

22

Electrical requirements

120V, 60Hz, A: 12.3
