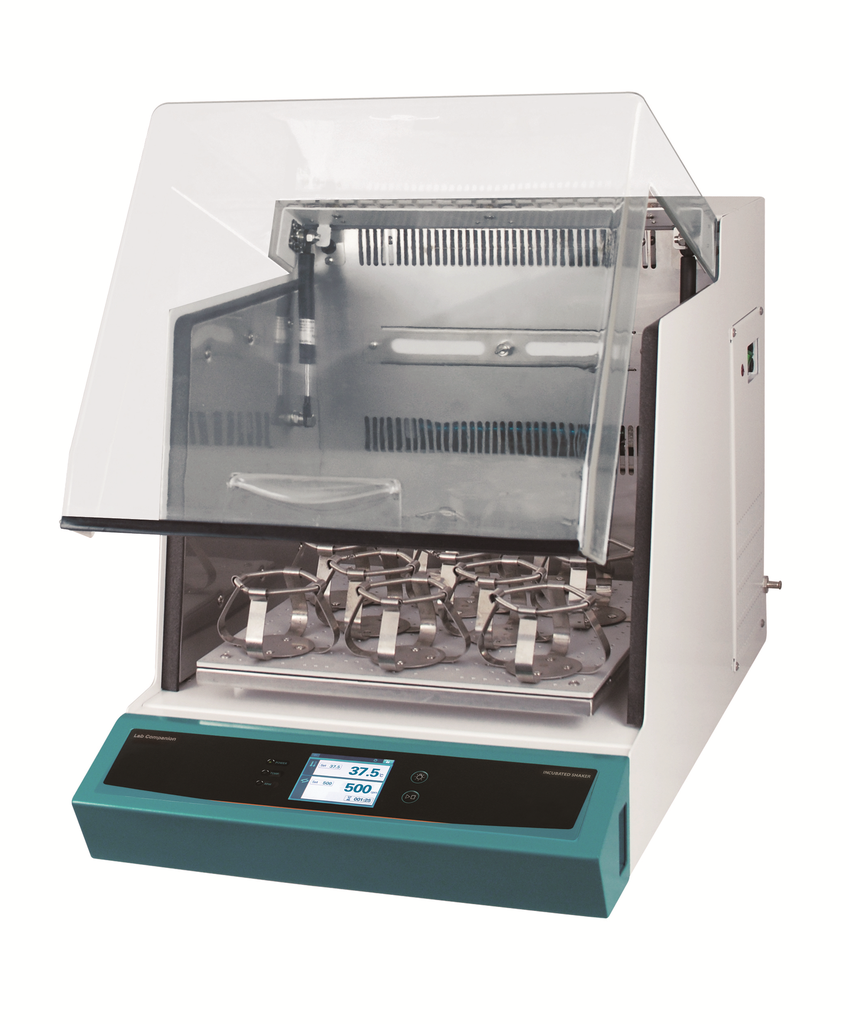

IST-3075 53L Shaker Incubator, 80°C, 500rpm

Structural Functional Features

• Model optimized for use on experiment bench.
• Up to 80°C, 500rpm enables setting of various experimental conditions.
• Three operating modes: Temperature & Shaking, Temperature, or Shaking.
• Door structure allows for easy sample removal/attach at the front.
• Shaking structure with minimized vibration.
• Four models according to refrigeration system and the size of the platform.

Use Convenience Features

• Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration.
• Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
  (when purchased LC GreenBox)
• Countdown timer (999 hours 59 minutes) of shaking operation.
• Intuitive operation with color touch display.
• High brightness / low-power LED illumination makes it easy to observe inside.
• Spill drain port for internal cleanliness and easy maintenance.

Outstanding Safety

• Over temperature limit function.
• Soft start and stop shaking function.
• Malfunction prevented by controller lock function.
• Displays all information such as device operation and error occurrence.
• Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible.

Smart Self-diagnosis

• Real-time self-diagnostics to check equipment for abnormal conditions.
• Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature.
• Automatic rpm adjustment when device instability occurs.
  (high rpm, overload, weight imbalance, etc.)
• Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
• Automatic restart as it was operated after power recovery.

Specification

•  Temperature:
  • Range (℃ / ℉): Amb. +5 to 80 / Amb. +9 to 176
  • Fluctuation at 37℃ (±℃ / ℉) in flask: 0.1 / 0.18
  • Variation at 37℃ (±℃ / ℉) in flask: 0.5 / 0.90
  • Refrigerator (Hp): –
• Shaking system:
  • Motion type: Orbital
  • Speed range (rpm): 20 to 500
  • Max. speed per permissible load (rpm):
    • 500 (max. 10 kg / 22.0 Ibs)
    • 400 (max. 15 kg / 33.1 Ibs)
  • Amplitude size (mm / inch, dia.): 19.1 / 0.75
  • Speed stability2): rpm, %) ±1
  • Timer (count-down): 999 hr 59 min.
• Dimension:
  • Chamber volume (L / cu ft): 53 / 1.9
  • Platform (W x D, mm / inch): 350 x 350 / 13.8 x 13.8
  • Interior (W x D x H, mm / inch): 410 x 410 x 320 / 16.1 x 16.1 x 12.6
  • Exterior (W x D x H, mm / inch): 440 x 785 x 510 / 17.3 x 30.9 x 20.1
• Net weight (Kg / lbs): 65 / 143.3
• Electrical requirements (120V, A): 60Hz, 7.5
