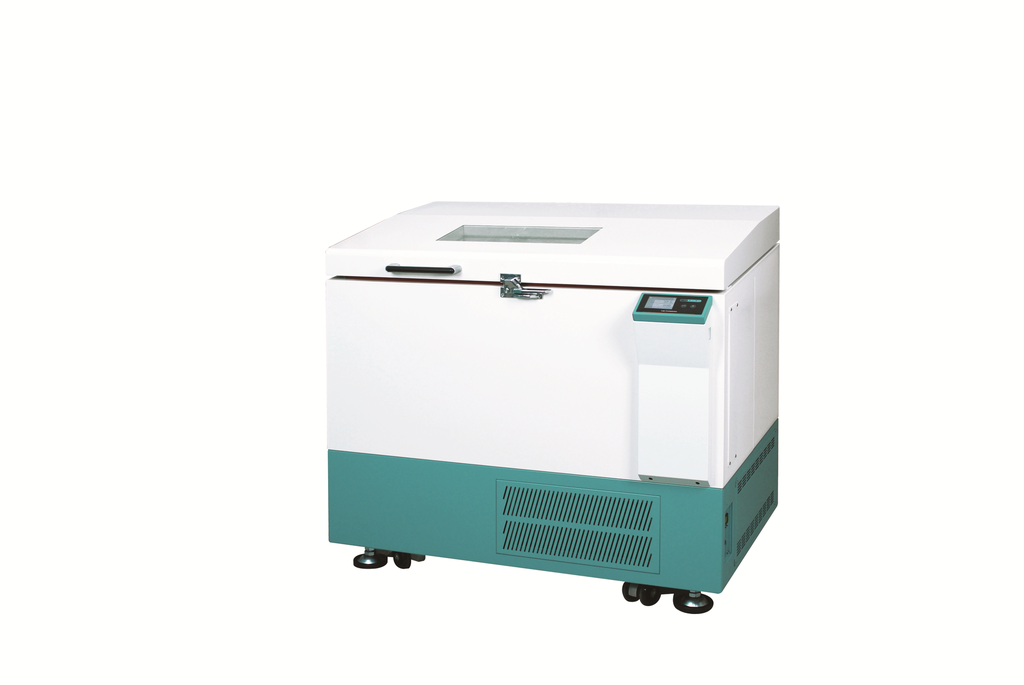

ISF-7200R Shaker Refrigerated Incubator, -20°C to 80°C, 500rpm, 50.8mm Orbital

Structural Functional Features

• Large-capacity incubated shaker model.
• Up to 80°C, 500rpm enables setting of various experimental conditions.
• It is convenient for attaching and detaching a large amount of sample because structure of door is lowering from the rear to the front. (registration: 30-2014-0060254)
• Three operating modes: Temperature & Shaking, Temperature, or Shaking.
• Easy to move/fix the product.
• Stable shaking of high-load samples.
  (patent registered: 10-1678160)

Use Convenience Features

• Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration.
• Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
  (when purchased LC GreenBox)
• Countdown timer (999 hours 59 minutes) of shaking operation.
• Spill drain port for internal cleanliness and easy maintenance.

Outstanding Safety

• Electronic over temperature protection system.
  (A-OT, advanced over temperature limiter)
• Independent precision temperature sensor and controller provides more secure and reliable over temperature protection.
• Conventional over-temperature protection system.
  (B-OT, backup over temperature limiter)
• A backup device against electronic system failure, mechanically preventing over temperature even when there are electronic errors.
• Soft start and stop shaking function.
• Malfunction prevented by controller lock function.
• Displays all information such as device operation and error occurrence.
• Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible.

Smart Self-diagnosis

• Real-time self-diagnostics to check equipment for abnormal conditions.
• Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature.
• Automatic rpm adjustment when device instability occurs. (high rpm, overload, weight imbalance, etc.)
• Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
• Automatic restart as it was operated after power recovery.

Specification

•  Temperature:
  • Range (℃ / ℉): Amb. -20 (Min. 4) to 80 / Amb. -36 (Min. 7.2) to 176
  • Fluctuation at 37℃ (±℃ / ℉) in flask: 0.1 / 0.18
  • Variation at 37℃ (±℃ / ℉) in flask: 0.5 / 0.90
  • Refrigerator (Hp): 1/6
• Shaking system:
  • Motion type: Orbital
  • Speed range (rpm): 30 to 300
  • Max. speed per permissible load (rpm):
    • 300 (max. 20 kg / 44.1 Ibs)
    • 200 (max. 35 kg / 77.2 Ibs)
  • Amplitude size (mm / inch, dia.): 50.8 / 2
  • Speed stability2): rpm, %) ±1
  • Timer (count-down): 999 hr 59 min.
• Dimension:
  • Chamber volume (L / cu ft): 270 / 9.5
  • Platform (W x D, mm / inch): 755 x 520 / 29.7 x 20.5
  • Interior (W x D x H, mm / inch): 894 x 634 x 480 / 35.2 x 25 x 18.9
  • Exterior (W x D x H, mm / inch): 1128 x 854 x 1035 / 44.4 x 33.6 x 40.8
  • Net weight (Kg / lbs): 287 / 632.7
• Electrical requirements (120V, A): 60Hz, 10
