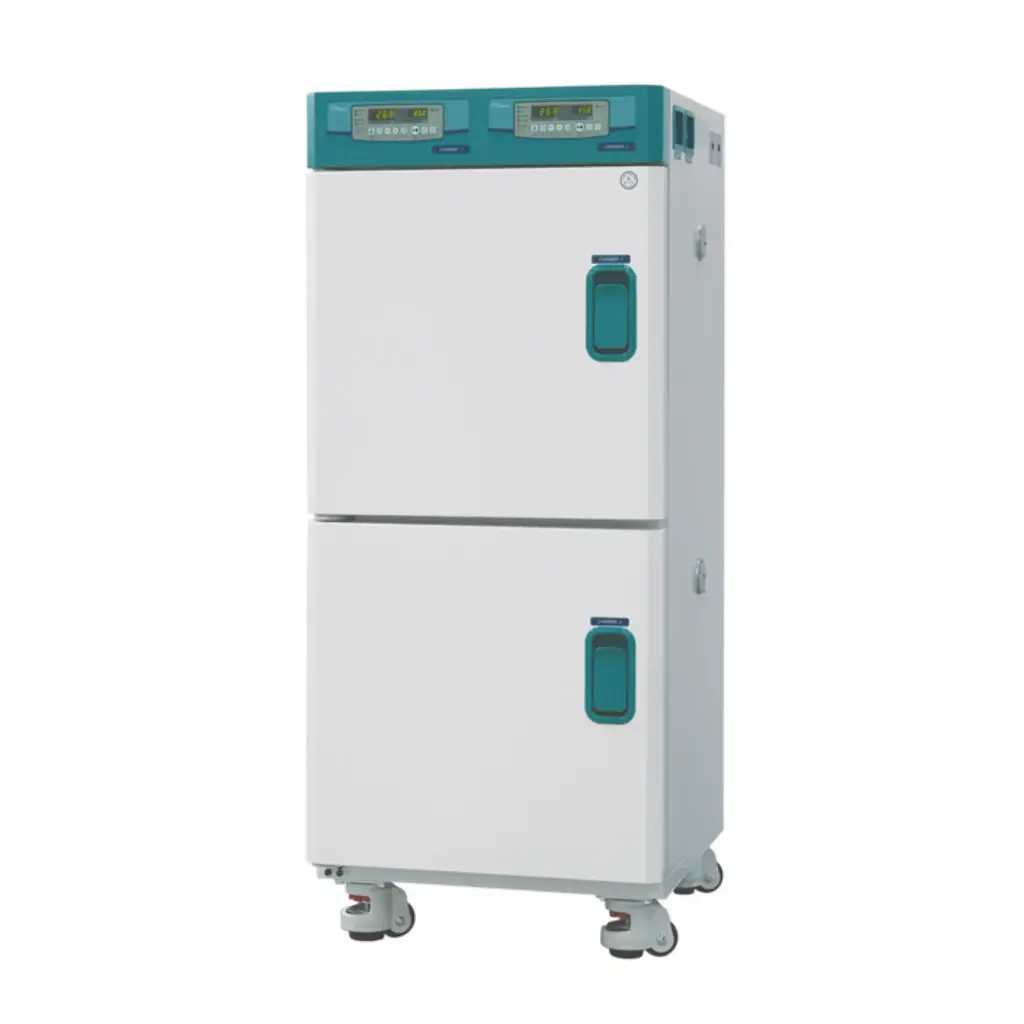

IB-02G-2C 2-Chamber Incubator, 70°C

Structural Functional Features

• 2 / 4 chambers can be controlled independently.
• Easy to use with maximally space-efficient structure.
• Structure that circulates internal air for temperature control.
• Easy to open and close the door. Soft handle minimizes shock to the sample.
• Stainless steel interior and shelves are excellent in terms of corrosion resistance and clean maintenance.
• Easy to clean as inner edges are curved.
• Useful cable port and cover on the side.
• Equipped with easy-to-move/install caster.

Use Convenience Features

• Accurate temperature control through temperature calibration and microprocessor PID.
• Save and use 3 frequently used temperatures.
• Wait On/Off timer. (up to 99 hours 59 minutes)
• Mal-operation prevented by controller lock function.
• Over temperature limit function.
• Alarm function when temperature sensor is disconnected.
• Provides notification/alarms when the door is open for an extended period of time.

Specification

• Chamber volume (L / cu ft): 60 / 2.1 x 2 chambers
• Temperature:
  • Range (℃ / ℉): Amb. +5 to 70 / Amb. +9 to 158
  • Fluctuation at 37℃ (±℃ / ℉): 0.1 / 0.18
  • Variation at 37℃ (±℃ / ℉): 0.6 / 1.08
• Dimension:
  • Interior (W x D x H, mm / inch): 400 x 360 x 420 / 15.7 x 14.2 x 16.5 x 2 chambers
  • Exterior (W x D x H, mm / inch): 1170 x 640 x 1360 / 46.1 x 25.2 x 53.5
• No. of wire shelf (standard/max) : 2/7 per chamber
• Net weight (Kg / lbs): 168 / 370.4
• Electrical requirements (120V, 60Hz, A): 7.5
