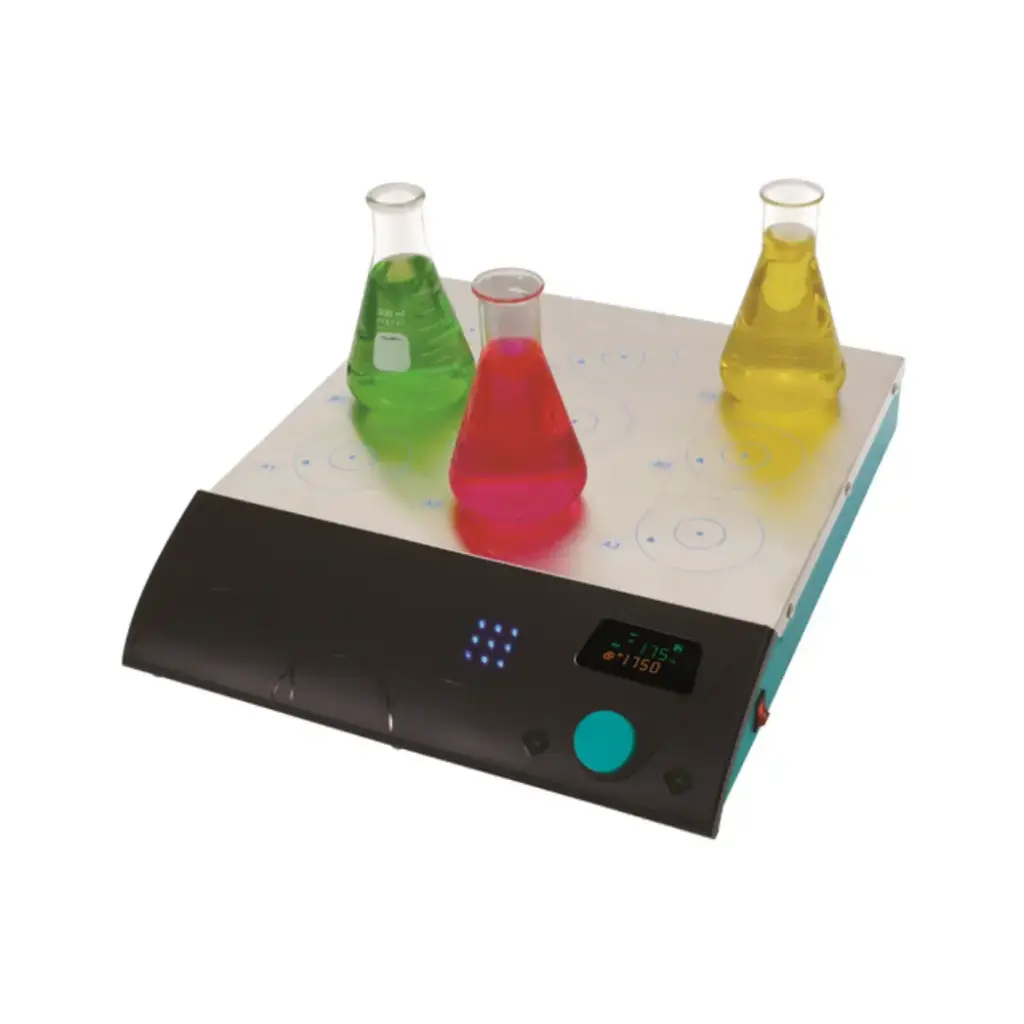

MS-33M Digital 9-Place Magnetic Stirrer 30-2000rpm

Structural Functional Features

• Maintains accurate speed with feedback control even when sample
  viscosity and amount change.
• Display of stirring position on the upper part of the stainless steel.
• Using special permanent magnets for maintaining stirring ability.

Use Convenience Features

• Simultaneous display of set speed and actual speed.
• Count-down timer provided. (up to 99 hours and 59 minutes)
• Six models provided according to the quantity and size of stirring.

Outstanding Safety

• Safety ensured by BLDC motor that does not generate sparks.
• Spill-proof design minimizes inflow solution into device.
• Prevents samples splash with smooth operation at the start and stop of stirring.
• Silicon pad (option) to prevent slip-related accidents of glassware.

Differentiated Multi Control

• Four kinds of stirring control methods and timer function allow for performance of various stirring experiments simultaneously.
• (MS-51M has two control methods.)
• Display LED point window for easy setting and confirmation.

All Modes

• Simultaneous stirring with same speed.
• Column Mode
• Stirring with different speeds for each column.
• Row Mode
• Stirring with different speeds for each row.
• Point Mode
• Stirring with different speeds for each point.

Specifications

Stirring:

• Speed range (rpm): 30 to 2000
• Capacity per point at 2000rpm (H2O, mL): 250
• Operating mode: 4 (All, Column, Row, Point)
• Postion (Row x Column): 9 (3 x 3)
• Point distance (W x D, mm / inch): 117 x 90 / 4.61 x 3.54
• Magnetic bar , Max. (L x Ø, mm / inch): 30 x 8 / 1.18 x 0.31
• Load, Max. (kg / lbs): 30 / 66.14

Materials:

• Top plate: Stainless steel
• Body: Powder coated steel, PET
• Motor type: BLDC (Brushless Direct Current)

Dimensions:

• Top plate (Ø or W x D, mm / inch): 362 x 318 / 14.25 x 12.52
• Exterior (W x D x H, mm / inch): 344 x 436 x 81 / 13.54 x 17.16 x 3.19
• Net weight (kg / lbs): 7 / 15.43

Timer:

• Max. 99 hrs 59 min.

Electrical requirements:

• AC 100 ~ 240V, 50 / 60Hz
• Power consumption (W): 54
