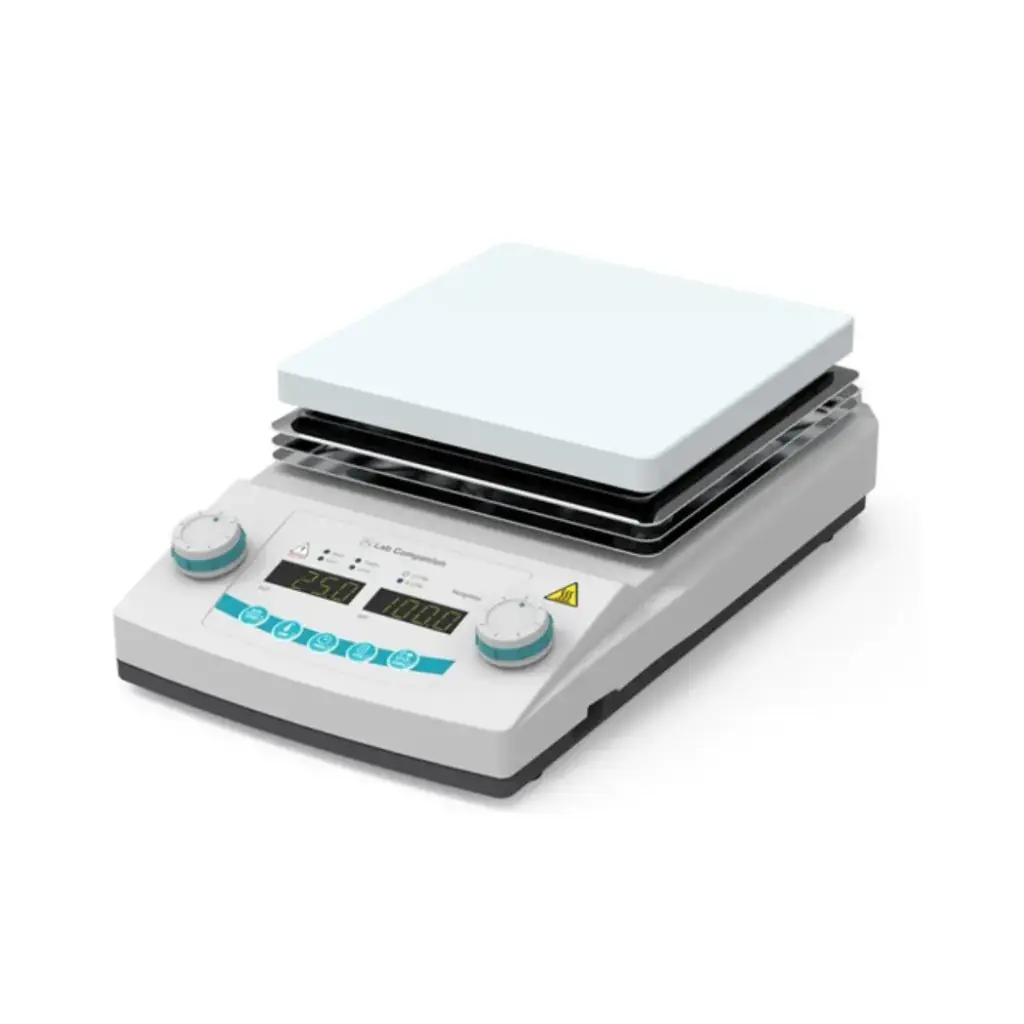

TS-18QG 20L Square-top Digital Hotplate Stirrer 30-350°C/2000rpm Max.

Structural Functional Features

• Includes temperature probe (B class) as standard.
• Displays external temperature sensor errors.
• Top plate coated with white ceramic for excellent corrosion resistance.
• Excellent heat transfer and durability due to heater-integrated structure.
• Using special permanent magnets for maintaining stirring ability.

Use Convenience Features

• Precise temperature/stirring control with PID feedback control.
• Temperature control mode selection function.
• (Optimal/Fast/Slow/User/Point)
• Includes temperature auto-tuning and calibration functions.
• Count-down timer provided. (up to 99 hours and 59 minutes)
• Clamp Rod (option) can be added to the main body fix other experiment equipment.
• Convenient experiment observation with removable transparent shield. (option)

Outstanding Safety

• Spill-proof design minimizes inflow solution into device.
• Safety ensured by BLDC motor that does not generate sparks.
• Preventing equipment failure with multiple over temperature prevention devices.
• Warning displayed when top plate is 50°C or more.
• Prevents sample run-off thanks to smooth stirring start.

• The heating bath (option) is combined with the top plate to ensure safety. (except TS-Q)

Specifications

Heating:

• Temperature range (℃ /℉): Top plate, Max, 350 / 662
• Control mode: PID Feedback (optimal, fast, slow)
• Display resolution (℃ /℉): 0.1 / 32.18

Stirring:

• Speed range (rpm): 30 to 2000
• Capacity (H2O, L): 20
• Magnetic bar , Max. (L x Ø, mm / inch): 40 x 8 / 0.31 x 1.57

Material:

• Top plate: White ceramic coated aluminum alloy
• Body: Powder coated aluminium alloy
• Motor type: BLDC (Brushless Direct Current)
• Temperature probe: PT 100 (B class, Max. 250℃ ,482℉)

Dimension:

• Top plate (Ø or W x D, mm / inch): 180 x 180 / 7.08 x 7.08
• Exterior (W x D x H, mm / inch): 209 x 326 x 102 / 8.22 x 12.83 x 4.0
• Net weight (kg / lbs): 3.8 / 8.36

Timer:

• Max. 99 hrs 59 min.

Electrical requirements:

• 120V, 60Hz, A:  6.7
