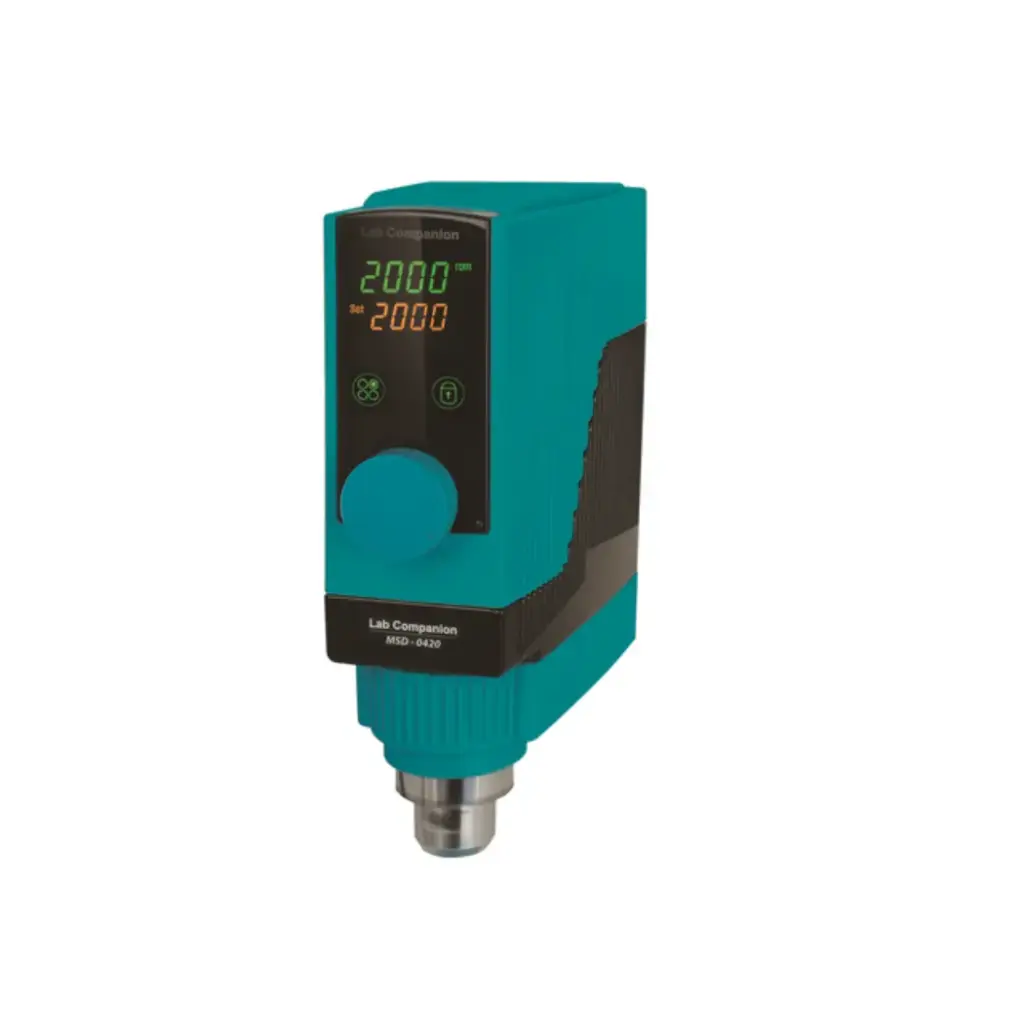

MSD-0420 (20L) Digital Overhead Stirrer 80-2000rpm

Structural Functional Features

• Possible for user to select clockwise (CW) / counter clock wise. (CCW)
• Slim & compact design.
• Convenient adjustment of height with pass-through impeller shaft.
• Chuck with excellent corrosion resistance. (Max Ø10 mm)

Use Convenience Features

• Best effort function to maintain maximum set rpm by monitoring sample viscosity changes in real time. (application 10-2014-0124899)
• Accurate stirring with PID feedback control.
• Operating elapsed time display function.
• Machine operation and data management with USB connection.
• Complete with accessories such as impeller, stand, clamp, etc.

Outstanding Safety

• Safety ensured by BLDC motor that does not generate sparks.
• Excellent heat dissipation structure makes use for a long time without any trouble.
• Continual use in safe by over temperature and overload protection.
• Malfunction prevented by controller lock function.
• Prevents sample run-off by smooth stirring start and stop function.

Specifications

Speed range: 80 to 2000 rpm

Viscosity, max. (cP) 1):

• 5000 (~2000rpm)
• 10000 (~1200rpm)
• 30000 (~ 300rpm)
• 50000 (~ 200rpm)

Stirring capacity (H2O), max. (L / cu ft):

• 20 / 0.71 (~2000rpm)

Rated torque (N,cm / inch):

• 19 / 7.48

Motor input / output (W):

• 70 / 40

Speed control: PID feedback control

Material

• Body: Powder coated aluminum
• Cover: Polypropylene
• Motor type: BLDC (Brushless Direct Current)

Dimension

• Chuck range (Ø, mm / inch): 3~10 / 0.12~0.39
• Exterior (W x L x H) (mm / inch): 75 x 215 x 150 / 2.95 x 8.46 x 5.9
• Net weight (kg / lbs): 2.8 / 6.17
• Electrical requirements (120V/60Hz, A): 0.5
