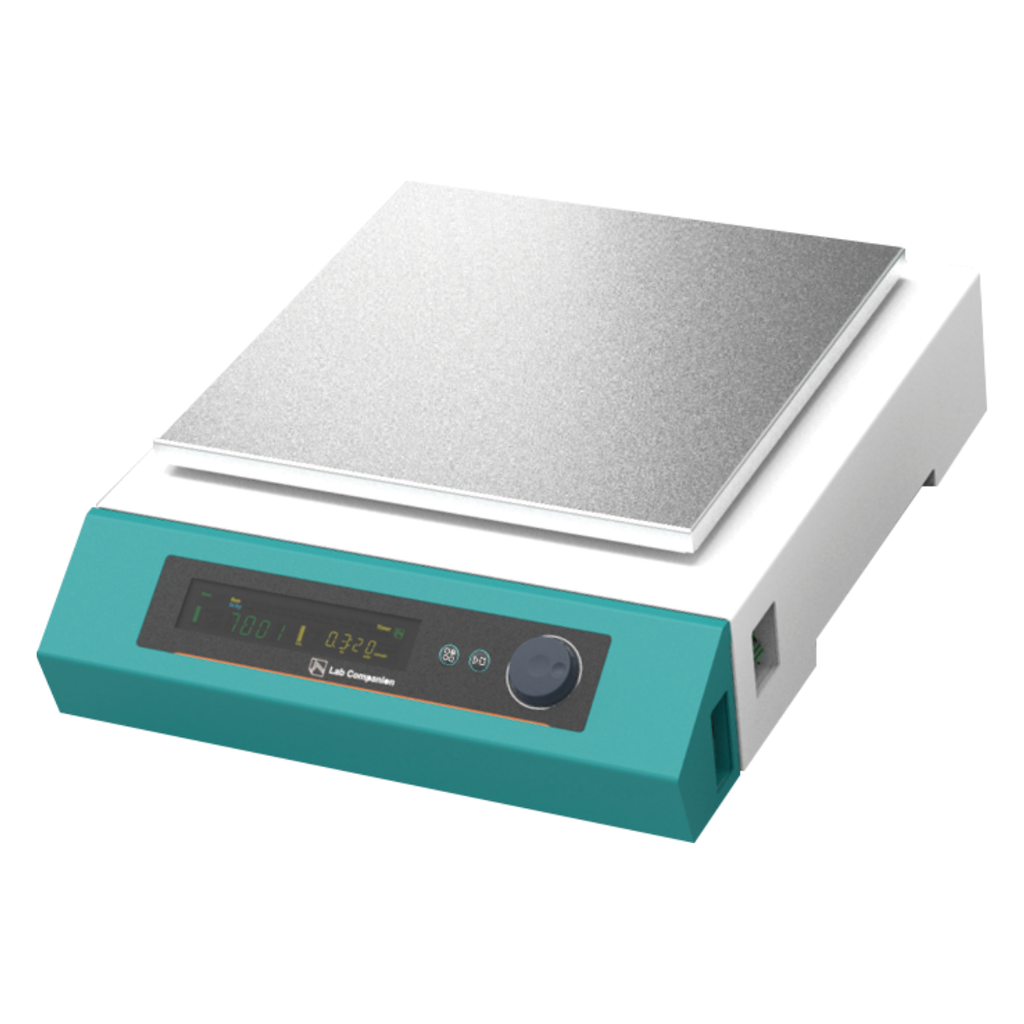

OS-3000 20-500rpm Orbital Shaker, max load 18kg

Structural Functional Features

• World Class, up to 500rpm.
• OS-2000, 3000, and 4000 models application of BLDC motor & belt system selectable rotational/reciprocal motion.
• Compact and powerful shaking.
  OS-7000 model
• Application of DD motor & triple cam system stable shaking ability (registration: 10-1678160)
• Stable shaking with low center of gravity structure.
• Powder coating applied to outer surface for reinforced corrosion resistance.
• Structure prevents the sample from flowing into the inside.

Use Convenience Features

• Accurate shaking with PID feedback control.
• Precision control with rpm calibration function.
• Count-down timer. (up to 999 hours and 59 minutes)
• Intuitive and useful real-time rpm changes.
• Soft start and stop shaking function.
• Monitor via mobile app anytime, anywhere with LC Connected.
  (mobile monitoring system) (when purchased LC GreenBox)
• Soft start and stop shaking function.
• The user can select a clockwise / counterclockwise rotation
• Usable when ambient temperature is at least 4°C.
• Various accessories depending on sample containers.
• Possible to stop the equipment at the same position.

Smart Self-diagnosis

• Real-time self-diagnostics to check equipment for abnormal conditions
• Alarm from monitoring actual rpm error relative to the set rpm.
• When device instability occurs.
  (high rpm, overload, weight imbalance, etc.)
• Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
• Automatic restart in the event of sudden power loss.

Optimized Rational Model Configuration

• Wide range of models from small to large type.
• 10 – 500 rpm for all applications.
• Applies four different shaking diameters. (amplitudes)
• Provides four sizes of platform models.
• Dual Action model. (rotational/reciprocal motion)
• Accessories for shared use.

Specification

• Shaking system:
  • Motion type: Orbital / Reciprocal
  • Speed range (rpm): 20 to 500
  • Max. speed per permissible load¹: 500rpm (max. 10kg) 300rpm (max. 18kg)
  • Amplitude size (mm / inch, dia.): 19.1 / 0.8 (25.4 / 1 available)
  • Speed stability² (rpm, %): 1
  • Timer (count-down): 999hr 59min
• Dimension:
  • Platform (W x D, mm / inch): 350 x 350 / 13.8 x 13.8
  • Body¹ (W x D x H, mm / inch): 409 x 508 x 141 /16.1 x 20 x 5.6
• Net weight (Kg / lbs): 28 / 61.7
• Electrical requirements (120V, 50 / 60Hz): 0.6A
