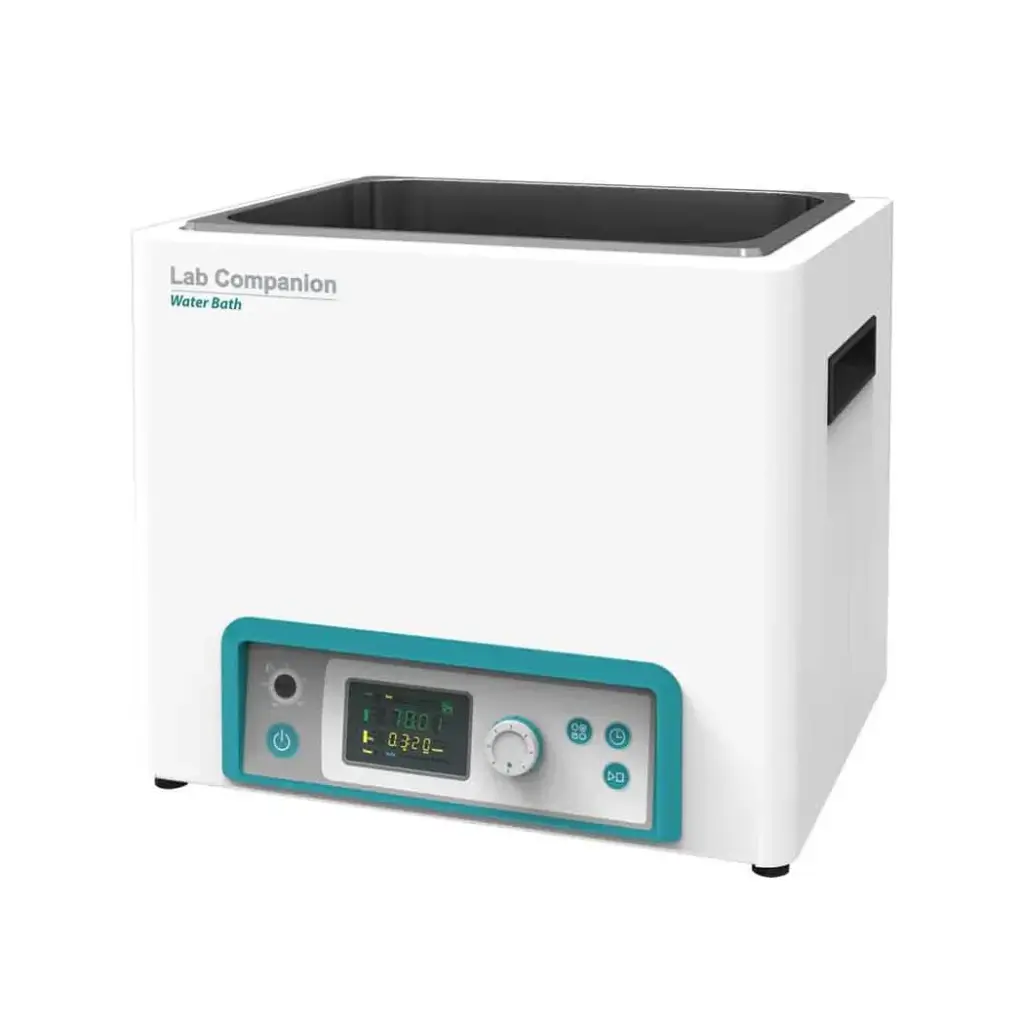

BW3-05G 3.5L Digital Water Bath, 100°C

Structural Functional Features

• Drain valve for easy draining of bath solution.
  (except for BW3-05G model)
• Convenient structure for sample handling with device control part located on the inside.
• Convenient for carrying and moving with handles on the left and right sides.
• The internal bath is integral structure. It is made of stainless steel and has excellent durability.
• Compact design for excellent space utilization.

Use Convenience Features

• Clear VFD panel for clear information display.
• Microprocessor PID method for precise temperature control.
• Optimized temperature control with temperature auto-tuning.
• 3-point calibration function minimizes temperature difference.
• Wait On/Off timer. (up to 99 hours 59 minutes)
• Save and use 3 frequently used temperatures.
• Automatic restart of operation when power is restored after sudden power failure.

Outstanding Safety

• Top-rated overheating prevention system.
  (registration 10-0397583)
• Over temperature limit function.
• Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.
• Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.
  Malfunction prevented by controller lock function.

Specification

• Bath volume (L / cu ft) 3.5 / 0.1
• Temperature
  - Working temp. range (℃ / ℉) Amb. +7 to 100 / Amb. +12.6 to 212
  - Temp. stability at 50℃ (±℃ / ℉) 0.4 / 0.72
  - Heat up time to 70℃ (min) 34
• Dimension
  - Bath opening / depth (W x L, D) (mm / inch) 240 x 136, 150 / 9.4 x 5.4, 5.9
  - Exterior (W x L x H) (mm / inch) 307 x 200 x 264 / 12.1 x 7.9 x 10.4
• Net weight (kg / lbs) 6.5 / 14.3
• Electrical requirements (120V, 60Hz, A) 5.8
