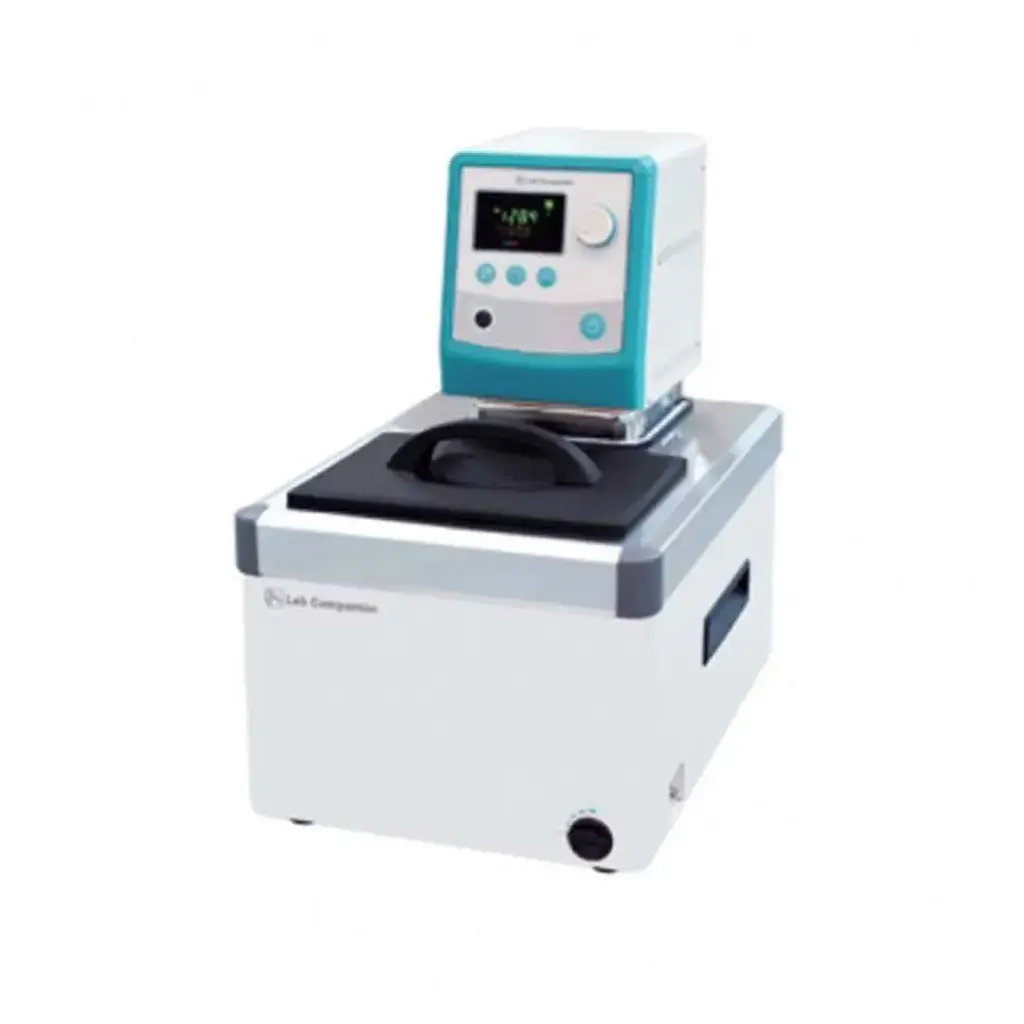

CW3-20 20L Circulating Bath, 150°C

General Type Features

• Alert function when deviation from control temperature upper limit and lower limit occurs.
• Easy and convenient to use with simple operation.
• Clear VFD panel for clear information display.
• Convenient drain valve structure on the front panel.
• Built-in USB connection and dedicated software.

Structural Functional Features

• Minimizes evaporation of internal solution at high temperatures and low-heat conductivity bath cover is provided as standard.
• Minimized usage space with compact design.
• Excellent durability even at high temperatures and repeated us.
• Internal circulation and internal/external circulation of solution.
• Easy to move and manage with the body handle.
• Stainless steel material inside and at the top of the bath is excellent in terms of corrosion resistance and clean maintenance.
• Drain valve for easy draining of bath solution.
• Includes rubber feet for stable product operation.
• 5-steps pump speed adjustment with simple operation.

Outstanding Safety

• Top-rated overheating protection system. (Registration KR 10-0397583)
• Over temperature limiting function.
• Prevention of mal-operation with controller lock function.
• Check and alert of temperature sensor abnormality.
• If an error occurs during operation, the details of the error are displayed on the screen and an alarm is sounded.
• Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.

Use Convenience Features

• Temperature calibration of up to 3 points provides more reliable temperature control.
• Optimized control with auto-tuning.
• Save and use 3 frequently used temperatures.
• Wait On/Off timer. (up to 999 hours 59 minutes)
• Microprocessor PID method for precise temperature control.
• Convenient remote control and data management through built-in dedicated software.
• Notification of low solution. (low level limiter)
• Automatic restart of operation when power is restored after power failure.
• Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
  (when purchased LC GreenBox)

Specification

• Bath volume (L / cu ft) 20 / 0.7
• Temperature
  - Working temp. range (℃ / ℉) Amb. +10 to 150 / Amb. +18 to 302
  - Temp. stability (±℃ / ℉) 0.05 / 0.09
  - Heat up time to 70℃ / 158 ℉ (min) 43
• Dimension
  - Bath opening / depth (W x L, D) (mm / inch) 290 x 214 x 200 / 11.4 x 8.4 x 7.9
  - Exterior (W x L x H) (mm / inch) 368 x 510 x 464 / 14.5 x 20.1 x 18.3
• Net weight (kg / lbs) 17.5 / 38.6
• Electrical requirements (120V, 60Hz, A) 8.6A
