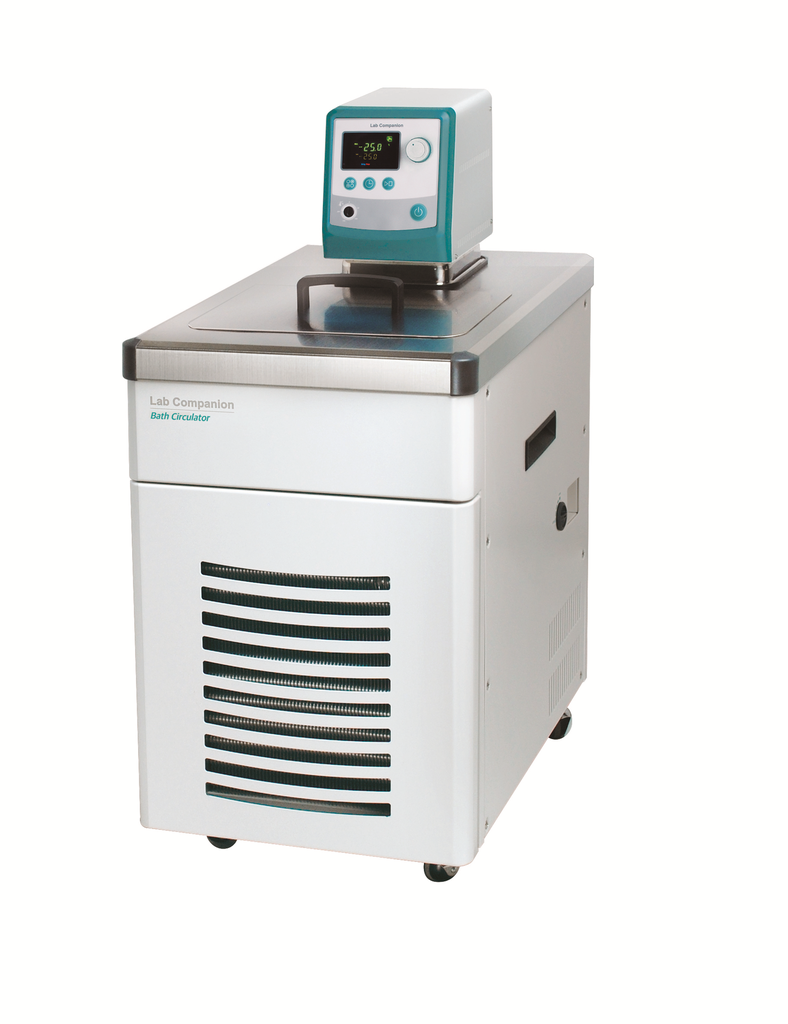

RW3-1025 10L Refrigerated/Heated Circulating Bath, -25°C to 150°C

General Type

• Alert function when deviation from control temperature upper limit and lower limit occurs.
• Easy and convenient to use with simple operation.
• Clear VFD panel for clear information display.
• Applies smart refrigeration system using Lab Companion’s technology.
• Optimized control reduces overall power consumption.
• Easily removable condenser grill structure.
• Equipped with advanced filter with flat plate structure. in refrigeration condenser.
• Compact structure design.

Structural Functional Features

• Internal circulation and internal/external circulation of solution.
• Refrigerator stopped automatically when it rises too high of temperature, saving power, extending freezer life, and reducing noise generation.
• High-efficiency refrigeration through application of electronic expansion valve.
• Built-in bath cover with handle.
• Internal bath with seamless integral structure.
  (except RW3-3025, 3035 models)
• Stainless steel material inside and at the top of the bath is excellent in terms of corrosion resistance and clean maintenance.
• Left and right handles for convenient handling.
• Drain valve for easy draining of bath solution.
• Easy-to-clean refrigerator condenser filter.
• Equipped with easy-to-move/install caster.
• 8 models provided according to temperature range, capacity, etc.
• 5-steps pump speed adjustment with simple operation.

Outstanding Safety

• Top-rated overheating protection system.
  (Registration KR 10-0397583)
• Over temperature limiting function.
• Prevention of mal-operation with controller lock function.
• Check and alert of temperature sensor abnormality.
• If an error occurs during operation, the details of the error are displayed on the screen and an alarm is sounded.
• Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.

Use Convenience Features

• Temperature calibration of up to 3 points provides more reliable temperature control.
• Optimized control with auto-tuning.
• Save and use 3 frequently used temperatures.
• Wait On/Off timer. (up to 999 hours 59 minutes)
• Microprocessor PID method for precise temperature control.
• USB/RS-232 connection and software provide convenient computer operation and data management.
• Notification of low solution. (low level limiter)
• Automatic restart of operation when power is restored after power failure.
• Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
  (when purchased LC GreenBox)

Specification

• Bath volume (L / cu ft): 10 / 0.4
• Temperature:
  • Working temp. range (℃ / ℉): -25 to 150 / -13 to 302
  • Temp. stability1): 0.05 / 0.09
  • Cooling capacity:
    • at +20℃ (+68℉), W: 560
    • at 0℃ (+32℉), W: 360
    • at -20℃ (-4℉), W: 180
• Dimension:
  • Bath opening / depth (W x L, D) (mm / inch): 211 x 154 x 180 / 8.3 x 6.1 x 7.1
  • Exterior (W x L x H) (mm / inch): 366 x 532 x 780 / 14.4 x 20.9 x 30.7
• Net weight (kg / lbs): 44 / 97
• Electrical requirements (120V, 60Hz, A): 12.6
