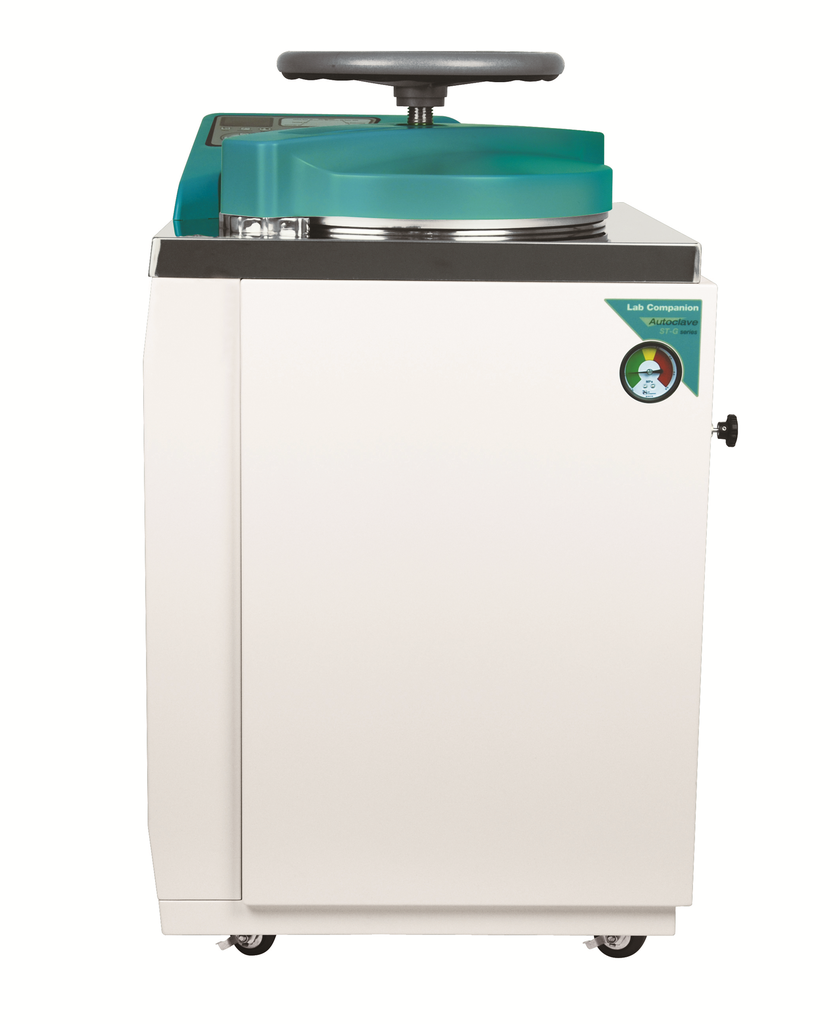

ST-65G 65L Vertical Autoclave, 120°C, 1.2 bar

Performance

• Microprocessor controller and temperature calibration function allows for high precision temperature control.
  - Sterilization temperature at 110 to 123°C
  - Melting* temperature at 60 to 100°C
  * Liquefaction of coagulated agar media.
• Optimized usage mode provided
  - General mode : Set sterilization conditions manually
  - Standard mode : Decontamination, solid sterilization, liquid sterilization, melting
  - Program mode : Record mainly used settings
• Conveniently monitored by an independent control display, sterilization process display, and pressure gauge.
  - VFD for visualization of temp, pressure(optional), timer, warning alert checks.
  - LED lamps for sterilization process check.
  - Easy pressure check with the standard gauge attached to the front.

Vertical type allowing high volume sterilization.

• Low-maintenance
  - The chamber is constructed of stainless steel which is superiorly resistant to corrosion.
  - Easy to replace silicone gasket.
• Safety Protections
  - Over current protection.
  - Over temperature protection by automatic power cutoff.
  - Over pressure protection by automatic and manual safety valve.
  - Over temperature warning.
  - Low temperature warning.
  - Low water level warning.
  - Low heat warning if the temperature does not reach the setting value.
  - Sterilization fail warning if the operation is unexpectedly stopped in the middle.
  - Slide-opening door with plastic cover of low thermal conductivity prevents burns from the contact.

Specification

• Temperature
  - Sterilization (℃ / ℉): 110 to 123 / 230 to 253.4
  - Melting (℃ / ℉): 60 to 100 / 140 to 212
• Pressure
  - Sterilization at 121℃ (kg / cm2): 1.1 to 1.2
  - Gauge range in analog (Mpa): -0.1 to 0.6
• Dimensions
  - Volume (L / cu ft): 65 / 2.29
  - Internal (Ø x H, mm / inch): 400 x 558 / 15.75 x 21.97
  - External (W x D x H, mm / inch): 624 x 672 x 971 / 24.57 x 26.46 x 38.23
  - External with Exhaust Tank (W x D x H, mm / inch): 722 x 672 x 971 / 28.42 x 26.46 x 38.23
  - Door Max. Opening (W x D x H, mm / inch): 1012 x 672 x 983 / 39.84 x 26.46 x 38.7
  - Basket (Ø x H, mm / inch): 380 x 230 / 14.96 x 9.05
  - Net weight (kg / lbs): 99.5 / 219.36
• Electrical requirements (230V, 50/60Hz (A)): 14.3
• Plug Information: 230V, NEMA 6-20 plug (Requires special outlet, not compatible with standard US 120V outlets.)
• Permissible Altitude: Operates at altitudes up to 800 meters (2600 feet).
