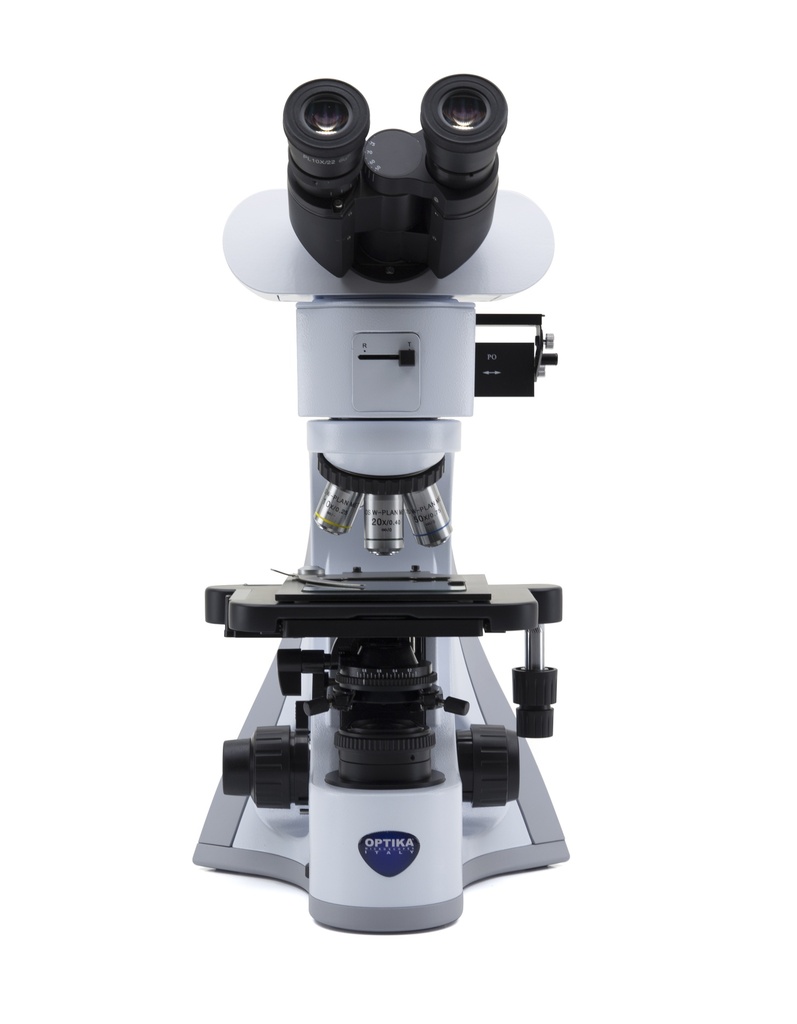

B-510 Trinocular metallurgical microscope, 500x, IOS PLAN MET, Incident & Transmitted light

Specifications

Observation mode: Brightfield on transmitted light. Brightfield, simple polarized light, oblique illumination on incident light.

Epi-illumination and polarizing filters: X-LED8 with white 8 W LED (6.300 K) with brightness control. With aperture and field diaphragms, and oblique illumination system. With polarizer and analyzer.

Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.

Interpupillary distance: Adjustable between 50 and 75 mm.

Dioptric adjustment: On the left eyepiece tube.

Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.

Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.

Objectives (strain-free):

– IOS W-PLAN MET 5x/0.12

– IOS W-PLAN MET 10x/0.25

– IOS W-PLAN MET 20x/0.40

– IOS W-PLAN MET 50x/0.75

All with anti-fungus treatment.

Specimen stage: Double layer rackless mechanical stage, 233x147 mm, 78x54 mm X-Y range. With tempered glass plate.

Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.

Condenser: Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable.

Transmitted illumination (Full Koehler type): X-LED3 with white 3.6 W LED (6.300 K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.
