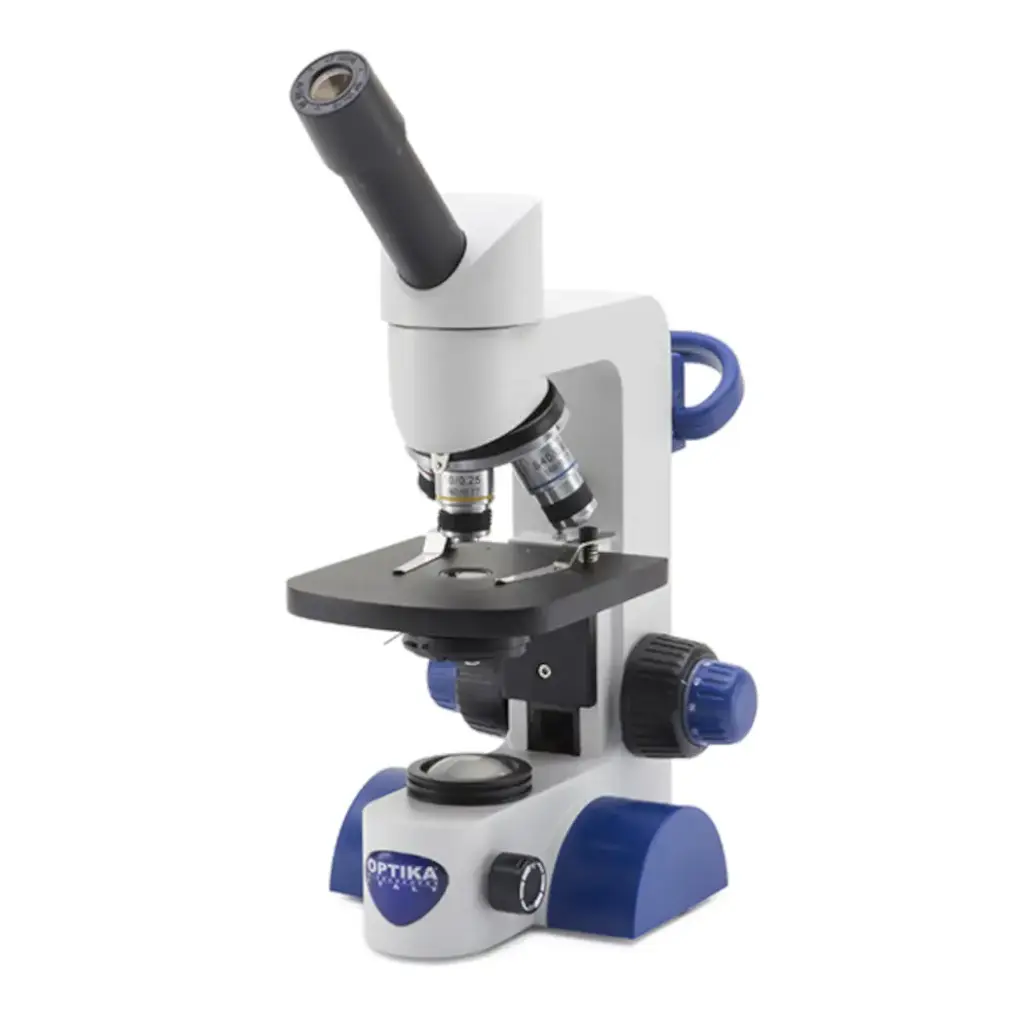

B-60 Monocular brightfield microscope, 400x rechargeable batteries not included

Description

The Optika B-60 monocular series microscope is ideal for education at the middle-high school or college level. This microscope is designed to be easy to handle and operate. It is compact, piratical, and intuitive to use. The microscope comes with a monocular head with 10x/18mm eyepieces which lock in to prevent tampering. The head can rotate 360 degrees making it ideal for storage. The microscope has a built in carry handle for safe transportation by students.It comes with achromatic 4x, 10x, 40x objectives. The flat top stage features StagErase which is coated with a special painting to reduce accidental scratches! The blue rounded fins on the side of the microscope serve as an arm/wrist rest for support while operating the microscope to prevent fatigue. The 1 Watt LED illumintor has brightness control and comes with rechargeable batteries for portable use!

Specification

Observation mode: Brightfield.

Head: Monocular, 45° inclined; 360° rotating.

Eyepiece: WF10x/18 mm, secured by screw.

Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.

Objectives:

– Achromatic 4x/0.10, with anti-fungus treatment

– Achromatic 10x/0.25, with anti-fungus treatment

– Achromatic 40x/0.65, with anti-fungus treatment

Specimen stage: StagErase™ eraseable fixed stage, 120×110 mm, with sample clips.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.

Condenser: N.A. 0.65 with iris diaphragm.

Illumination: 1 W LED, with brightness control, rechargeable batteries.

Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.
