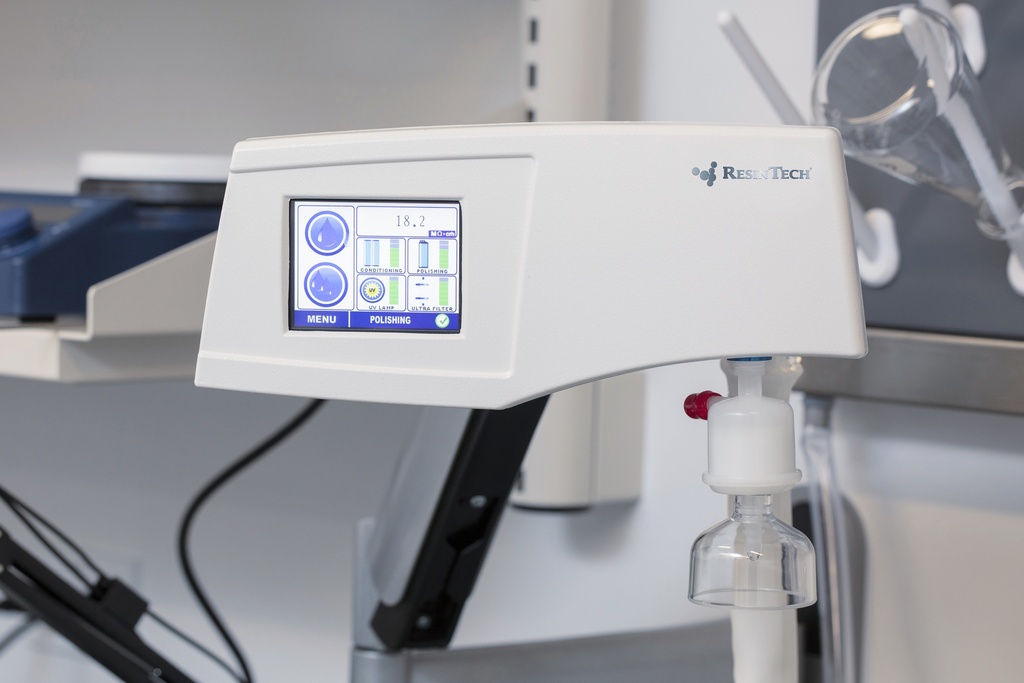

CLiR 5100 Ultrapure Lab Water System Remote Dispense Configuration (220v)

Product Description

Designed for general laboratory applications, the CLiR 5100 delivers up to 2.5 LPM of Type I, 18.2 MΩ water quality on demand. The water is purified using a multi-stage purification process. In the two-step deionization stage, source water passes through high-purity ion exchange resins to remove dissolved minerals. A subsequent stage uses a 0.2 micron filter to remove particulates and bacteria before dispensing. The result is water that meets universally recognized Type I specifications. The CLiR 5100’s intuitive “touch-screen” display monitors system health and the remaining life of your consumables. Intermittent recirculation ensures that the water inside the unit is continuously moving when not in use, mitigating any chance of bacterial growth. Convenient, programmable presets allow you to dispense frequently used volumes with speed and precision consistently. Applications include general water chemistry, reagent preparation and buffers. [Cartridges and final filter sold separately.]

Product Features

• 2.5 Lpm Of 18 Megohm Type 1 Reagent Water On Demand
• Intuitive, User Friendly Touch-Screen Interface
• Real Time Quality Monitoring With Leak Detection
• Compact Design With Remote Dispense Option
• Quick Change, No Tools Cartridge Design
• Large Capacity, Low Cost Consumables Cartridges
• Genuine Resintech Media

Product Specification

Performance Specification

• Max Pressure of 90 PSIG Max. / 20 PSIG Min.
• Max Temperature of 100°F (30°C)
• Resistivity of 18.2 Megohms
• Bacteria Removal of < 1 CFU / mL
• Particulates at < 0.02 µm filtration

Flow Diagram
