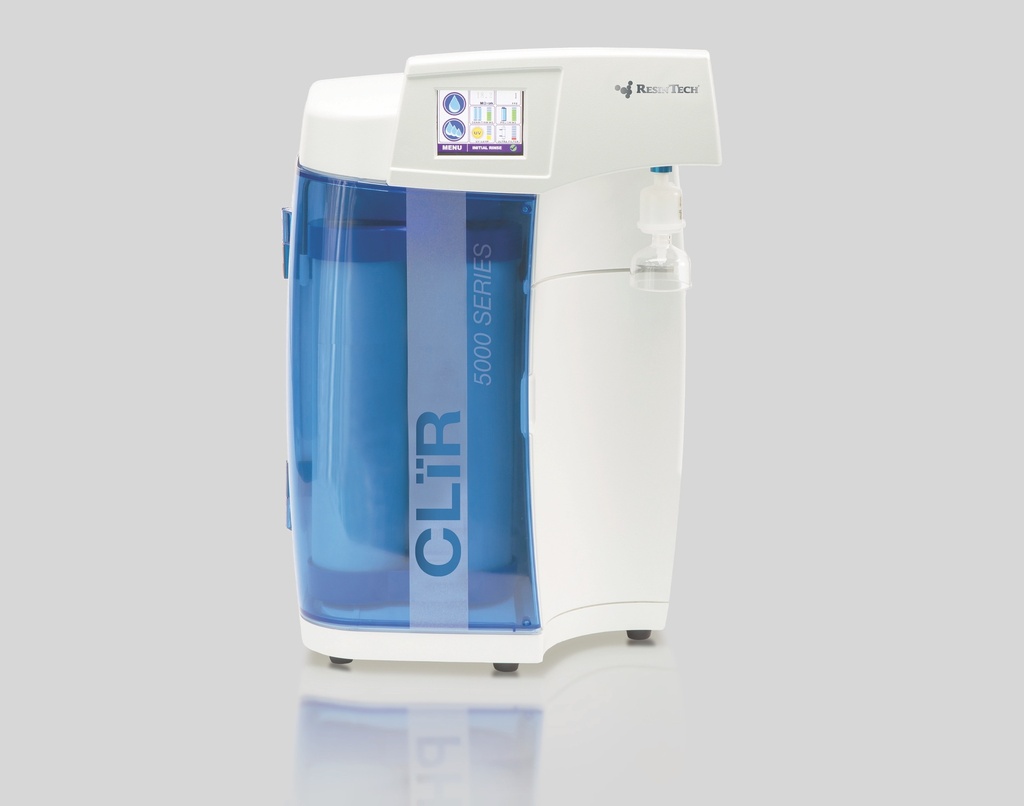

CLiR 5200 Ultrapure Lab Water System Benchtop Configuration with TOC Monitoring & UV Oxidation (220v)

Product Description

Designed specifically for trace organics and analytic chemistry applications requiring low organics and bacteria, the CLiR 5200 delivers up to 2.5 LPM of Type I, 18.2 MΩ water quality on demand. The water is purified using a staged purification process which includes high-purity ion exchange resins to remove dissolved minerals, and ultraviolet light for bacteria sterilization and TOC reduction. TOC levels are actively monitored via on screen display. As the water exits the system, a final filter removes particulates and bacteria to reach Type I water specifications. The CLiR 5200 uses a dual wave length technology to reduce organics and sterilize bacteria at the same time. Certain applications like HPLC and LC, require ultrapure water with TOC levels less than 5 ppb. The water is typically used in the preparation of mobile phase preparation, creating blanks, and sample dilution. For trace metals analysis, ICP-OES/ICP-MS require the organic and ionic purity for their dilution and dissolution processes. [Cartridges and final filter sold separately.]

Product Features

• 2.5 Lpm Of 18 Megohm Type 1 Reagent Water On Demand
• Intuitive, User Friendly Touch-Screen Interface
• Real Time Quality Monitoring With Leak Detection
• Compact Design With Remote Dispense Option
• Quick Change, No Tools Cartridge Design
• Large Capacity, Low Cost Consumables Cartridges
• Genuine Resintech Media

Product Specification

Performance Specification

• Max Pressure of 90 PSIG Max. / 20 PSIG Min.
• Max Temperature of 100°F (30°C)
• Resistivity of 18.2 Megohms
• Bacteria Removal of < 1 CFU / mL
• Particulates at < 0.02 µm filtration

Flow Diagram
