EC820 Precision Benchtop Conductivity Meter Kit

Cat. No.
EC820
https://www.scilogex.com/web/image/product.template/6231/image_1920?unique=6a83c13
The large backlit LCD displays conductivity and temperature simultaneously along with icons of stable readings and finished calibrations.

650.00 650.0 USD 650.00 In stock
In Stock Free Shipping

650.00

Currently Out-of-Stock

This combination does not exist.

In Stock Free Shipping



For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Product Description

  • Highest conductivity accuracy: ±0.5% of Full Scale± 1 digit
  • The BPB Glass Conductivity Electrode ensure Quick & Accurate EC measurements in wide ranges (0 to 2000 mS/cm)
  • The large backlit LCD displays conductivity and temperature simultaneously along with icons of stable readings and finished calibrations.
  • Quick and Easy 1 to 4 points auto calibration with calibration guide and reminder function (premixed standard solutions included)
  • GLP Data management (500 groups of data storage)
  • USB data output and software support

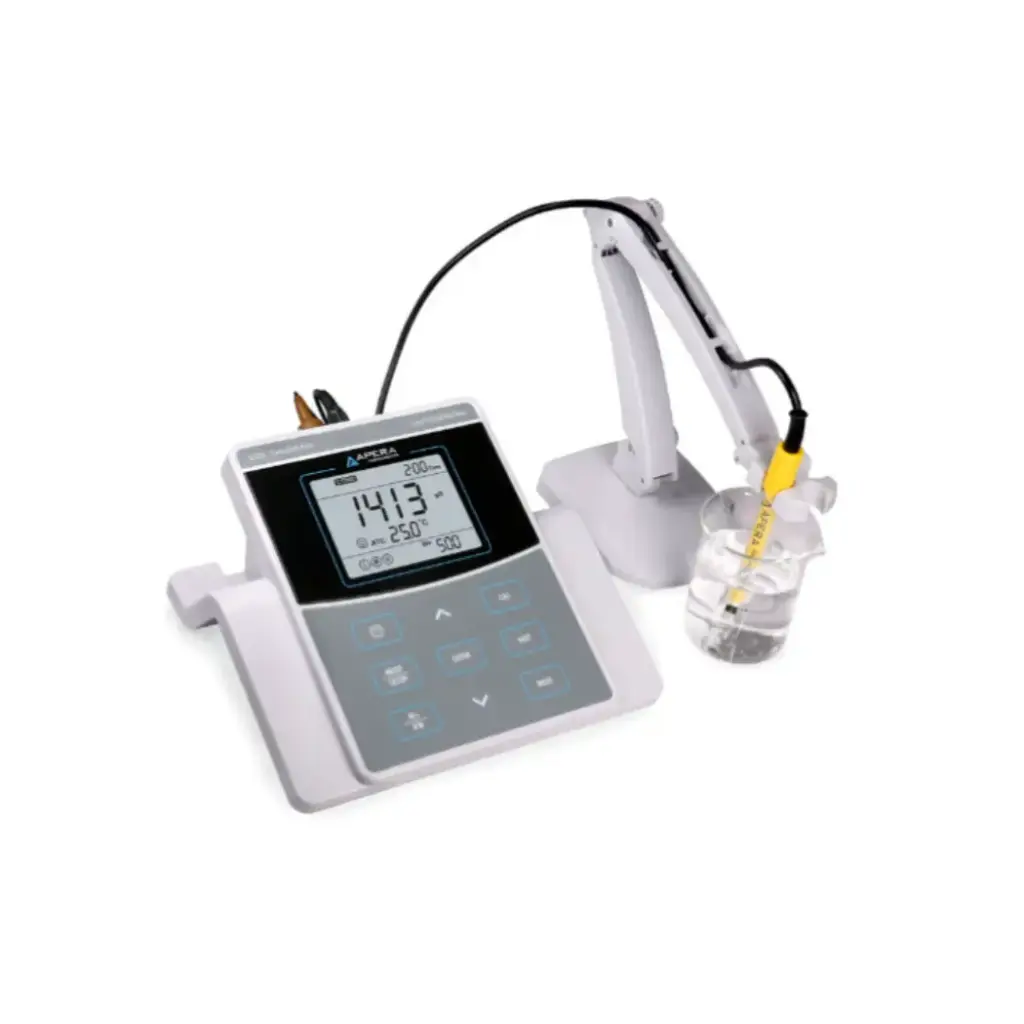

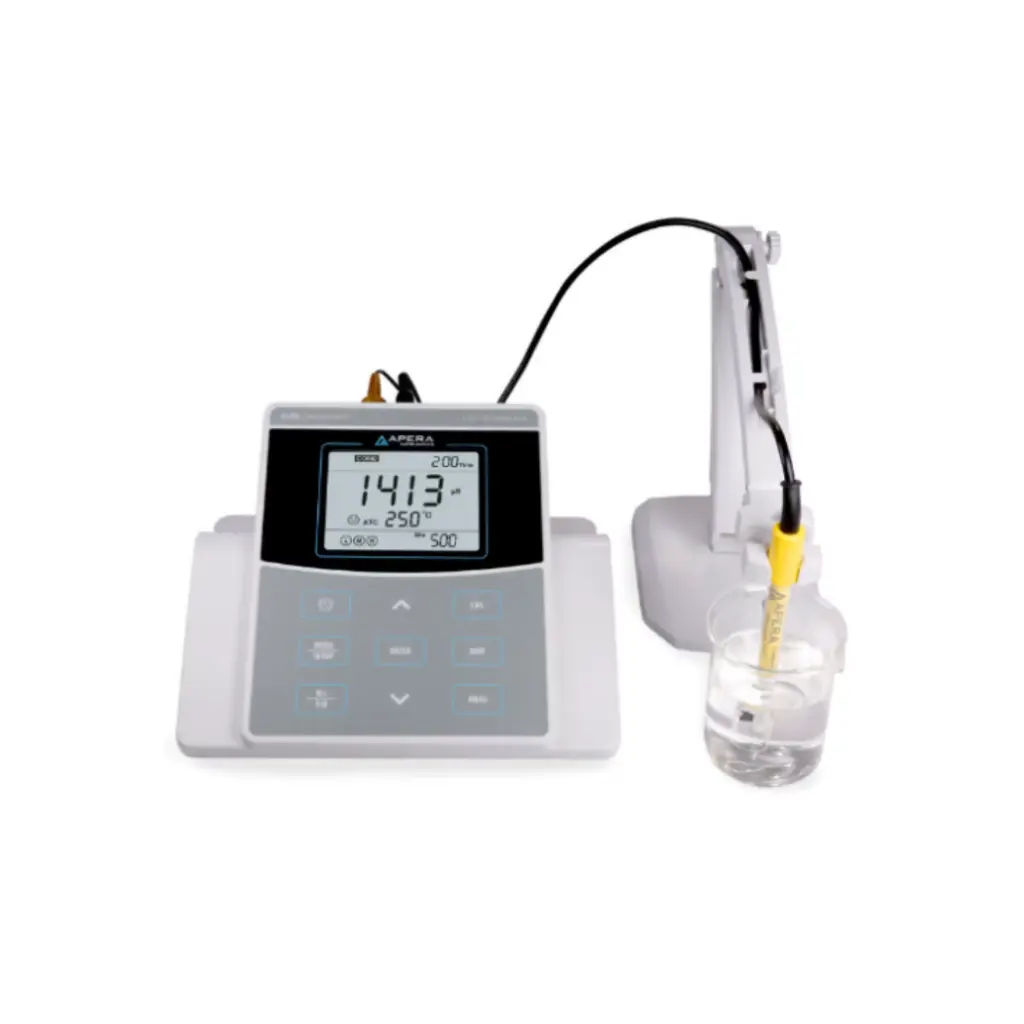

The Apera Instruments EC820 Precision Benchtop Conductivity Meter provides reliable conductivity measurements with various intelligent functions and a durable structure. Equipped with Apera's high-precision BPB (Brush-Resistant Platinum Black) glass conductivity/Temp. electrode (2401T-F), the meter measures Conductivity (EC)/TDS/Salinity/Resistivity/Temperature in a stable and accurate manner in wide ranges (0 to 2000 mS); Accuracy: ±0.5% F.S.

Intelligent Functions: Quick & Easy 1 to 4 Points Auto Calibration (84μS/cm, 1413μS/cm, 12.88mS/cm, 111.8mS/cm). The Smart Self-Diagnosis helps you conduct proper calibrations and monitor the condition of your probes with electrode's slope data display. The large clear LCD displays EC/TDS/Salinity/Resistivity and temperature simultaneously along with icons of stable readings and finished calibrations.

GLP Data management (500 groups of data storage), USB data output and PC software support. Timing measurement/data logging mode and Smart calibration reminder function available.

Reliable Structure: IP54 Water-resistant. It comes with a complete test kit including an EC820 Precision Benchtop Conductivity Meter, a Conductivity/Temp. Electrode, a flexible electrode arm and holder, a USB cable, a PC-Link Software flash drive (Windows-based system only), a power adaptor (input: 120V AC 60Hz; Output: 9V--300mA), and 3 bottles of calibration solutions (84μS/cm, 1413μS/cm, 12.88mS/cm). The product is CE certified and comes with a Three-Year Warranty for the meter, and a 6-Month warranty for the electrodes.

Product Specifications

Parameter Model EC820

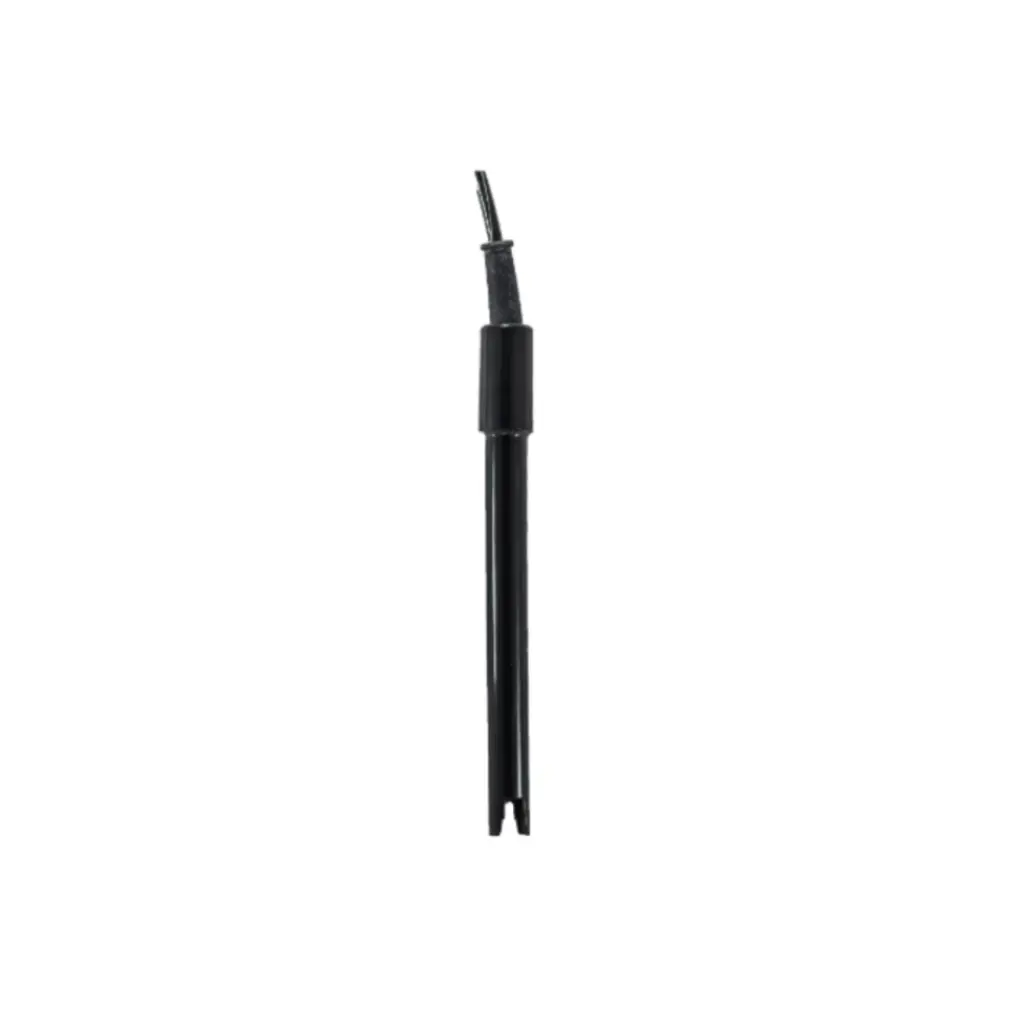

Conductivity Electrode 2401T-M Glass Conductivity Electrode
Measuring Range 0 to 2000 mS/cm, include: (0.00~19.99) μS/cm (20.0~199.9) μS/cm (200~1999) μS/cm (2.00~19.99) mS/cm (20.0~199.9) mS/cm (200~1999) mS/cm
TDS: (0 to 100) g/L
Salinity: (0 to 100) ppt
Resistivity: (0 to 100) MΩ?cm
Resolution 0.01/0.1/1μS/cm; 0.01/0.1/1 mS/cm
Accuracy ±0.5% F.S ±1 digit
Temp. Compensation Range 0 to 50°C (32 to 122°F) Auto or Manual
Electrode Constant 0.01/0.1/1/10 cm-1
Temperature Measuring Range -10 to 110°C (14 to 230°F)
Resolution 0.1°C
Accuracy ±0.4°C ±1 digit
Others Data Storage 500 Groups
Storage Content Numberings, Date, Time, Measurements, Unit, and Temperature
Data Output USB
Power Supply Input: 120V AC 60Hz; Output: DC9V/300mA, 2.7VA
IP Rating IP54 splash-proof and dust-proof
Dimensions and Weight (**) inches / pounds With box: (10*10*7) inches / 6.5 pounds approx

Additional Resources and Information

Downloadable PDFs/Program


820 Series User Manual


820 Series PC-Link
