Electrophoresis Systems

Features

• The electrophoresis system is a molded transparent polycarbonate product with superior shock-resistance, transparent, and durability to acrylic adhesives.
• Detachable electrode assembly allows for easy cleaning and maintenance.
• Each unit comes with one banana cable. Black & red cables are coupled together and can be inserted or extracted at the same time.
• UV-transparent gel trays allow for viewing bands on the UV-transilluminator without removing gel tray.
• Diverse-sized molded gel trays and casters for leak-free casting
• • EP-5 : 82x81mm (1ea) and 82x58mm (2ea) gel trays with one comb position.
  • EP-10 : 181x103mm (2ea) gel trays with max. four comb positions.
  • EP-18 : 181x206mm (1ea) gel tray with max. six comb positions.
• Double-sided combs are provided depending on each model.
• • EP-5 : 1mm thick 27-and 40-well comb (1ea)
  • EP-10, 18 : 1.5mm thick 20-and 31-well comb (2ea),
  • • 1mm thick 20-and 31-well comb (2ea),
    • 1.5mm thick 16-and 20-well comb (2ea),
    • 1mm thick 16-and 20-well comb (2ea),
    •  1.5mm thick 25-and 34-well comb (2ea),
    • 1mm thick 25-and 34-well comb (2ea)
• 31-well comb and 16-well comb for matching multichannel pipettes. Suitable for large amounts of sample screening- up to 186 samples at once using 6 combs in EP-18 gel tray.
• Comb-setting grooves in gel trays or caster prevents sliding of combs.
• Adjustable gel length.

• Flat, uniformly thick gels are formed by built in level maker on the gel tray and level bubble on the gel castor.

Testimony

• It is good that the price is lower for Electrophoresis tank, Caster and comb than those of other company, and another advantage is a short delivery date. (For Select bioproducts, the price of comb is quite expensive, and the delivery takes about 6 to 8weeks after the date of order.). The electrophoresis test for PCR products we do needs to be loaded in a large amount at once due to its characteristics. We use EP-18, which can be loaded more samples at once in comparison with the one of other companies. This point is very helpful for us and makes increase the work efficiency.
• It was my first time to use an electrophoresis system the domestic (in Korea) company made, I felt that there was no difference in performance compared to a famous foreign brand product. That was great to provide a various size of gel caster, and I liked the interface, convenience, completeness, and design as well. If our lab allowed to us, it’s an attractive product I want to purchase as one set with LC Connected mobile monitoring system, EP, and EPS.

• The most inconvenient thing was to separate a gel from the tray after gel running when I use the other products, but the Electrophoresis system of Lab Companion was quite convenient to observe the band right away without separating the tray. I think this point is the strongest advantage compared to its of other companies.think this point is the strongest advantage compared to its of other companies.

Specifications

Model	EP-05	EP-10	EP-18

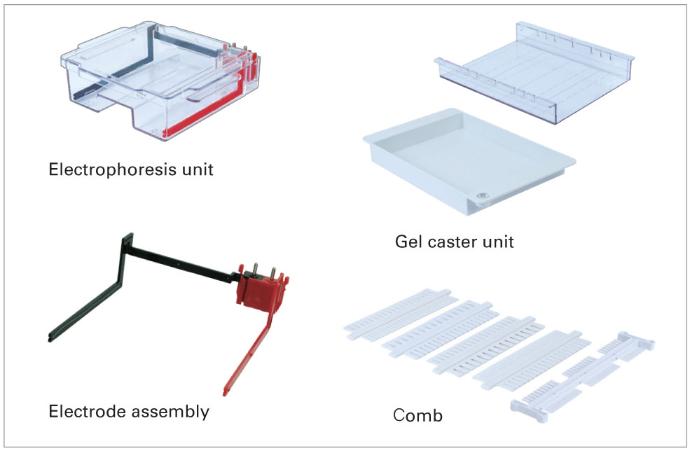

Electrophoresis Unit (Tank & Lid, Electrode, Power Cord)	1 set	1 set	1 set
Gel Caster	1 ea	1 ea	1 ea
Gel Tray	3 ea	2 ea	1 ea
Comb	27/40 well (1.0 mm) x 1ea	20/31 well (1.0 mm) x 2ea 20/31 well (1.5 mm) x 2ea 16/20 well (1.0 mm) x 2ea 16/20 well (1.5 mm) x 2ea 25/34 well (1.0 mm) x 2ea 25/34 well (1.5 mm) x 2ea	20/31 well (1.0 mm) x 2ea 20/31 well (1.5 mm) x 2ea 16/20 well (1.0 mm) x 2ea 16/20 well (1.5 mm) x 2ea 25/34 well (1.0 mm) x 2ea 25/34 well (1.5 mm) x 2ea

Specification

1) Electrophoresis unit's weight

* Included Electrophoresis unit, Gel caster unit, Comb in one system. (power supply is not included)

Accessories & Options

Power supply

• Four pairs of outlet terminals enable running 4 cells simultaneously.
• Folding front legs obtain wider viewing angle.
• Compact and stackable design.

• EPS-300 comes with one banana cable together.
