IS Autofocus HDMI camera on boom stand, with screen

Description

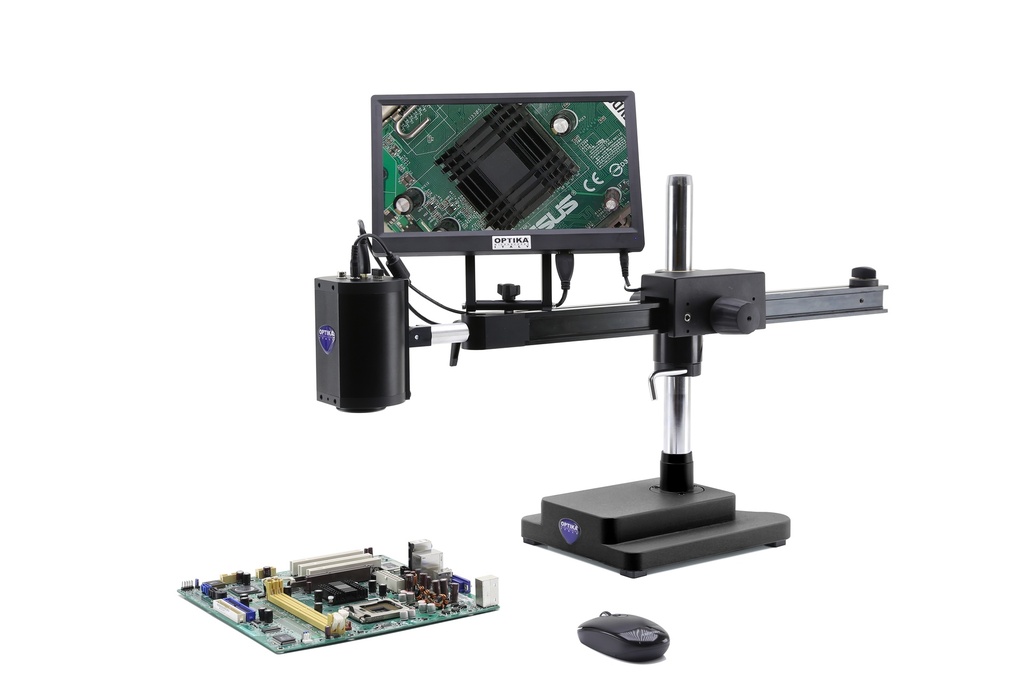

Advanced video inspection system, consisting in an extremely solid, accurate boom stand and a full HD autofocus camera (C-HAF).

OPTIKA C-HAF is a real-time full HD auto-focus inspection camera, with 2 MP resolution to view crystal clear 1080p images/videos on HD monitor, through HDMI connection at 60 fps. Its angle of view is fully adjustable.

Achieve instant focus without the need to constantly adjust your lens with the incredibly fast focusing system (acquisition time is lower than 1 sec.). The working distance is between 10cm and infinity, making it the ideal solution to inspect multi-layered objects, extremely quickly.

The camera is equipped with 1x-14x optical zoom and 1x-6x electronic zoom.

All functions are controlled directly from the screen.

The boom stand is equipped with a special joint to enable any rotation (both transverse and longitudinal): the longitudinal movement is through the sliding of the horizontal rail (lockable); whilst also the overall height is both adjustable and lockable.

CAMERA

• Image Sensor: CMOS sensor Sony Exmor

• Sensor dimensions: 1/2.8”

• Effective pixels: 2 MP

• Output: HDMI

• Power: DC5V

• Operation control: Remote control

• Scanning: Progressive Scanning

• White balance : Manual/Auto/OnePush

• Exposure: Manual/Auto

• Shutter speed : 1/50s(1/60s)-1/10000s

• SNR: >50dB

• Frame Rate: 1080p@60fps

• Operating Temp: 0°C – 50°C

• Weight: 500g

• Optical Zoom 1x-14x

• Digital Zoom 1x-6x

• Working Distance: From 10cm to Infinity

• Focusing System: Autofocus / Manual focus

STAND

• Type: High-performance boom stand. 3D-joint for easy camera positioning. Sliding horizontal rail for longitudinal positioning. Adjustable longitudinal limit. Adjustable and lockable height. Mount for LCD screen.

• Base dimensions: 210×257 mm.

• Pillar: Ø32×425 mm.

• Horizontal arm: 750 mm (movement range 330 mm).

• Swivel: 360°

• Tilt: 180°

• Weight: 16.25 kg


SCREEN

• 11.5” Full HD HDMI LCD Screen. 360° rotating. Freely inclinable for ergonomic vision.


ACCESSORIES

• Accessories Included: Wireless mouse, 30 cm HDMI cable 8 GB micro SD, Power supply.
