J Young Double Oblique Taps

J Young Double Oblique Taps

https://www.scilogex.com/web/image/product.template/5427/image_1920?unique=87a0c56

$ 191.00 191.0 USD $ 191.00 In stock

$ 0.00

Currently Out-of-Stock

  • Model

This combination does not exist.

Contact Us
Request a Quote



For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Share

Description

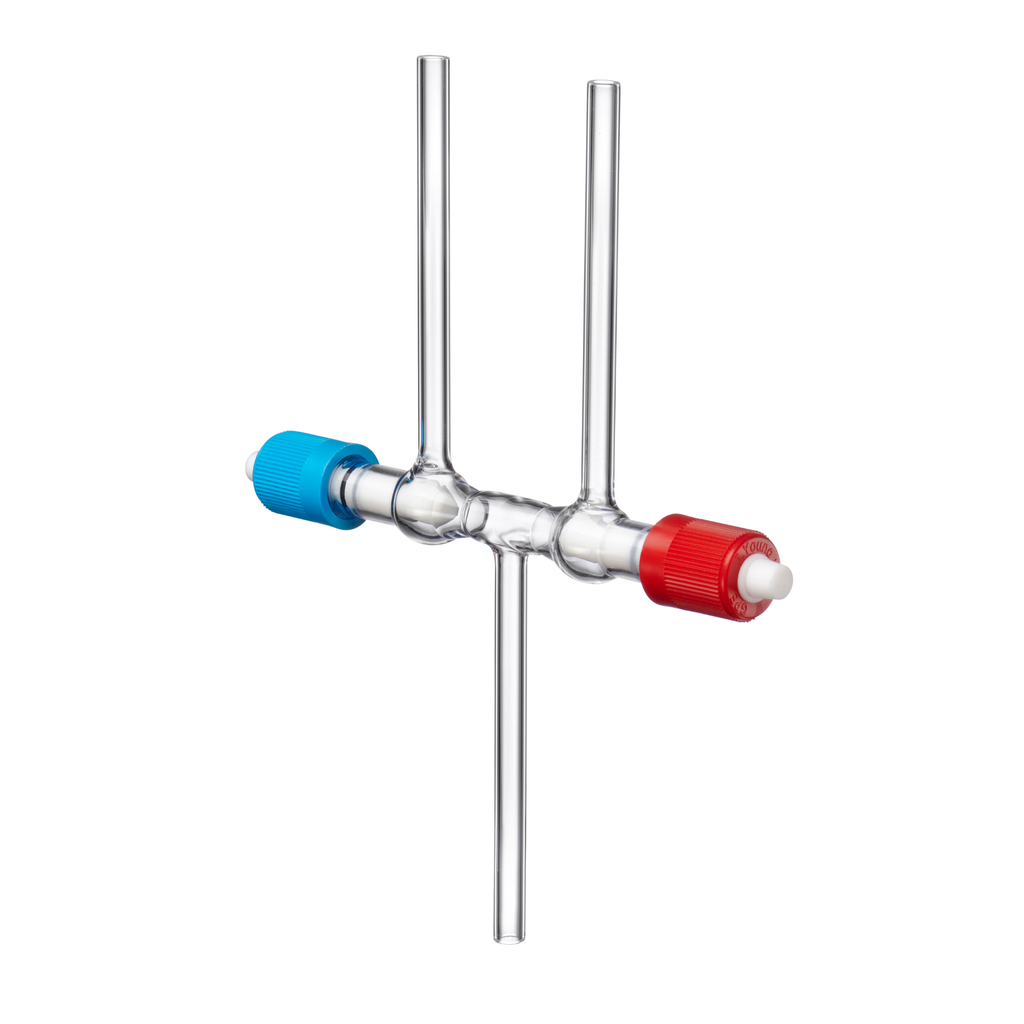

J Young Double Oblique taps are made in various Stopcock Sizes and thread types. These can be custom adapted to meet your needs and are also available with glass pistons.

We have introduced a NEW High Performance (HP) range, an improvement in design allows for the following:

  • New robust design
  • Improved interchangeability
  • Reinforced sealing area
  • For more demanding applications
  • Available in both fine and fast thread


Specifications

Product Code Product Description Stopcock Size (mm) Side Arm ID (mm) Side Arm OD (mm) Thread Type
POR/D/1 J Young POR/D/1 Double Oblique Tap 1 1.1 7 Fine
POR/D/2 J Young POR/D/2 Double Oblique Tap 2 2.2 7 Fine
POR/D/3 J Young POR/D/3 Double Oblique Tap 3 3 9 Fine
POR/D/4 J Young POR/D/4 Double Oblique Tap 4 4 7 Fine
POR/D/5 J Young POR/D/5 Double Oblique Tap 5 5 8 Fine
POR/D/6 J Young POR/D/6 Double Oblique Tap 6 6 9 Fine
POR/D/8 J Young POR/D/8 Double Oblique Tap 8 8 11 Fine
POR/D/10 J Young POR/D/10 Double Oblique Tap 10 10 13 Fine
POR/D/15 J Young POR/D/15 Double Oblique Tap 15 15.4 19 Fine
POR/D/20 J Young POR/D/20 Double Oblique Tap 20 19 24 Fine
POR/D/25 J Young POR/D/25 Double Oblique Tap 25 24 28 Fine
POR/D/1/HP J Young POR/D/1 Double Oblique Tap (HP) 1 1.1 7 Fine
POR/D/2/HP J Young POR/D/2 Double Oblique Tap (HP) 2 2.2 7 Fine
POR/D/3/HP J Young POR/D/3 Double Oblique Tap (HP) 3 3 9 Fine
POR/D/4/HP J Young POR/D/4 Double Oblique Tap (HP) 4 4 7 Fine
POR/D/5/HP J Young POR/D/5 Double Oblique Tap (HP) 5 5 8 Fine
POR/D/6/HP J Young POR/D/6 Double Oblique Tap (HP) 6 6 9 Fine
POR/D/8/HP J Young POR/D/8 Double Oblique Tap (HP) 8 8 11 Fine
POR/D/10/HP J Young POR/D/10 Double Oblique Tap (HP) 10 10 13 Fine
