J Young Dual Bank Manifolds

$ 1,245.00 1245.0 USD $ 1,245.00 In stock

$ 0.00

Model
- [90010] With Jy Valves, 3 Port, 300mm Approx Width
- [90010/HP] With Jy High Performance Valves, 3 Port, 300mm Approx Width
- [90011] With Jy Valves, 4 Port, 400mm Approx Width
- [90011/HP] With Jy High Performance Valves, 4 Port, 400mm Approx Width
- [90012] With Jy Valves, 5 Port, 500mm Approx Width
- [90012/HP] With Jy High Performance Valves, 5 Port, 500mm Approx Width

This combination does not exist.

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Description

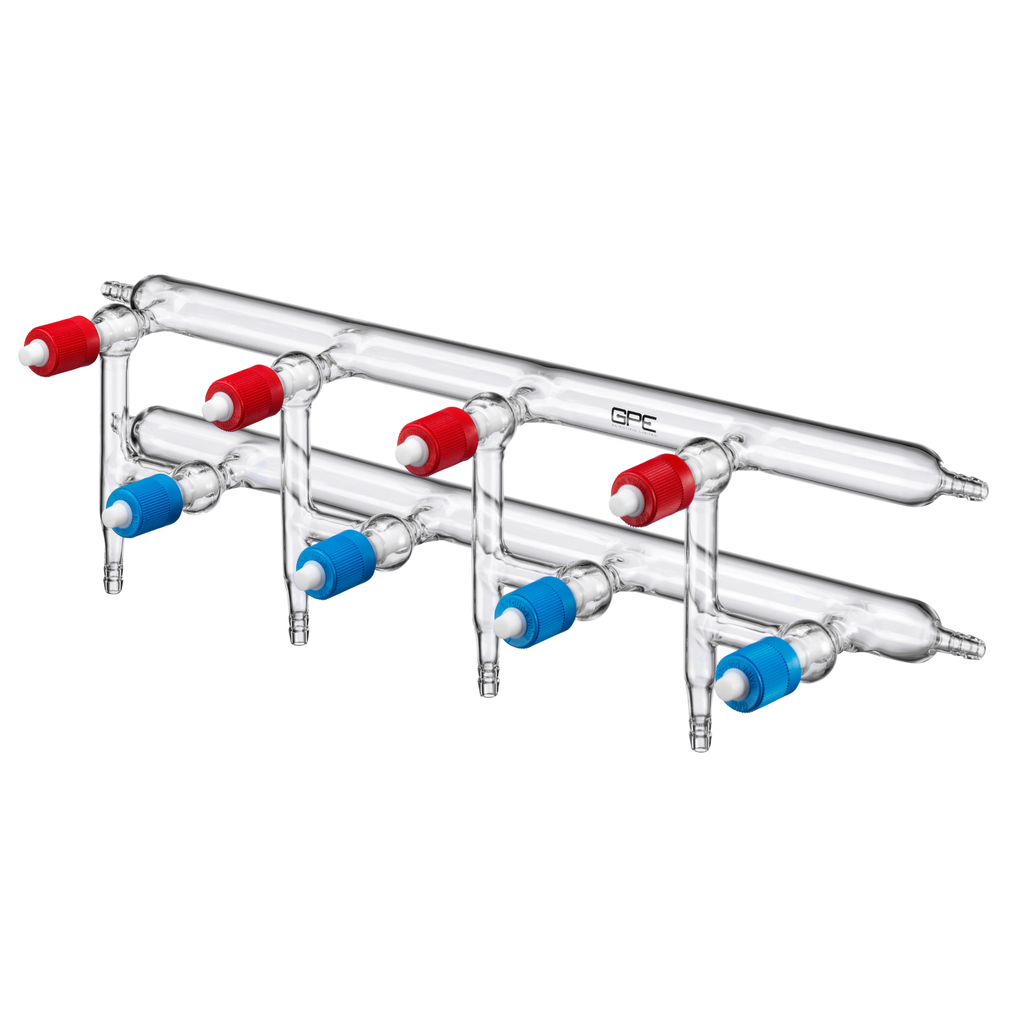

Dual Bank Vacuum Manifold / schlenk line with J. Young High Vacuum PTFE Valves. Main tubes are 24mm OD with serrated end connections. Available with 3, 4 and 5 ports.

We have introduced a NEW High Performance (HP) range, an improvement in design allows for the following:

New robust design
Improved interchangeability
Reinforced sealing area
For more demanding applications
Available in both fine and fast thread

There is also an option to add an NW16 flange to connect a vacuum gauge. See below products with -NW16 on the code.

Specifications

Product Description	Number of Ports	Valve Size	Width
90010	3	0-10mm	300mm
90010/HP (high performance JY valves)	3	0-10mm (HP)	300mm
90011	4	0-10mm	400mm
90011/HP (high performance JY valves)	4	0-10mm	400mm
90012	5	0-10mm	500mm
90012/HP (high performance JY valves)	5	0-10mm	500mm
