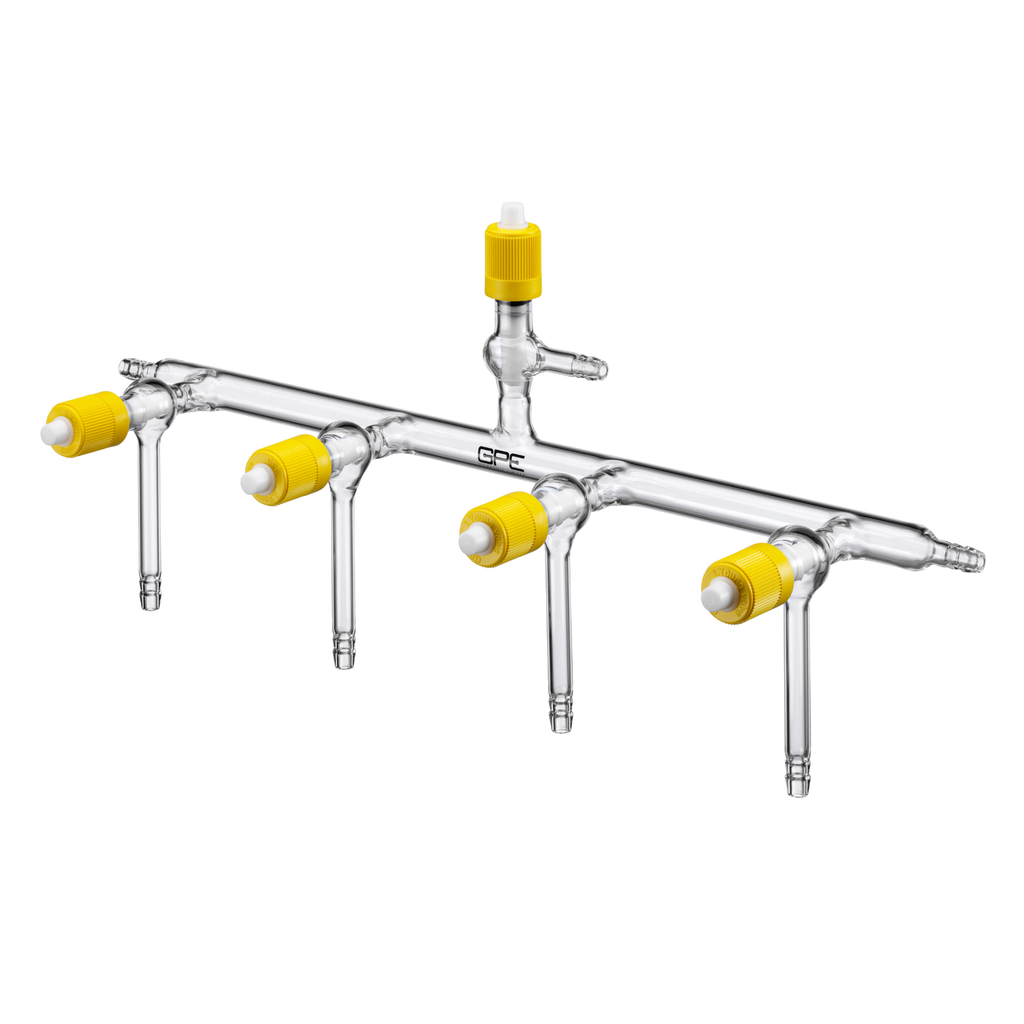

J Young® Single Bank Manifolds (Vacuum Gauge Port)

$ 754.00 754.0 USD $ 754.00 In stock

$ 0.00

Model
- [90004] With Jy Valves And Vacuum Gauge Port, 3 Port, 300mm Approx Width
- [90004/HP] With Jy High Performance Valves And Vacuum Gauge Port, 3 Port, 300mm Approx Width
- [90005] With Jy Valves And Vacuum Gauge Port, 4 Port, 400mm Approx Width
- [90005/HP] With Jy High Performance Valves And Vacuum Gauge Port, 4 Port, 400mm Approx Width
- [90006] With Jy Valves And Vacuum Gauge Port, 5 Port, 500mm Approx Width
- [90006/HP] With Jy High Performance Valves And Vacuum Gauge Port, 5 Port, 500mm Approx Width

This combination does not exist.

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Description

General Purpose Single Bank Vacuum Manifold with J. Young high vacuum PTFE valves and vacuum gauge port. The main tube is 16mm OD with serrated end connections. Available with 3, 4 or 5 ports.

We have introduced a NEW High Performance (HP) range, an improvement in design allows for the following:

New robust design
Improved interchangeability
Reinforced sealing area
For more demanding applications
Available in both fine and fast thread

Specifications

Product Description	Number of Ports	Valve Size	Width
90001	3	0-10mm	300mm
90001/HP (high performance JY valves)	3	0-10mm (HP)	300mm
90002	4	0-10mm	400mm
90002/HP (high performance JY valves)	4	0-10mm	400mm
90003	5	0-10mm	500mm
90003/HP (high performance JY valves)	5	0-10mm	500mm
