J Young Single Bank Manifolds

$ 612.00 612.0 USD $ 612.00 In stock

$ 0.00

Model
- [90001] With Jy Valves, 3 Port, 300mm Approx Width
- [90001/HP] With Jy High Performance Valves, 3 Port, 300mm Approx Width
- [90002] With Jy Valves, 4 Port, 400mm Approx Width
- [90002/HP] With Jy High Performance Valves, 4 Port, 400mm Approx Width
- [90003] With Jy Valves, 5 Port, 500mm Approx Width
- [90003/HP] With Jy High Performance Valves, 5 Port, 500mm Approx Width

This combination does not exist.

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Description

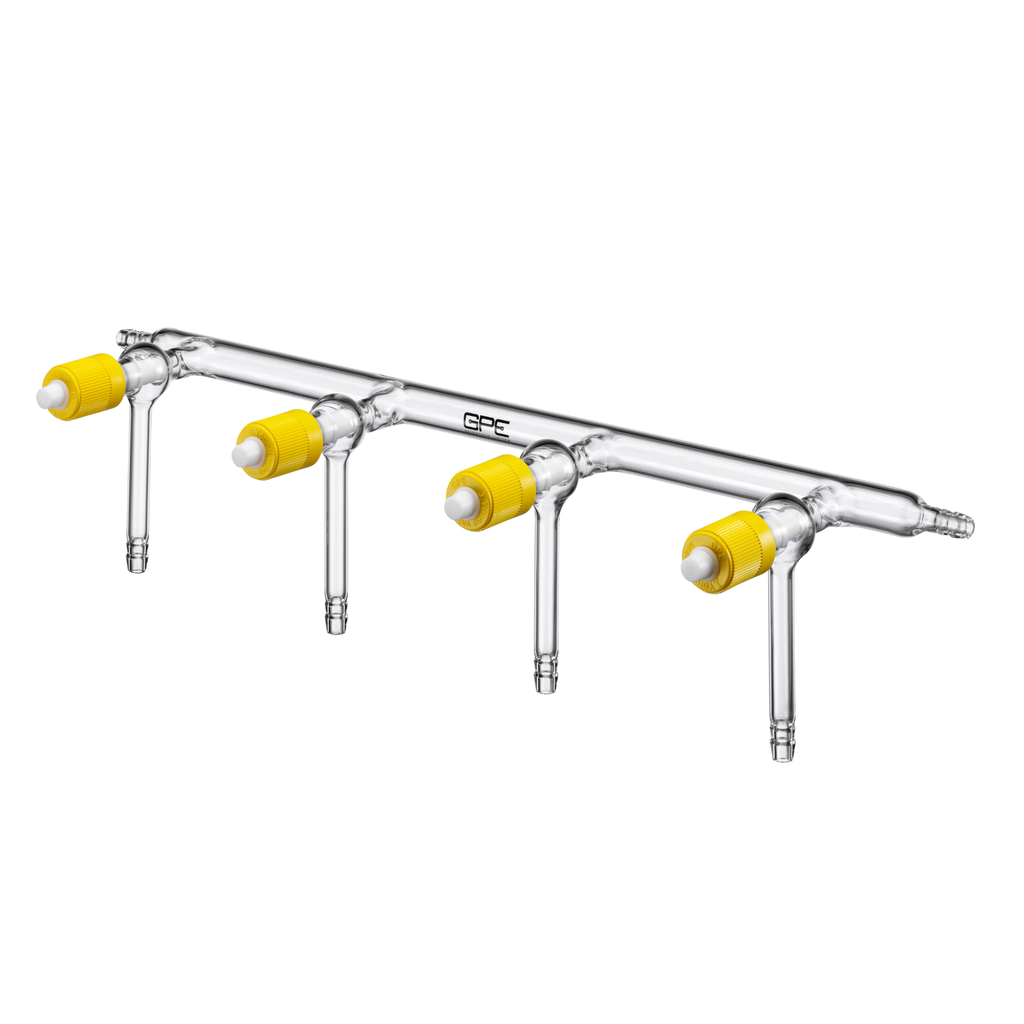

General Purpose Single Bank Vacuum Manifold with J. Young High Vacuum PTFE Valves. The main tube is 16mm OD with serrated end connections. Available with 3, 4 or 5 ports.

We have introduced a NEW High Performance (HP) range, an improvement in design allows for the following:

New robust design
Improved interchangeability
Reinforced sealing area
For more demanding applications
Available in both fine and fast thread

Specifications

Product Description	Number of Ports	Valve Size	Width
90001	3	0-10mm	300mm
90001/HP (high performance JY valves)	3	0-10mm (HP)	300mm
90002	4	0-10mm	400mm
90002/HP (high performance JY valves)	4	0-10mm	400mm
90003	5	0-10mm	500mm
90003/HP (high performance JY valves)	5	0-10mm	500mm
