J Young Space Saving Manifolds

$ 545.00 545.0 USD $ 545.00 In stock

$ 0.00

Model
- [90007] With Jy Valves, 3 Port, 225mm Approx Width
- [90007/HP] With Jy High Performance Valves, 3 Port, 225mm Approx Width
- [90008] With Jy Valves, 5 Port, 305mm Approx Width
- [90008/HP] With Jy High Performance Valves, 5 Port, 305mm Approx Width
- [90009] With Jy Valves, 8 Port, 420mm Approx Width
- [90009/HP] With Jy High Performance Valves, 8 Port, 420mm Approx Width

This combination does not exist.

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Description

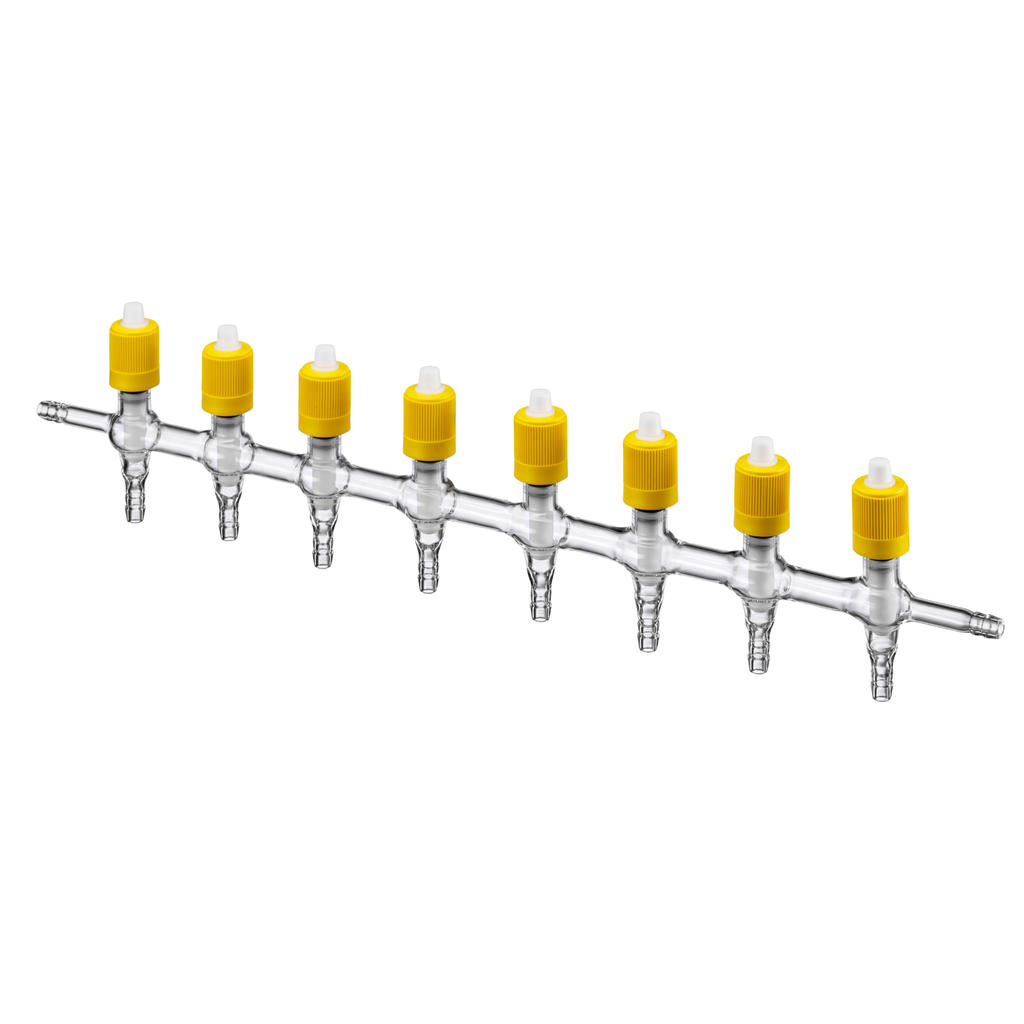

General purpose space saving vacuum manifold with J. Young high vacuum PTFE valves. Main tube is 13mm OD with serrated end connections. Available with 3, 5 and 8 ports.

We have introduced a NEW High Performance (HP) range, an improvement in design allows for the following:

New robust design
Improved interchangeability
Reinforced sealing area
For more demanding applications
Available in both fine and fast thread

Specifications

Product Description	Number of Ports	Valve Size	Width
90007	3	0-10mm	225mm
90007/HP (high performance JY valves)	3	0-10mm	225mm
90008	5	0-10mm	305mm
90008/HP (high performance JY valves)	5	0-10mm	305mm
90009	8	0-10mm	420mm
90009/HP (high performance JY valves)	8	0-10mm	420mm

Additional Resources and Information

Downloadable PDFs

SCILOGEX J Young Brochure
