Jeio Tech Vacuum Desiccators (Cubic)

Integrally molded cubic box design enabling outstanding vacuum capability with virtually no leakage and exceptional durability.

Model

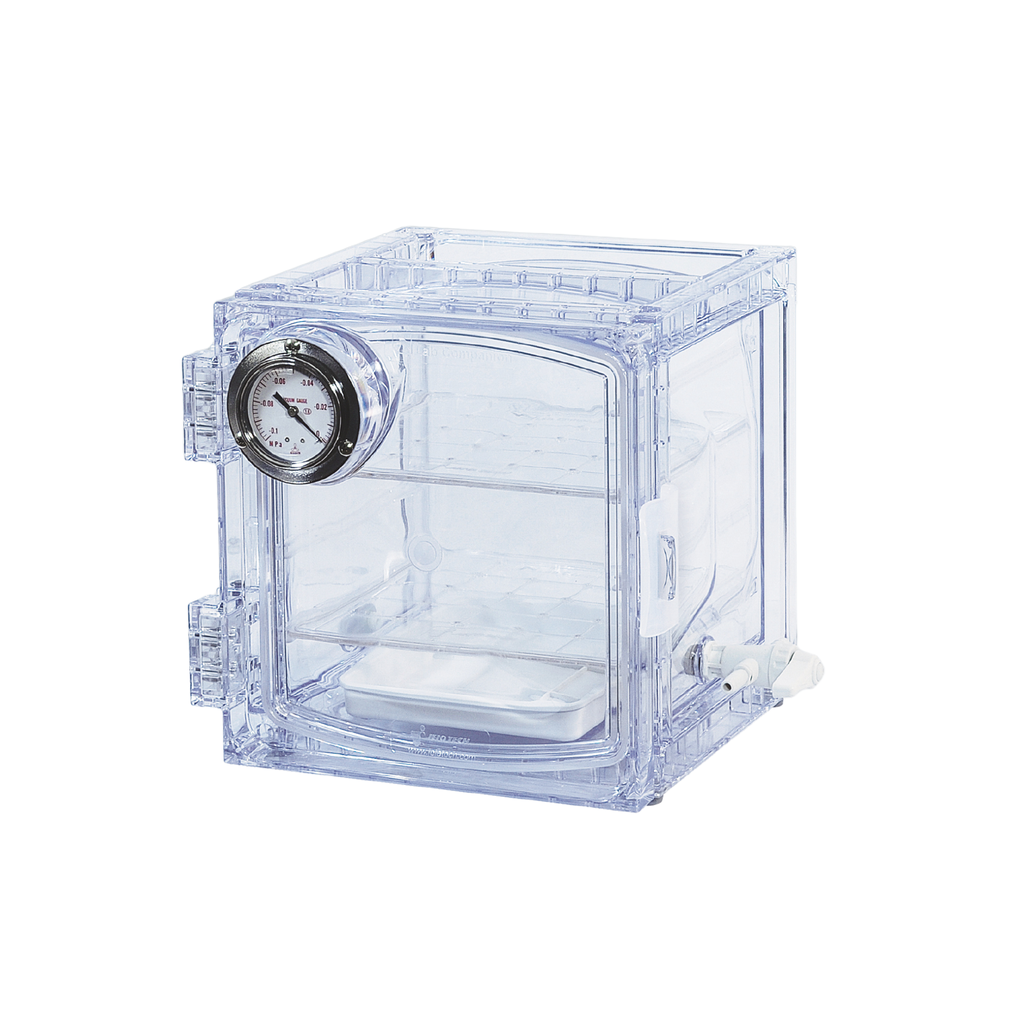

- [AAAD4001] VDC-11 Vacuum Desiccator, 11L, 12.7x11.2x10.7
- [AAAD4101] VDC-11U Vacuum Desiccator, UV Block, 11L, 12.7x11.2x10.7
- [AAAD4021] VDC-21 Vacuum Desiccator, 23L, 16.5x15.4x11.1
- [AAAD4121] VDC-21U Vacuum Desiccator, UV Block, 23L, 16.5x15.4x11.1
- [AAAD4011] VDC-31 Vacuum Desiccator, 35L, 16.5x15.7x15
- [AAAD4111] VDC-31U Vacuum Desiccator, UV Block, 35L, 16.5x15.7x15
- [AAAD4031] VDC-41 Vacuum Desiccator, 45L, 16.5x15.7x15
- [AAAD4131] VDC-41U Vacuum Desiccator, UV Block, 45L, 16.5x15.7x15

This combination does not exist.

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Performance / Convenience

Maximum vacuum of 1 Torr (1.33×10-4 Mpa) for more than 72 hours.
High quality silicone gasket ensures greaseless airtight seal for the clean and cost effective test environment.
Highly transparent, shatterproof, non-corrosive, and easy to clean polycarbonate construction.
Three-way stopcock provides great convenience for consistent and uniform vacuum draw, vacuum release, or gas exchange. The barbed fitting on each side secures attachment of tubing.
Maximized utilization of internal space using maximum four to six shelves depending on product sizes.
Stackable space-saving design allowing efficient usage of cramped lab space.
Easy vacuum level checking with the standard vacuum gauge attached to the front door.
Minimizing damages or discoloration of light-sensitive samples. (for U models)
Four built-in ports allowing easy attachment of tubing.

Model ¹⁾	VDC-11/11U	VDC-21/21U	VDC-31/31U	VDC-41/41U
Internal volume (L / cu ft)	11 / 0.4	23 / 0.8	35 / 1.2	45 / 1.6
Gauge range (Mpa)	0 to -0.1
Nozzle (mm / inch, Ø)	9.5 / 0.37
Max. permissible vacuum (bodies)	1.33×10-4 Mpa
Max. load (kg / lbs) per shelf	3 / 6.6	5 / 11
Number of shelves (standard / max.)	2 / 4	3 / 5	3 / 6
Material	Body	Polycarbonate
Perforated sample tray
Drying agent tray / Locker	Polypropylene
Vacuum seal	Silicone rubber
Dimension (W×D×H)	Interior (mm / inch)	248x254x238 / 9.8x10x9.4	346x365x246 / 13.6x14.4x9.7	355x375x345 / 14x14.8x13.6	355x374x446 / 14x14.7x17.6
Exterior (mm / inch)	324x325x326 / 12.8x12.8x12.8	422x435x336 / 16.6x17.1x13.2	430x444x435 / 16.9x17.5x17.1	430x444x536 / 16.9x17.5x21.1

Model ¹⁾		VDC-11/11U	VDC-21/21U	VDC-31/31U	VDC-41/41U
Internal volume (L / cu ft)		11 / 0.4	23 / 0.8	35 / 1.2	45 / 1.6
Gauge range (Mpa)		0 to -0.1
Nozzle (mm / inch, Ø)		9.5 / 0.37
Max. permissible vacuum (bodies)		1.33×10-4 Mpa
Max. load (kg / lbs) per shelf		3 / 6.6	5 / 11
Number of shelves (standard / max.)		2 / 4		3 / 5	3 / 6
Material	Body	Polycarbonate
	Perforated sample tray	Polycarbonate
	Drying agent tray / Locker	Polypropylene
	Vacuum seal	Silicone rubber
Dimension (W×D×H)	Interior (mm / inch)	248x254x238 / 9.8x10x9.4	346x365x246 / 13.6x14.4x9.7	355x375x345 / 14x14.8x13.6	355x374x446 / 14x14.7x17.6
Dimension (W×D×H)	Exterior (mm / inch)	324x325x326 / 12.8x12.8x12.8	422x435x336 / 16.6x17.1x13.2	430x444x435 / 16.9x17.5x17.1	430x444x536 / 16.9x17.5x21.1
