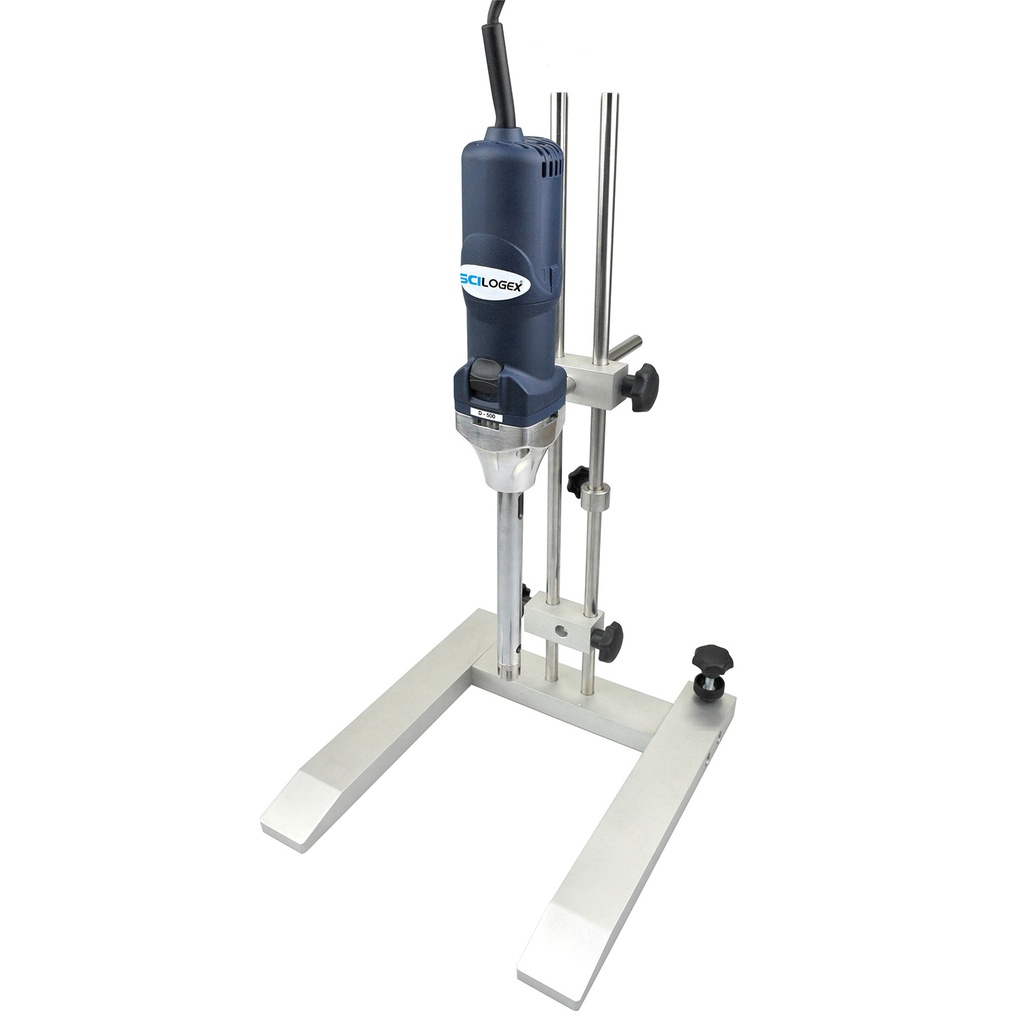

SCILOGEX D500 Homogenizers, 100-5000ml capacity

$ 2,063.00 2063.0 USD $ 2,063.00 $ 2,750.00 In stock

$ 2,063.00 $ 2,750.00

D500 packages:
- [850202019999] SCILOGEX D500 Homogenizer Package - Drive Motor, DS-500/2 20mm dia. generator, with S20F/ER20 flat head-open slot fine generator, 215mm immerse length, for water in oil or oil in water emulsions, volumes 10- 5000ml and with H-600 stand 110V, 60Hz + $ 2,450.00
- [850201019999] SCILOGEX D500 Homogenizer Package - Drive Motor, DS-500/1 20mm dia. generator, with S20C/SR20 flat head-open slot coarse generator, 215mm immerse length, for solid/liquid media, volumes 10-5000ml and with H-600 stand, 110V, 60Hz + $ 2,352.00

This combination does not exist.

Add to cart Buy now

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Click here for accessories

Product Description

The Scilogex D500 Homogenizer has a maximum speed of 29,000rpm and reduces processing time significantly. The smooth motor drive provides safe and comfortable operation. An overload protection feature increases the life span of the motor. Smooth acceleration also prevents unnecessary spills. A flexible configuration of different generators and rotors make the D500 highly adaptive to most applications. The generator shaft is constructed of 316L stainless steel. Reliable results are assured with extremely high precision and speed. Assembly and disassembly of rotors requires no special tools. For applications/product selection please click here.

Product Features

Ideal for mixing, emulsification, shredding, or chopping (Not suitable for very viscous liquids or powders, 10,000 cps/mPa-s max.)
Generators and rotors can be combined to suit various applications.
Easy to hold and light weight for one hand operation.
Generators are made of 316L Stainless Steel
Autoclavable stainless steel shafts
All shafts are easily removed for clean-up.
High speed motor 10,000 to 29,000 rpm
Suitable for solvents & abrasive substances
1 YEAR WARRANTY

Product Specifications

Speed range	10,000-29,000 rpm
Sample volume range / Viscosity max.	10 - 5000 ml / 5000mPas
Speed control	6 position control dial
Motor type	Universal motor, 500 Watt
pH range	2-13
Fineness	Suspensions & Emulsion 10-15^¼m & 1-10^¼m
Noise emission	72 dB(A) at 29,000 rpm
Dimensions	2.5L x 2.5W x 9H inches (drive only)
Weight	20lbs (with stand) 1.8lbs (drive only)
Voltage	110Volts, 60Hz

Additional Resources and Information

Manuals and Application Selection Table

D-160 Homogenizer

D-500 Homogenizer

Brochures

D160/D500 Homogenizers

Scilogex Homogenizers
