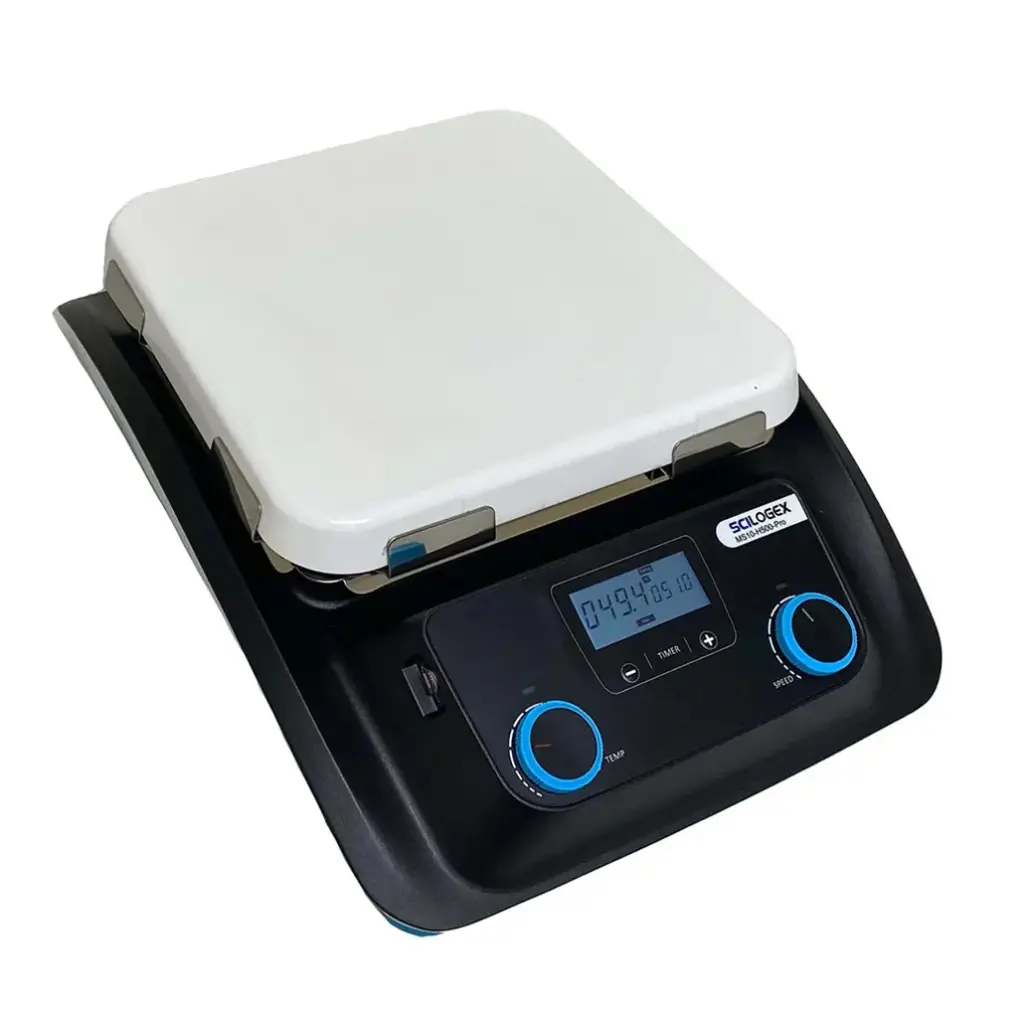

SCILOGEX SCI500HS-Pro LCD Digital 10x10 Magnetic Hotplate Stirrer 500°C/1500rpm Max.

https://www.scilogex.com/web/image/product.template/1753/image_1920?unique=e5fa411

$ 795.00 795.0 USD $ 795.00 In stock

$ 795.00

Currently Out-of-Stock

  • Bundle

This combination does not exist.

Contact Us
Request a Quote



For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Share

Click here for accessories

Product Features

  • Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
  • Glass ceramic work plate provides excellent chemical resistant performance and efficient heat transfer.
  • LCD display for precise monitoring of speed and temperature. Liquid temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at ±0.2°C.
  • Digital speed control of 100~1500 rpm
  • Max. heating plate temperature 500°C
  • The "Hot" warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off.
  • Free SD card records the instrument's running data in real time.
  • Timing function: the run time of the instrument can be set.

Product Specifications

Work plate Dimension[WXD] 254x254mm(10inch)
Work plate material Glass ceramic
Motor type Brushless DC motor
Stirring positions 1
Max. Stirring quantity, [H2O] 30L
Max. Magnetic bar[length] 80mm
Speed range 100-1500rpm resolution±1rpm
Speed, Time, Temperature display LCD
Timer display 1min-99h59min
Heating Temperature range Room Temp. -500°C, increment 1°C
Temperature control accuracy ±1°C(<100°C)±1%(>100°C)
Overheating Protection(°C) 540
Temperature Display Accuracy ±0.1°C
External temperature sensor PT1000 (accuracy ±0.2)
"Hot" warning (°C) 50
Data Connector SD Card
Protection Class IP21
Power 1400W
Heating output (W) 1350
Voltage, Frequency 100-120/200-240V 50/60Hz
Dimensions [WxDxH] 328x424x138mm
Weight (kg) 7.18
Permissible Ambient Temperature and Humidity 5-40° C, 80%RH

Additional Resources and Information

Downloadable PDFs


SCI500HS-Pro Manual
