Description

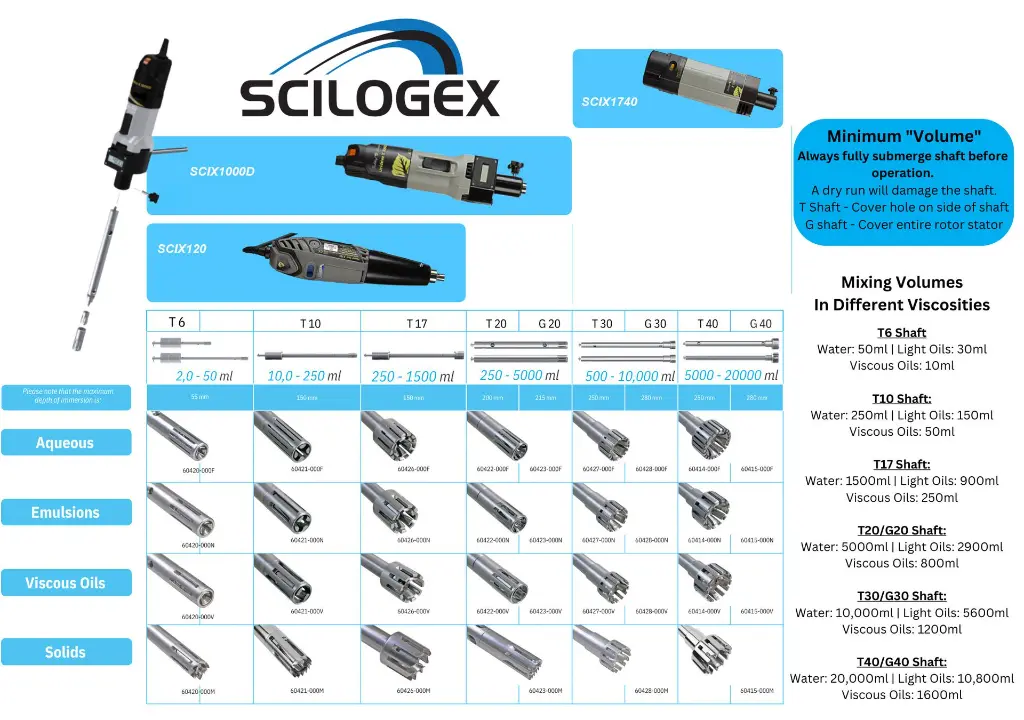

We have put together a complete kit with our SCIX1000D homogenizer and a wide variety of disperser generator shafts. Use our shaft selection guide to select the shaft size and type based on the material and volume you are working with. This makes purchasing convenient and easy as you can select one kit and get everything you need including the motor drive, the disperser shaft, required tools, complete heavy duty stand setup, and a set of beakers.
- Aqueous (Fine) - Fine particle homogenization for lightweight liquids like water (1-10cps)
- Emulsions (neutral) - Light oils and emulsions (20-100cps)
- Viscous - Good for thick oils, gels, creams, lotions, and balms (200-500cps)
- Solids (knife)- Tissue homogenization (for tearing or breaking down solids into a liquid)
For material beyond the 500cps it is recommended to heat the sample so it can flow.
Our "viscous" SCIX1000D and G20 complete kit includes a vertical flow cup which doubles the standard processing size for thick, heavy, and viscous materials

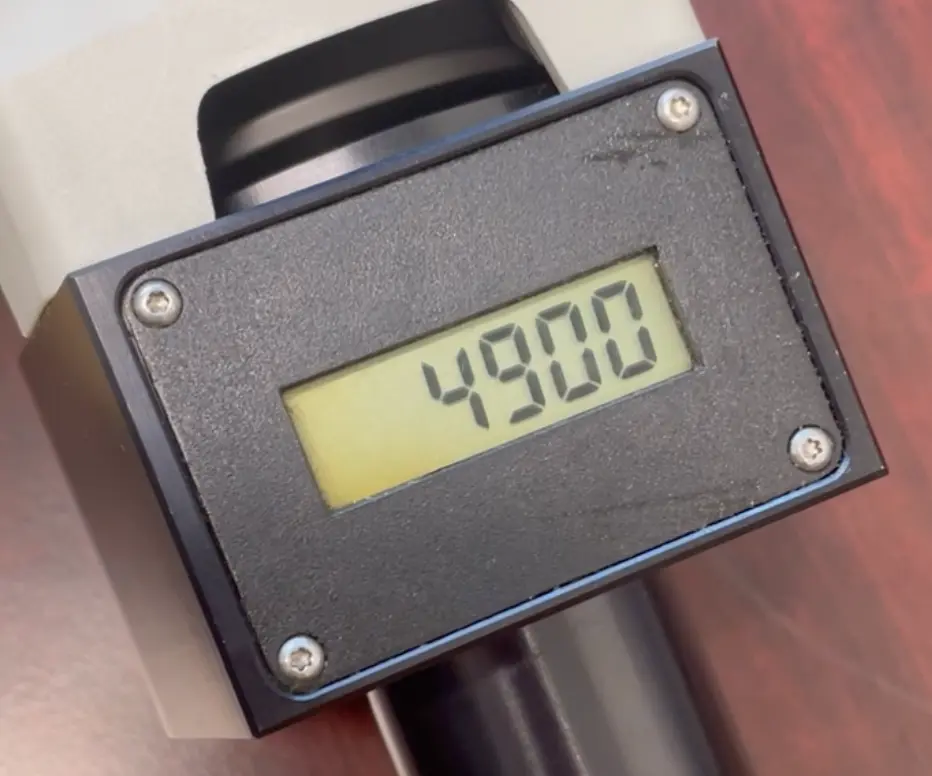

Our SCIX1000D includes a digital display which allows you to quantify your processing parameters which provides consistent and repeatable results and makes SOP's easy to train and implement.
All our homogenizers come with a 2-year warranty and we have parts in stock and service capable of repairing and replacing any broken parts quickly. We understand how costly downtime can be so we are committed to offer the fastest turnaround possible. Call us anytime if you have any questions about your homogenizer mixer setup (510)487-1390
The SCIX1000D is designed in accordance with Safety Class 1 and built and tested in accordance with DIN EN 61010. According to these regulations the unit is designed to meet the requirements for safe and correct operations. To maintain the proper safety and operational functions of the instrument the user should follow the instructions and safety guidelines in the manual. Not for hazardous are use, DO NOT USE WITH FLAMMABLE MATERIALS UNLESS UNDER A FUME HOOD.
| Packages |
Details |

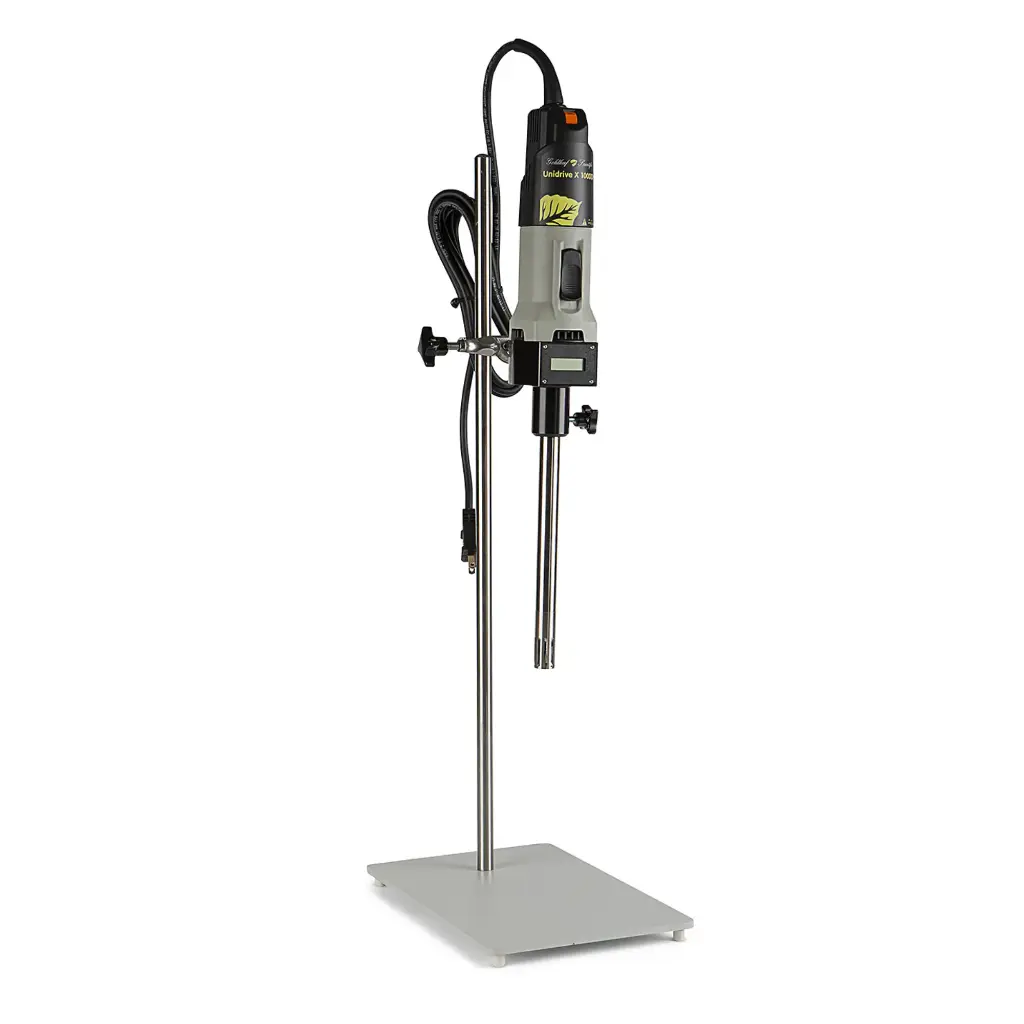

| SCIX 1000D Complete Homogenizer Package Aqueous G20 |
Best for liquids with similar viscosity to water. Max volume 5000mL, min depth of insertion depth: 215mm (Sealed shaft style)
|
| SCIX 1000D Complete Homogenizer Package Emulsions G20 |
Best for liquids with similar viscosity to light oils. Max volume 2900mL, min depth of insertion: 215mm (Sealed shaft style)
|
| SCIX1000D Complete Homogenizer Package Viscous Oils G20 |
Best for liquids with similar viscosity to thick oils. Heat oils before use to decrease viscosity. Max volume 800mL, min depth of insertion: 150mm (Sealed shaft style).
|
| SCIX1000D Complete Homogenizer Package Solids G20 |
Best for liquids with solids within a liquid that need to be sheared (tissues, cells, etc). Max volume 5000mL, min depth of insertion: 215mm (Sealed shaft style).
|
| Packages |
Details |
| SCIX 1000D Complete Homogenizer Package Aqueous G20 |
Best for liquids with similar viscosity to water. Max volume 5000mL, min depth of insertion depth: 215mm (Sealed shaft style)
|
| SCIX 1000D Complete Homogenizer Package Emulsions G20 |
Best for liquids with similar viscosity to light oils. Max volume 2900mL, min depth of insertion: 215mm (Sealed shaft style)
|
| SCIX1000D Complete Homogenizer Package Viscous Oils G20 |
Best for liquids with similar viscosity to thick oils. Heat oils before use to decrease viscosity. Max volume 800mL, min depth of insertion: 150mm (Sealed shaft style).
|
| SCIX1000D Complete Homogenizer Package Solids G20 |
Best for liquids with solids within a liquid that need to be sheared (tissues, cells, etc). Max volume 5000mL, min depth of insertion: 215mm (Sealed shaft style).
|
Specifications
| Feature |
Value |
| Speed range [1 / min] 115V version |
4,000-35,000 |
| Motor power [W] |
1,050 |
| Digital display type |
LCD |
| Speed display |
Yes |
| Volume, max. (H2O) [l] |
2 |
| Noise without tools, max. [dB] |
78 |
| Dispersing tools available |
T 6, T 10, T 17, T 20, G 20 |
| Power supply [V] |
115VAC, 60Hz or 220VAC, 50Hz |
| Weight [kg] |
2.1 |
| Height [mm] |
290 |
| Diameter [mm] |
75 |
| Degree of protection according to DIN EN 60529 |
IP20 |
| Overheating protection |
Yes |
| Overload protection |
Yes |
| Motor type |
DC |
| Direction of rotation agitator shaft |
CCW |
| Operating mode |
Short-term operation |
| Certification |
CE |
| Feature |
Value |
| Speed range [1 / min] 115V version |
4,000-35,000 |
| Motor power [W] |
1,050 |
| Digital display type |
LCD |
| Speed display |
Yes |
| Volume, max. (H2O) [l] |
2 |
| Noise without tools, max. [dB] |
78 |
| Dispersing tools available |
T 6, T 10, T 17, T 20, G 20 |
| Power supply [V] |
115VAC, 60Hz or 220VAC, 50Hz |
| Weight [kg] |
2.1 |
| Height [mm] |
290 |
| Diameter [mm] |
75 |
| Degree of protection according to DIN EN 60529 |
IP20 |
| Overheating protection |
Yes |
| Overload protection |
Yes |
| Motor type |
DC |
| Direction of rotation agitator shaft |
CCW |
| Operating mode |
Short-term operation |
| Certification |
CE |
