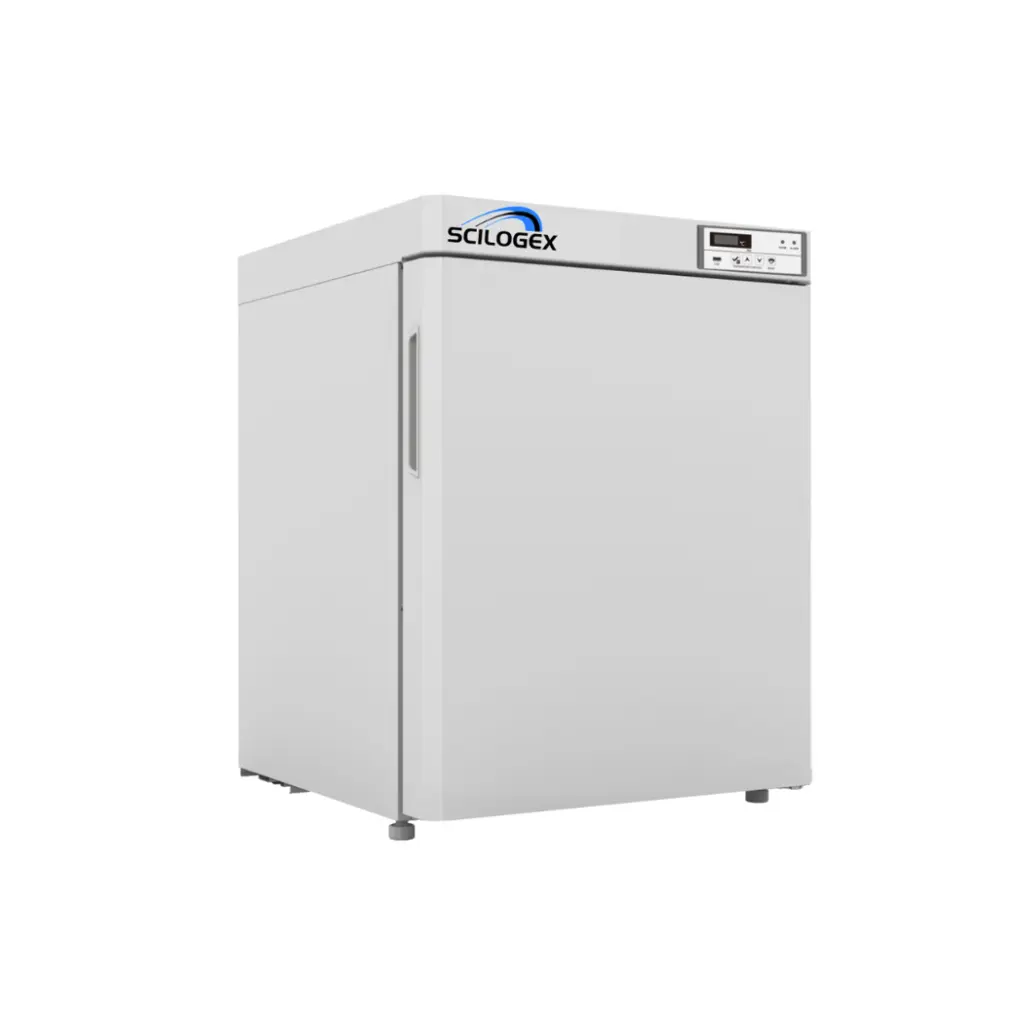

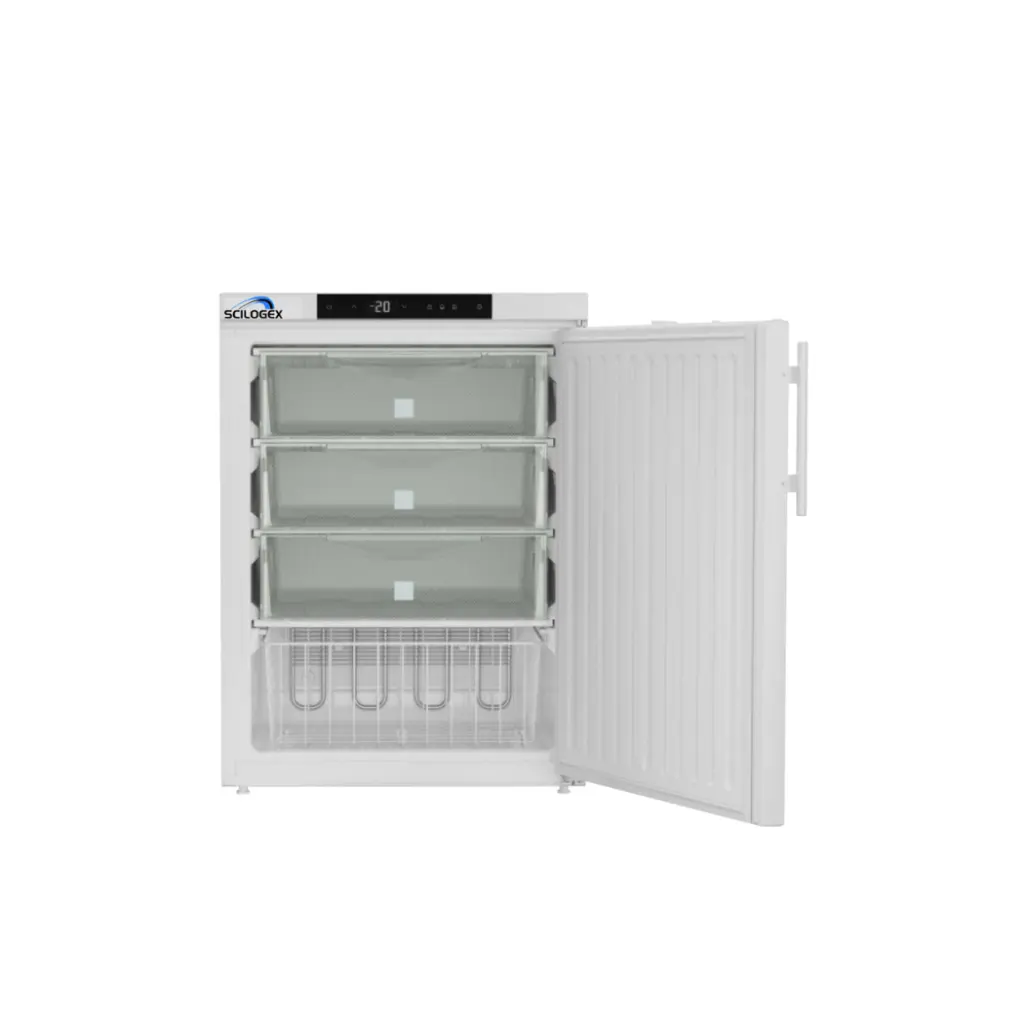

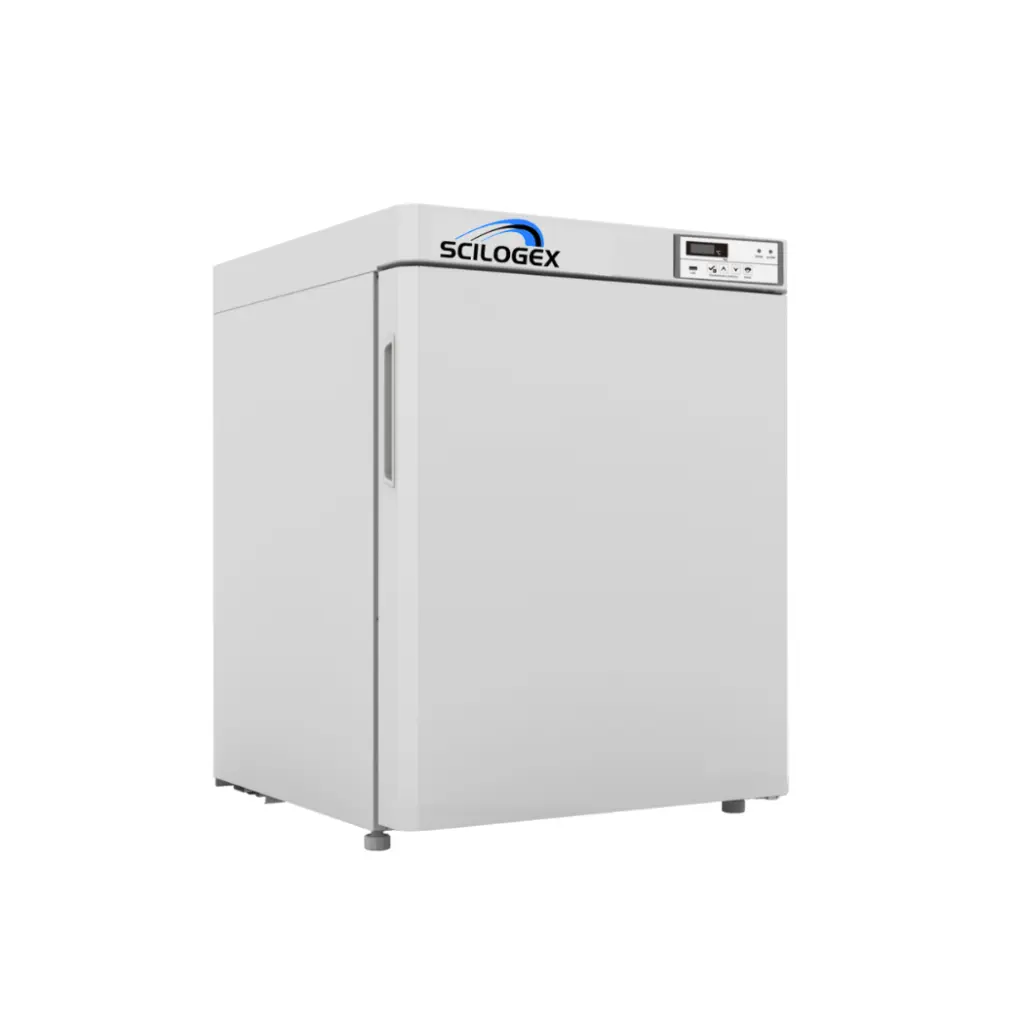

So-Low Undercounter and Countertop Freezers

Undercounter and benchtop lab and pharmacy freezers are available in temperature of -20°C, -25°C, and -30°C

Model

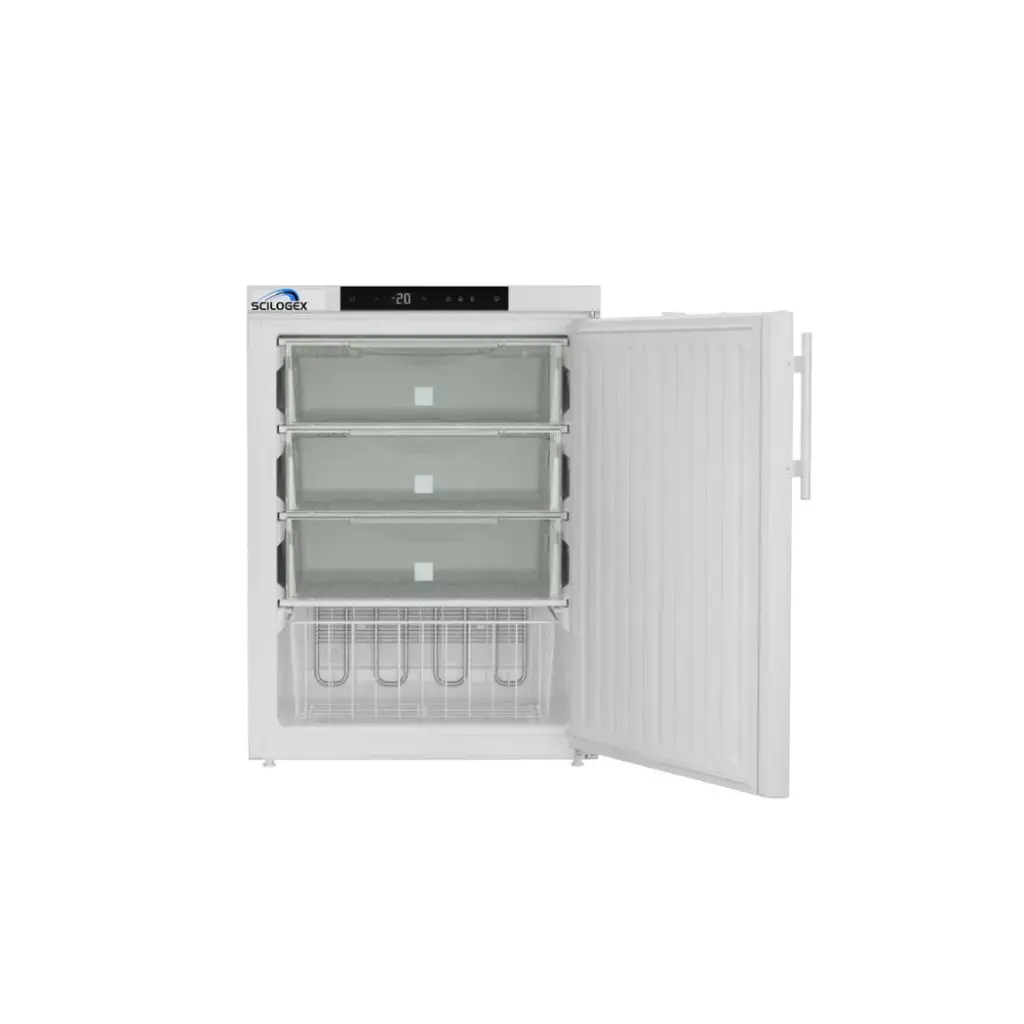

- [LFBFS05W1HC] LFBFS05W1HC (-9ºC to -26ºC, 4.4 cu.ft., Manual defrost, 115V)
- [MV20-1.5UCF] MV20-1.5UCF(-20ºC, 1.5 cu.ft., Manual defrost, 115V)
- [MV30-4UCF] MV30-4UCF(-25ºC, 4 cu.ft., Manual defrost, 115V, datalogging)
- [MV40-4UCF] MV40-4UCF(-40ºC, 4 cu.ft., Manual defrost, 115V, datalogging)

This combination does not exist.

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Product Specifications:

Model	MV20-1.5UCF	MV30-4UCF	LFBFS05W1HC	MV40-4UCF
Capacity [Cubic Feet]	1.5 Cu. Ft.	3.2 Cu. Ft.	4.4 Cu. Ft.	3.2 Cu. Ft.
Capacity [Liters]	42 Liters	9 Liters	124 Liters	90 Liters
Temperature Range [°C]	-20°C	-10°C to -25°C	-9°C to -26°C	-30°C to -40°C
Temperature Range [°C]	-4°F	14°F to -13°F	16°F to -15°F	-4°F to -40°F
Dimensions	[ W x D x H ]
Exterior [Inches]	18.5" x 19.5" x 19.5"	27.75" x 27.75" x 34"	23.5" x 24.25" x 32.5"	27.75" x 27.75" x 34"
Interior [Inches]	14" x 13.25" x 14.5"	19.5" x 19.25" x 20.75"	18" x 17.75" x 26.25"	19.5" x 19.25" x 20.75"
Exterior [Centimeters]	46 x 49 x 49	70 x 70 x 86	59 x 61 x 82	70 x 70 x 86
Interior [Centimeters]	35 x 33 x 36	50 x 49 x 53	45 x 45 x 63	50 x 49 x 53

Electrical Specifications:

Model	MV20-1.5UCF	MV30-4UCF	LFBFS05W1HC	MV40-4UCF
Voltages Available	115 Volts 60 Hertz 1 Phase
Amperage	15 Amp Dedicated Line	15 Amp Dedicated Line 1.66 Running Amps	15 Amp Dedicated Line 2.5 Running Amps	15 Amp Dedicated Line 4.19 Running Amps
NEMA Configuration	NEMA 5-15
Certification(s)		UL Listed	ETL Listed	UL Listed

Model	MV20-1.5UCF	MV30-4UCF	LFBFS05W1HC	MV40-4UCF
Voltages Available	115 Volts 60 Hertz 1 Phase
Amperage	15 Amp Dedicated Line	15 Amp Dedicated Line 1.66 Running Amps	15 Amp Dedicated Line 2.5 Running Amps	15 Amp Dedicated Line 4.19 Running Amps
NEMA Configuration	NEMA 5-15
Certification(s)		UL Listed	ETL Listed	UL Listed

Control Specifications:

Model	MV20-1.5UCF	MV30-4UCF	LFBFS05W1HC	MV40-4UCF
Temperature Control	Digital Display
Temperature Alarm	Audible High / Low Alarm
Min / Max Temperature	NA	Display and Reset
Alarm Types	Door Ajar, Power Failure, Low Battery, Sensor Failure, USB Failure	NA	Door Ajar, Power Failure, Low Battery, Sensor Failure, USB Failure
Data Logging	Adjustable Intervals	Adjustable Intervals
Data Download	Via USB. PDF Format	Via USB. PDF Format
Backup Battery	Only Powers Alarm	Only Powers Alarm
Alarm Relay	Dry Contacts
Alarm Forwarding	NA	Yes	NA

Model	MV20-1.5UCF	MV30-4UCF	LFBFS05W1HC	MV40-4UCF
Temperature Control	Digital Display
Temperature Alarm	Audible High / Low Alarm
Min / Max Temperature	NA	Display and Reset
Alarm Types		Door Ajar, Power Failure, Low Battery, Sensor Failure, USB Failure	NA	Door Ajar, Power Failure, Low Battery, Sensor Failure, USB Failure
Data Logging		Adjustable Intervals		Adjustable Intervals
Data Download		Via USB. PDF Format		Via USB. PDF Format
Backup Battery		Only Powers Alarm		Only Powers Alarm
Alarm Relay		Dry Contacts
Alarm Forwarding		NA	Yes	NA

General Specifications:

Model	MV20-1.5UCF	MV30-4UCF	LFBFS05W1HC	MV40-4UCF
Defrost	Manual
Air Circulation	Gravity Flow	Direct Cooling	Gravity Flow	Direct Cooling
Compressor(s)	Hermetic Compressor
Refrigeration	R600a	R290
Insulation	Urethane Foam	US EPA and SNAP Approved	NA	US EPA and SNAP Approved
Opening	1 Front Door
Opening Type	Hinged
Door Material	Insulated Steel
Lockable Door	Keyed Lock	Recessed Keyed Lock	Keyed Lock
Access Porthole	3/8" Diameter	1" Diameter	3 Drawers, 1 Basket	1" Diameter
Storage	1 Fixed Shelves	2 Fixed Shelves, Base Shelf, Drawers	3 Drawers, 1 Basket	2 Fixed Shelves, Base Shelf, Drawers
Exterior	Painted Steel	Steel	Painted Steel
Interior	Steel	Painted Aluminum	Molded Polystyrol	Painted Aluminum
Leveling Legs	4	2	4	2
Warranty	1 Year Parts and Labor	2 Years Parts and Labor	3 Years Parts and Labor	2 Years Parts and Labor
Casters	NA	2	NA	2
Door Closure	NA	NA

Model	MV20-1.5UCF	MV30-4UCF	LFBFS05W1HC	MV40-4UCF
Defrost	Manual
Air Circulation	Gravity Flow	Direct Cooling	Gravity Flow	Direct Cooling
Compressor(s)	Hermetic Compressor
Refrigeration	R600a			R290
Insulation	Urethane Foam	US EPA and SNAP Approved	NA	US EPA and SNAP Approved
Opening	1 Front Door
Opening Type	Hinged
Door Material	Insulated Steel
Lockable Door	Keyed Lock		Recessed Keyed Lock	Keyed Lock
Access Porthole	3/8" Diameter	1" Diameter	3 Drawers, 1 Basket	1" Diameter
Storage	1 Fixed Shelves	2 Fixed Shelves, Base Shelf, Drawers	3 Drawers, 1 Basket	2 Fixed Shelves, Base Shelf, Drawers
Exterior	Painted Steel	Steel	Painted Steel
Interior	Steel	Painted Aluminum	Molded Polystyrol	Painted Aluminum
Leveling Legs	4	2	4	2
Warranty	1 Year Parts and Labor	2 Years Parts and Labor	3 Years Parts and Labor	2 Years Parts and Labor
Casters	NA	2	NA	2
Door Closure	NA	NA	NA	NA

Downloadable PDFs

MV20-1.5UCF Specification Data Sheet

MV30-4UCF Specification Data Sheet

LFBFS05W1HC Specification Data Sheet

MV40-4UCF Specification Data Sheet
