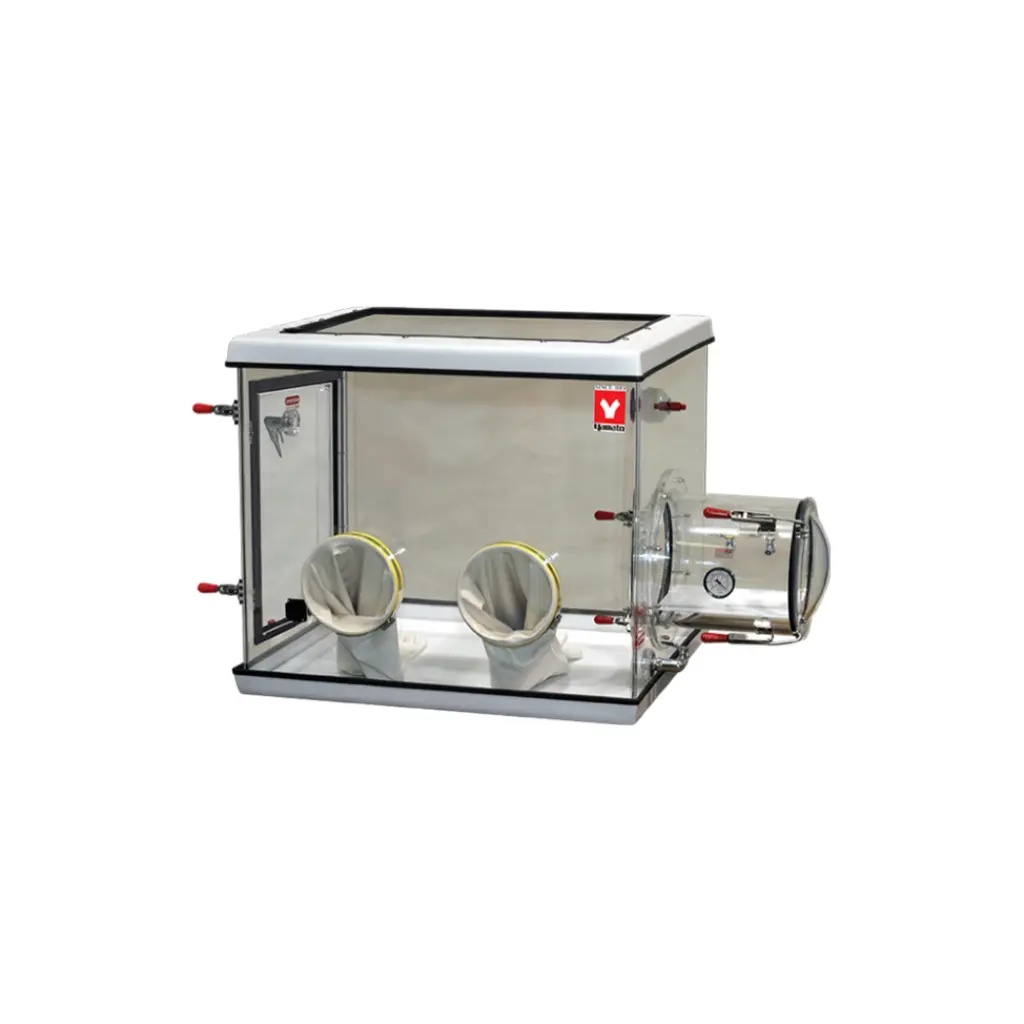

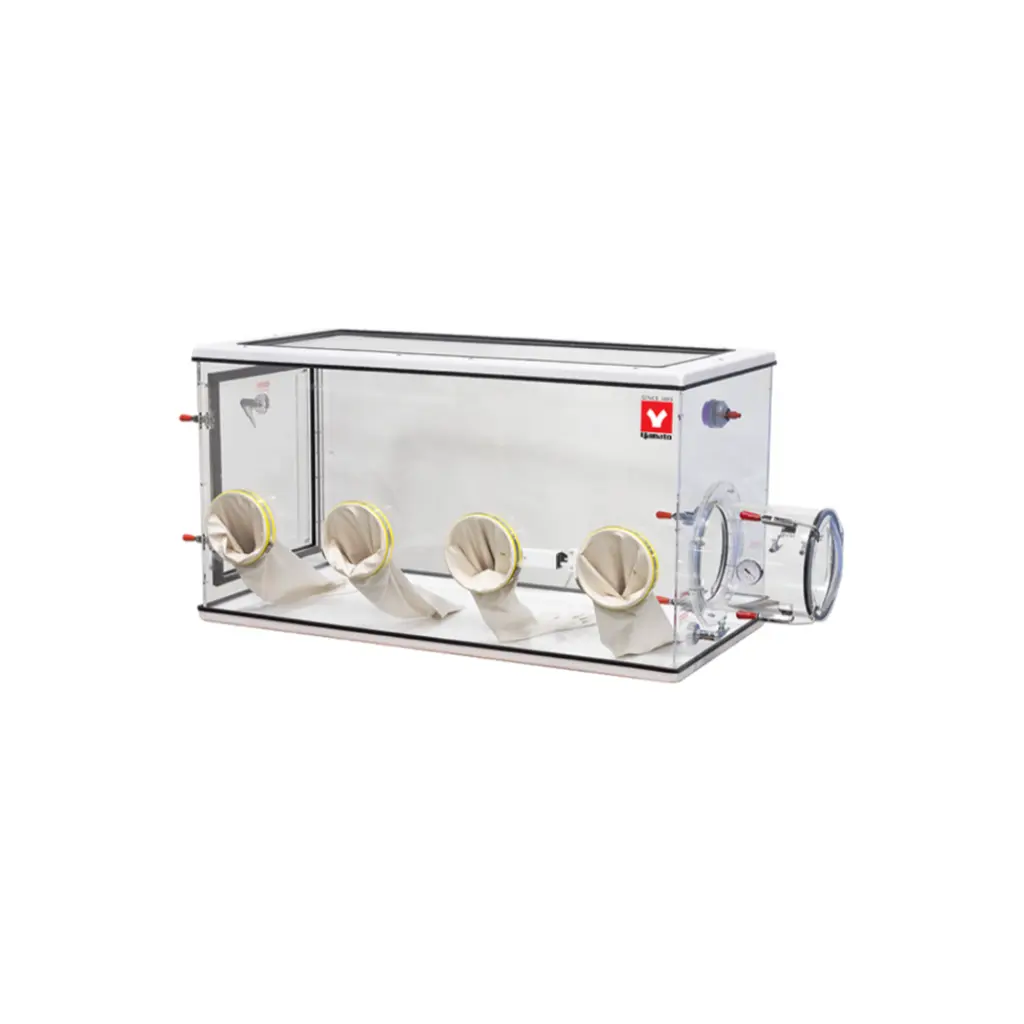

Yamato Compact Glove Boxes

A completely sealed glove box with transfer chamber and flat side access door for product and personnel protection.

Model
- [797059932252] SG828
- [797059932269] SG835
- [797059932276] SG848
- [797059932283] SG860

This combination does not exist.

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

SG828/835/848/860

Made in the USA
All models feature high visibility interior, cleanliness, safety, complete containment, portability and a draft-free atmopshere
All models are complete systems, nothing needs to be added except gas of choice: nitrogen, argon or other inert gases
Installed purging valves are ideal for lowering oxygen and humidity levels
Very useful when working with toxic substances, asbestos, fibers, sewage residue and harmful liquid vapors

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	SG828	SG835	SG848	SG860
Gloves	2 gloves	2 gloves	3 gloves	4 gloves
RECOMMENDED OPERATIONAL PRESSURE
* For containment purposes	-0.5 of water column (0.93 torr)
* For isolation purposes	0.5” of water column (0.93 torr)
* Main Chamber
Maximum pressure	+6” of water column (11.2 torr)
Maximum vacuum	-6” of water column (11.2 torr)
* Transfer Chamber
Maximum pressure	Not engineered to support positive pressure
Maximum vacuum	-26” of Hg (660 torr)
Inside dimension (W x D x H)	28” x 23” x 29” 710 x 580 x 740 mm	35” x 29”x 30” 890 x 740 x 760 mm	48” x 29” x 32” 1220 x 740 x 810 mm	60” x 29” x 32” 1524 x 740 x 810 mm
Outside dimensions (Includes transfer chamber 12” long)	43” x 24” x 31” 1100 x 610 x 790 mm	49” x 30” x 31” 1250 x 760 x 790 mm	63” x 31” x 35” 1600 x 790 x 860 mm	76” x 32” x 35” 1930 x 812 x 890 mm
Access door opening	15.5” x 22” h 400 x 560 mm	21.5” x 22” h 546 x 560 mm	21.5” x 24” h 546 x 610 mm	21.5” x 24” h 546 x 610 mm

Click on the links below to download the associated PDFs.
