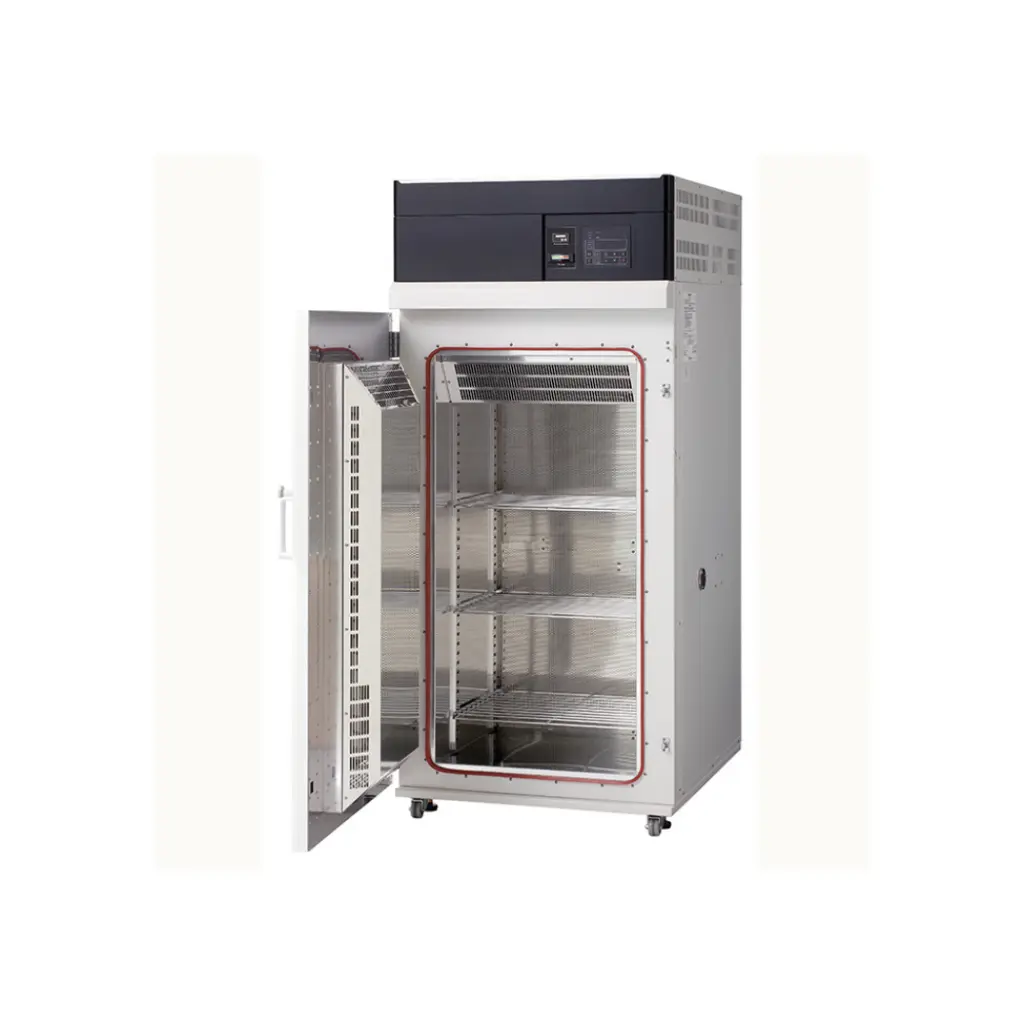

Yamato DES & DTS Series Forced Convection Cleanroom Ovens

Yamato DES & DTS Series Forced Convection Cleanroom Ovens

Space saving, large capacity forced convection Class 100 clean oven

$ 27,125.00 27125.0 USD $ 27,125.00 In stock

$ 0.00

Model
- [797059926930] DES830
- [797059926947] DTS830

This combination does not exist.

Add to cart Buy now

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

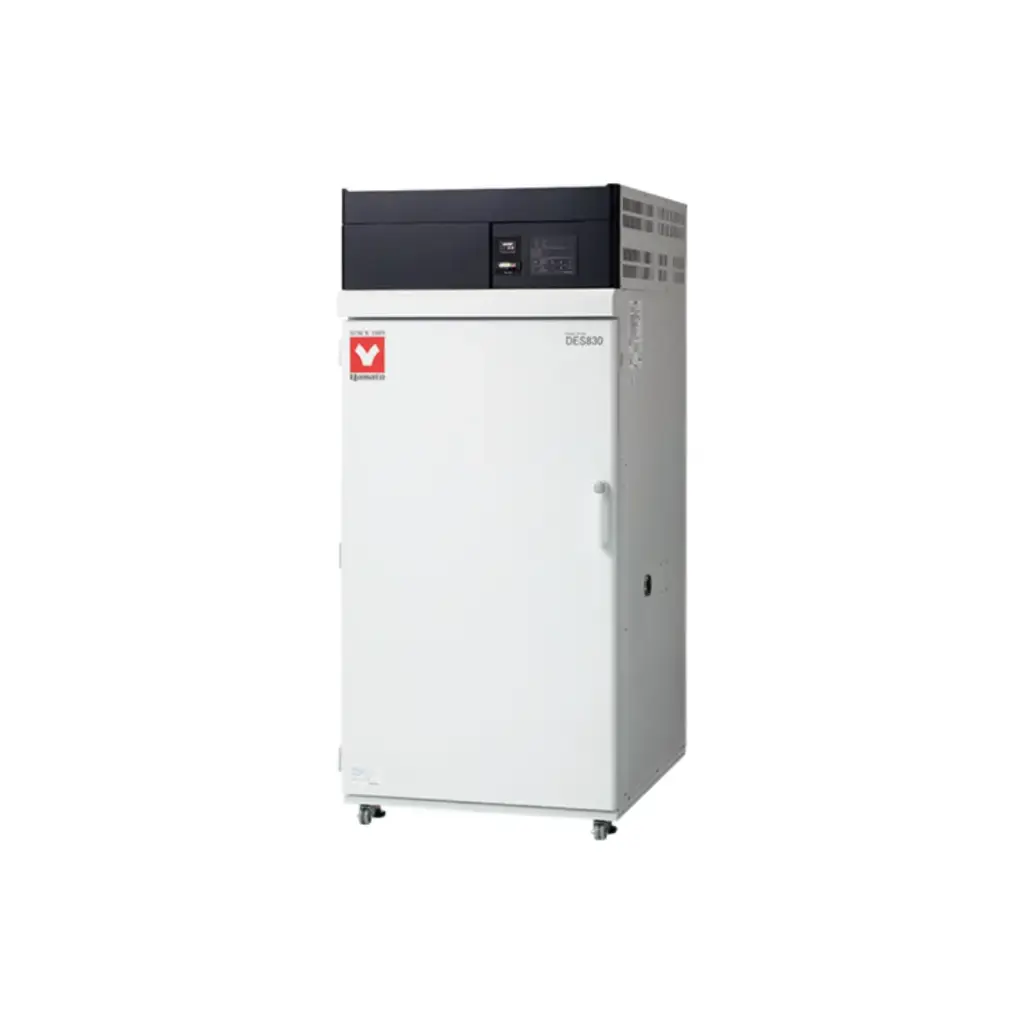

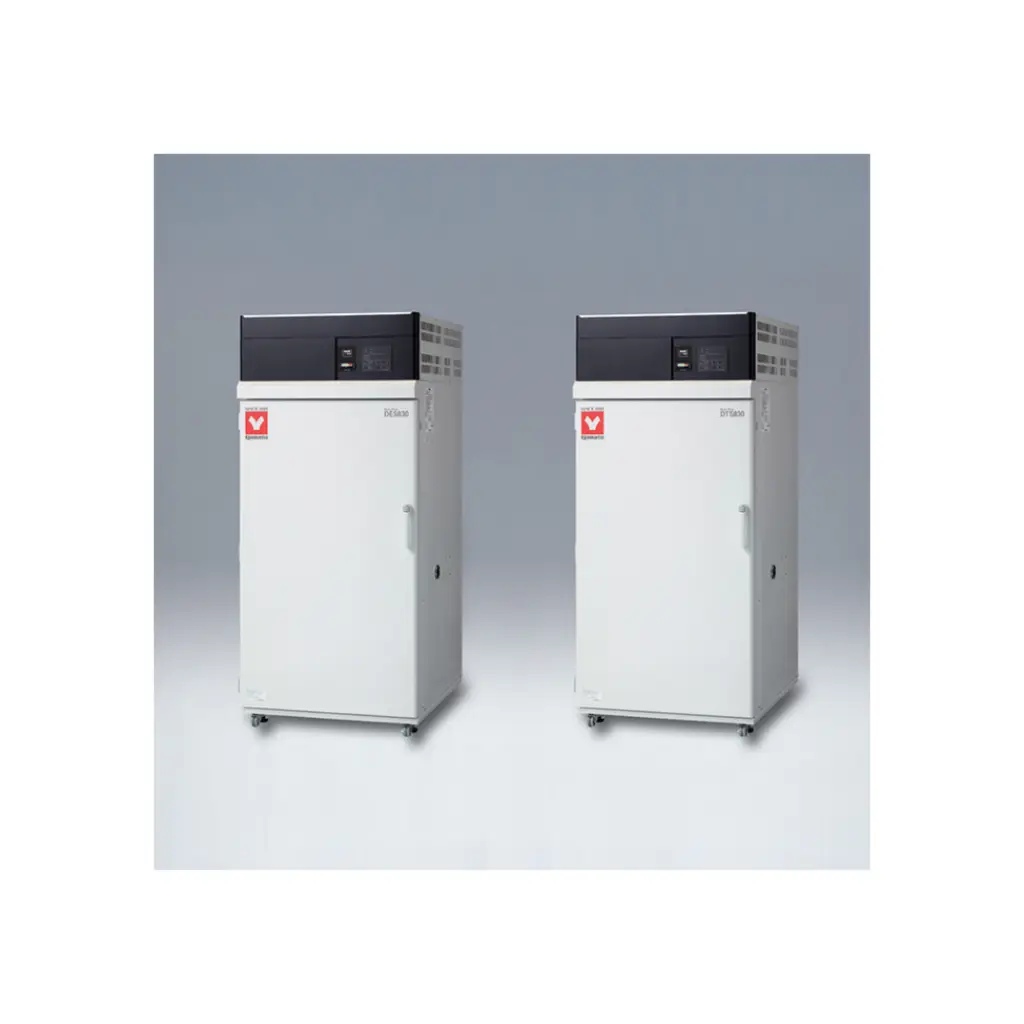

DES830 / DTS830

Features

Improved visibility and operability of control panel

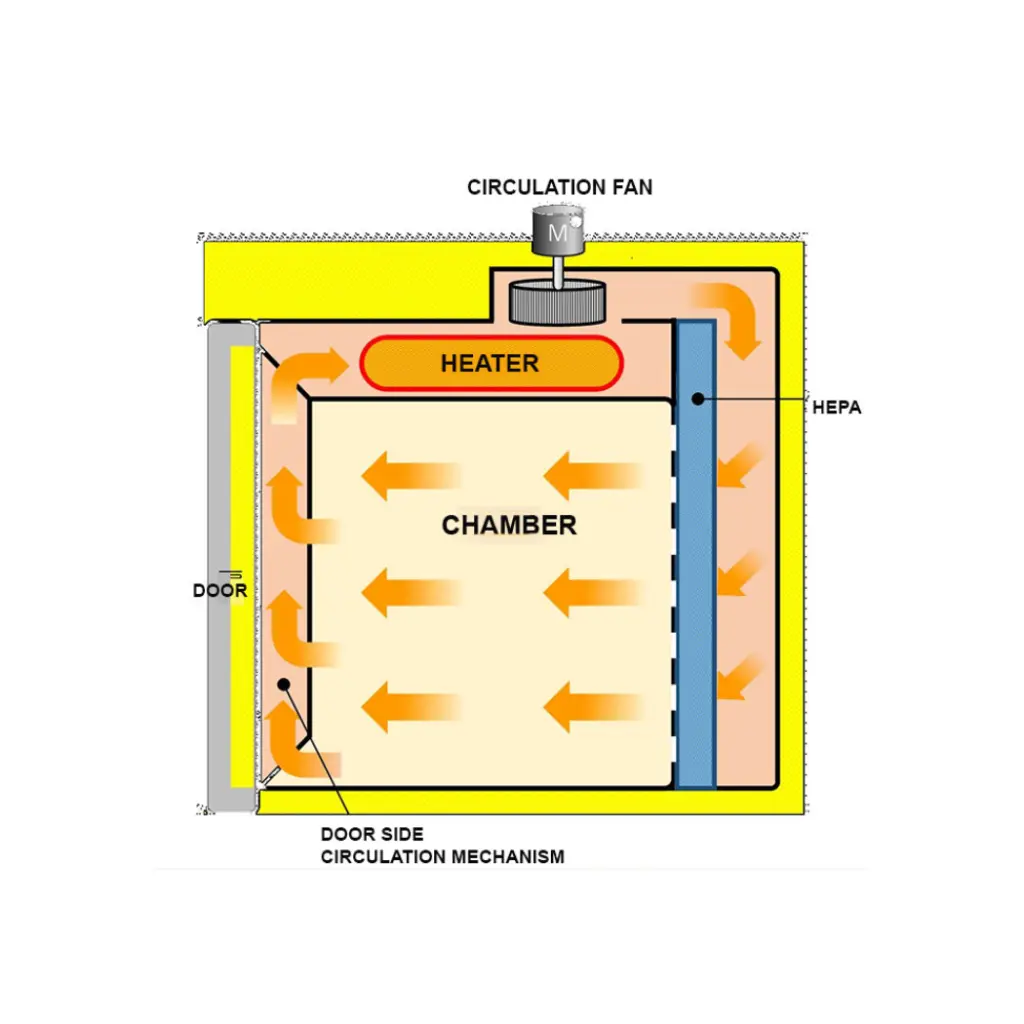

Stable cleanliness through forced circulation with rear exhaust
Displays power consumption, CO₂ emissions and heater manipulated variables on the control panel
Incorporates a maximum of 99 steps, 99 patterns program controller with repeat function
Offers several options such as recorder, manual/auto damper, N₂ gas introducer with flow meter and emergency switch
DES830 convertible to high performance filter type maintaining Class 100 at stable and fluctuating temperature up to a maximum of 200°C

Your choice of laboratory oven can have a big effect on your daily lab routines.

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	DES830	DTS830
Circulation method	Forced convection
Operating temp. range	Room temperature +30 to 260°C	Room temperature +30 to 360°C
Temp. control accuracy	±0.5°C at 260°C	±0.5°C at 360°C
Temp. fluctuation	±0.5°C at 260°C	±0.5°C at 360°C
Temp. distribution accuracy	±2.0°C at 260°C	±5.0°C at 360°C
Temp. gradient	±6.0°C at 260°C	±10.0°C at 360°C
Max. temp. reaching time	~70 min.	~80 min.
Clean level	Class100 (when temperature is stable)
Interior material	Stainless steel
Exterior material	Cold rolled steel plate with melamine resin baking finish
Heat insulating material	Glass wool
Heater	6.0kW (stainless steel pipe heater)	9.0kW (stainless steel pipe heater)
Fan type	Scirocco fan, condenser type motor 200W x 2
Differential pressure meter	Analog type (0 ~ 300Pa)

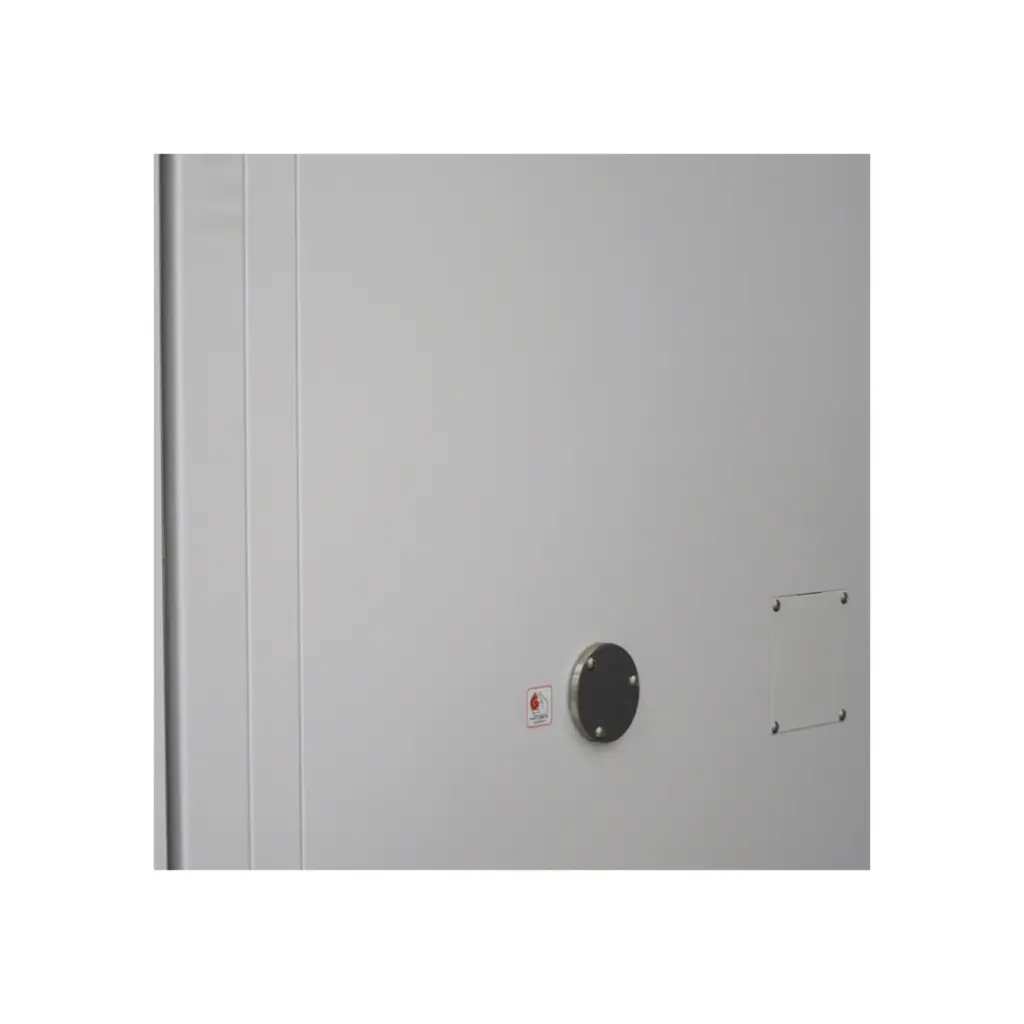

Cable port	Inner diameter: 33mm×1 (right side)
Filter	Heat resistant HEPA filter (dust-collection efficiency >99.97% with a 0.3μm particle)
Caster wheels / adjuster	Free swivel caster wheels without stopper / level adjuster (2 at front)
Temp. control / setting method	PID V control / Digital setting with ▲/▼ keys
Temp. display system	Top screen: green 4-digit digital LED (resolution 1°C), Bottom screen: orange 5-digit digital LED (resolution 1°C)
Other indications	LED indicates temperature patterns for heating/stabilizing/cooling
Operation functions	Fixed temperature operation, Program operation (maximum 99 steps up to 99 patterns, with repeat operation function), Timer or clock operation function (Fixed temperature operation w/ auto start/auto stop/quick auto stop, program operation auto start)
Additional functions	Power-on Time and Operation Time Accumulation Monitor (up to 65,535 hours); Calibration Offset; Monitoring Display for Accumulated Power Consumption, Total CO₂ Emissions, and Heater Operation Output; Power Recovery Mode; Setting Data Backup and Recovery
Sensor	K type thermocouple double sensor (for temperature control and independent overheat prevention device)
Heater control	Triac with zero-cross control
Safety device	Self-diagnostic functions (Detection for Temp. Sensor Failure, Triac Short Circuit, Automatic overheating prevention, Heater Line Disconnect, Main Relay Contact Damage ), Earth leakage breaker, Fan Motor Failure, Key Lock Function, Independent overheating prevention device
Earth leakage breaker	30A	40A
Leak Current/Short Circuit/Over-current Protection, Rated Current Sensitivity 30mA
Door switch	Door open: fan motor and heater circuit off, Door close: fan motor and heater circuit on
Internal dimensions	620×480×1100 mm (WxDxH)
External dimensions**	850×1080×1955 mm (WxDxH)
Internal capacity	327L
Weight	~335 kg
Withstand load of shelf	~30 kg / shelf
Number of shelf bracket step / pitch	35 steps / 30mm
Power supply 50/60Hz (V±10%)	AC220V, three phase, 16A (no plug, round terminal)	AC220V, three phase, 24A (no plug, round terminal)
Included accessories	Shelf and brackets
Shelf plate / bracket	3 pcs. / 6 pcs.

Model	DES830	DTS830
Circulation method	Forced convection
Operating temp. range	Room temperature +30 to 260°C	Room temperature +30 to 360°C
Temp. control accuracy	±0.5°C at 260°C	±0.5°C at 360°C
Temp. fluctuation	±0.5°C at 260°C	±0.5°C at 360°C
Temp. distribution accuracy	±2.0°C at 260°C	±5.0°C at 360°C
Temp. gradient	±6.0°C at 260°C	±10.0°C at 360°C
Max. temp. reaching time	~70 min.	~80 min.
Clean level	Class100 (when temperature is stable)
Interior material	Stainless steel
Exterior material	Cold rolled steel plate with melamine resin baking finish
Heat insulating material	Glass wool
Heater	6.0kW (stainless steel pipe heater)	9.0kW (stainless steel pipe heater)
Fan type	Scirocco fan, condenser type motor 200W x 2
Differential pressure meter	Analog type (0 ~ 300Pa)
Cable port	Inner diameter: 33mm×1 (right side)
Filter	Heat resistant HEPA filter (dust-collection efficiency >99.97% with a 0.3μm particle)
Caster wheels / adjuster	Free swivel caster wheels without stopper / level adjuster (2 at front)
Temp. control / setting method	PID V control / Digital setting with ▲/▼ keys
Temp. display system	Top screen: green 4-digit digital LED (resolution 1°C), Bottom screen: orange 5-digit digital LED (resolution 1°C)
Other indications	LED indicates temperature patterns for heating/stabilizing/cooling
Operation functions	Fixed temperature operation, Program operation (maximum 99 steps up to 99 patterns, with repeat operation function), Timer or clock operation function (Fixed temperature operation w/ auto start/auto stop/quick auto stop, program operation auto start)
Additional functions	Power-on Time and Operation Time Accumulation Monitor (up to 65,535 hours); Calibration Offset; Monitoring Display for Accumulated Power Consumption, Total CO₂ Emissions, and Heater Operation Output; Power Recovery Mode; Setting Data Backup and Recovery
Sensor	K type thermocouple double sensor (for temperature control and independent overheat prevention device)
Heater control	Triac with zero-cross control
Safety device	Self-diagnostic functions (Detection for Temp. Sensor Failure, Triac Short Circuit, Automatic overheating prevention, Heater Line Disconnect, Main Relay Contact Damage ), Earth leakage breaker, Fan Motor Failure, Key Lock Function, Independent overheating prevention device
Earth leakage breaker	30A	40A
Earth leakage breaker	Leak Current/Short Circuit/Over-current Protection, Rated Current Sensitivity 30mA
Door switch	Door open: fan motor and heater circuit off, Door close: fan motor and heater circuit on
Internal dimensions	620×480×1100 mm (WxDxH)
External dimensions**	850×1080×1955 mm (WxDxH)
Internal capacity	327L
Weight	~335 kg
Withstand load of shelf	~30 kg / shelf
Number of shelf bracket step / pitch	35 steps / 30mm
Power supply 50/60Hz (V±10%)	AC220V, three phase, 16A (no plug, round terminal)	AC220V, three phase, 24A (no plug, round terminal)
Included accessories	Shelf and brackets
Shelf plate / bracket	3 pcs. / 6 pcs.

* Conditions: temperature and humidity: 23°C+, 65% RH ±20%, atmospheric pressure 86kPa ~106kPa (no load)
** Protrusions excluded.
