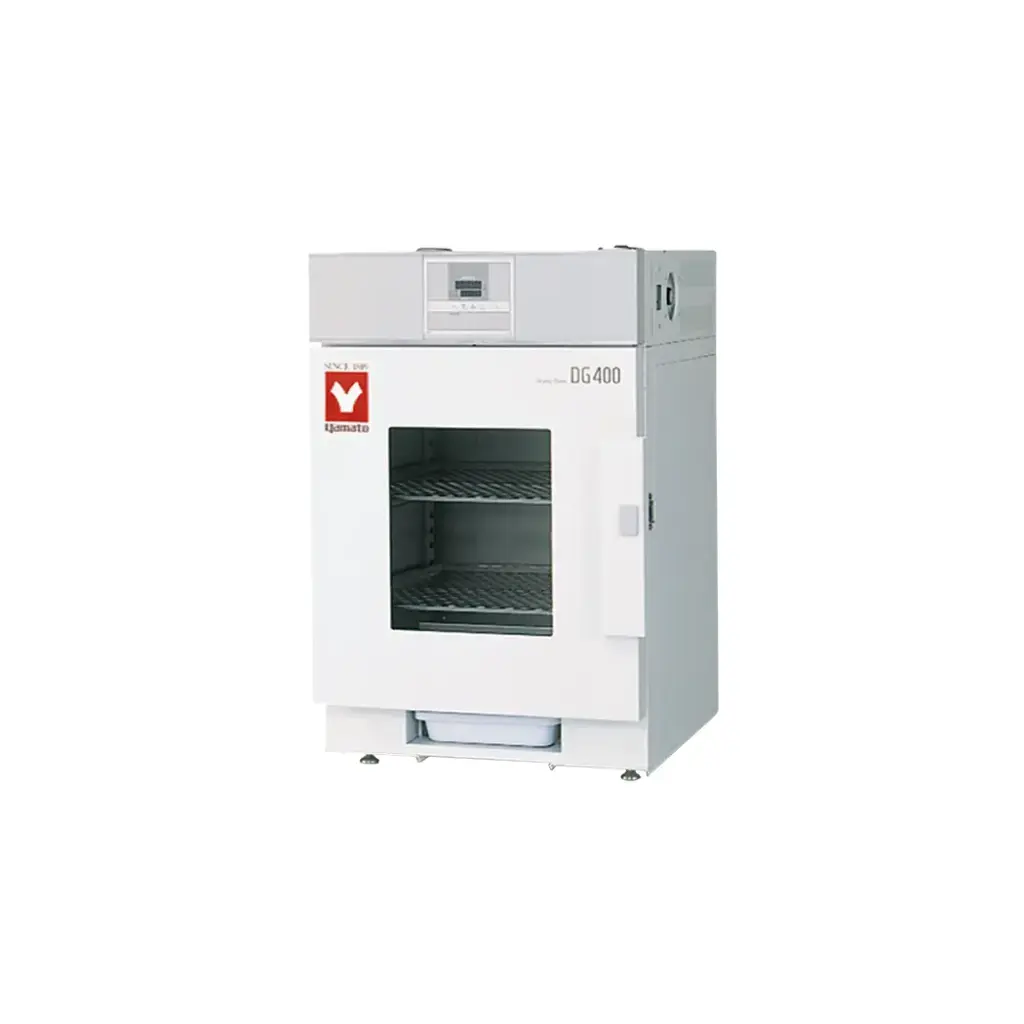

Yamato DG Series Glassware Drying Natural Convection Ovens

Natural convection oven for glassware drying

Model
- [797059926336] DG400C - 115V
- [797059926343] DG410C - 220V
- [797059926350] DG440C - 115V
- [797059926367] DG450C - 220V
- [797059926374] DG800C - 115V
- [797059926381] DG810C - 220V
- [797059926398] DG840C - 115V
- [797059926404] DG850C - 220V

This combination does not exist.

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

DG400C/410C/440C/450C/800C/810C/840C/850C

Large window for easy observation
Can be used to store instruments after drying
Highly efficient heat insulation material for both internal and external structure
Adjustable foot for stability on uneven floors
Mobile on casters (DG800C/810C/840C/850C)
Equipped with stainless steel pipe heater and water receiving plate at the bottom
Stainless steel interior, easy to clean and highly resistant to corrosion
DG440C/450C/840C/850C installed with filter at air in-take port, exhaust fan and germicidal lamp for fast drying
Dial setting and digital display of temperature control and timer

Self-diagnostic functions, calibration offset, independent overheat prevention, over current leakage breaker, key lock and auto recovery after power failure.
- (Note: Accurate temperature control may not be possible with heat generating samples in the chamber)

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

MODEL	DG400C DG410C	DG440C DG450C	DG800C DG810C	DG840C DG850C
System	Natural convection	Natural / Forced convection
Operating Temp. Range	RT+5~70°C
Interior Material	Stainless steel
Temp. Setting Method	Digital setting by ▲/▼ keys
Heater	SUS pipe heater 1.0kW	SUS pipe heater 1.34kW
Temp. Controller	PID control with microprocessor
Operation Functions	Fixed temperature, auto stop, auto start, quick auto stop
Sensor	Temp. controller: K thermocouple, Overheat protection: Liquid-expansion temp. controller
Exhaust Port	I.D. 34mm × 2	Axial flow fan forced exhaust	I.D. 34mm × 2	Axial flow fan forced exhaust
Suction Port	I.D. 30mm × 2	Set air suction filter	I.D. 30mm × 2	Set air suction filter
Germicidal Lamp	--	15W×1	15W×1
Internal Dimensions WxDxH	450×450×450 mm	620×600×1195 mm
External Dimensions WxDxH	504×562×788 mm	504×562×820 mm	674×711×1586 mm	674×711×1618 mm
Internal Capacity	92L	445L
Weight	~45kg	~48kg	~78kg	~83kg
Door	Single door, silicon rubber packing
Observation Window	Standard glass 3mm W250 x H300mm	Standard glass 3mm W250 x H700mm
Shelf Plate Load	15kg/pc.
Shelf Rest / Pitch	10 steps / 30mm	29 steps / 30mm
Power Source	AC115V (with plug) AC220V (no plug, round terminal)
Included Accessories	Shelf plate and brackets, water receiving plate
Shelf Plate / Bracket	2pcs. / 4pcs.	4pcs. / 8pcs.
Water Receiving Plate	1pc.

MODEL	DG400C DG410C	DG440C DG450C	DG800C DG810C	DG840C DG850C
System	Natural convection			Natural / Forced convection
Operating Temp. Range	RT+5~70°C
Interior Material	Stainless steel
Temp. Setting Method	Digital setting by ▲/▼ keys
Heater	SUS pipe heater 1.0kW		SUS pipe heater 1.34kW
Temp. Controller	PID control with microprocessor
Operation Functions	Fixed temperature, auto stop, auto start, quick auto stop
Sensor	Temp. controller: K thermocouple, Overheat protection: Liquid-expansion temp. controller
Exhaust Port	I.D. 34mm × 2	Axial flow fan forced exhaust	I.D. 34mm × 2	Axial flow fan forced exhaust
Suction Port	I.D. 30mm × 2	Set air suction filter	I.D. 30mm × 2	Set air suction filter
Germicidal Lamp	--	15W×1		15W×1
Internal Dimensions WxDxH	450×450×450 mm		620×600×1195 mm
External Dimensions WxDxH	504×562×788 mm	504×562×820 mm	674×711×1586 mm	674×711×1618 mm
Internal Capacity	92L		445L
Weight	~45kg	~48kg	~78kg	~83kg
Door	Single door, silicon rubber packing
Observation Window	Standard glass 3mm W250 x H300mm		Standard glass 3mm W250 x H700mm
Shelf Plate Load	15kg/pc.
Shelf Rest / Pitch	10 steps / 30mm		29 steps / 30mm
Power Source	AC115V (with plug) AC220V (no plug, round terminal)
Included Accessories	Shelf plate and brackets, water receiving plate
Shelf Plate / Bracket	2pcs. / 4pcs.		4pcs. / 8pcs.
Water Receiving Plate	1pc.
