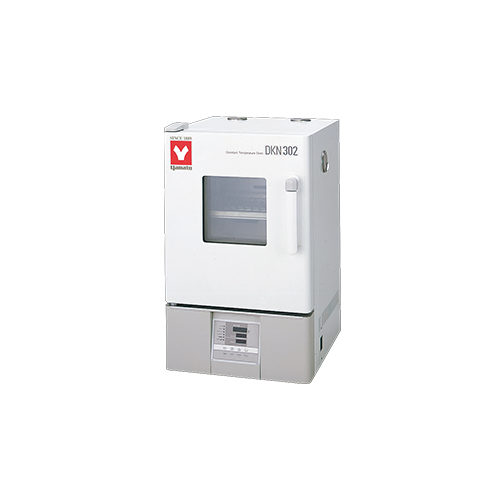

Yamato DKN Series Standard Programmable Forced Convection Ovens

Yamato DKN Series Standard Programmable Forced Convection Ovens

Yamato’s Bestseller! Programmable forced convection constant temperature ovens with extended functions and safety features

$ 2,770.00 2770.0 USD $ 2,770.00 In stock

$ 0.00

Model
- [797059926473] DKN302C - 115V
- [797059926480] DKN312C - 220V
- [797059926497] DKN402C - 115V
- [797059926503] DKN412C - 220V
- [797059926510] DKN602C - 115V
- [797059926527] DKN612C - 220V
- [797059926534] DKN812C - 220V
- [797059926541] DKN912C - 220V

This combination does not exist.

Add to cart Buy now

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

DKN302C/312C/402C/412C/602C/612C/812C/912C

Features

Bestseller based on excellent performance and affordability.
Superior temperature accuracy
DKN302C/312C/402C/412C/602C/612C models come with observation windows.
Programmable PID controller for easy program settings (30-step, 3-pattern program controller with repeat functions)
Fixed setting, Quick Auto stop, Auto stop, Auto start, Program operating modes with easy control capabilities
Increased safety and self-diagnostic functions
Overheating prevention and calibration off-set are possible with auxiliary functions
Easy to use and maintain
Built in exhaust ports.

Safety features

Self-diagnostic functions (Temperature sensor abnormal, Heater disconnection, SSR-short), Automatic overheating prevention, Electric leakage breaker with over current protection, Key lock function

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	DKN302C DKN312C	DKN402C DKN412C	DKN602C DKN612C	DKN812C	DKN912C
Circulation method	Forced air circulation
Operating temp. range	Room temp. +10°C~260°C	Room temp. +10°C~210°C
Temp. adjustment accuracy	±1°C (at 210°C)
Temp. distribution accuracy	±2.5°C (at 210°C)
Max. temp. reaching time	~90 min.	~90 min.	~90 min.	~60 min.	~60 min.
Interior/Exterior material	Stainless steel / Cold rolled steel plate with melamine resin baking finish
Heat insulating material	Glass wool
Heater	SUS pipe heater/0.8kW	SUS pipe heater/1.2kW	SUS pipe heater/1.5kW	SUS pipe heater/1.5kWx2	SUS pipe heater/1.8kWx2
Fan Type / Fan Motor	Scirocco fan, Condenser type motor 10W	1pc / 30W	2pc / 10W
Cable hole	30mm I.D. (on the right side) 1pc.
Exhaust port	30mm I.D. x 2 (on top)	30mm I.D.×2 (the back)
Observation window	180×180mm Chemical strengthening glassx3	250 x 280mm Chemical strengthening glassx3	None
Temp. controller	3 patterns program controller, PID control by microprocessor
Temp. setting method	Digital setting by ▲/▼ key
Temp. display	Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. with timer wait function
Operation function	Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop
Program mode	Program operation : 3 patterns, 30 steps (30 steps×1, 15 steps×2, 10 steps×3) Pattern repeat function
Additional functions	Calibration off-set function, Key lock, Uninterruptible power for memory
Heater circuit control	SSR control
Sensor	K-thermocouple
Safety device	Self diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection
Internal dimensions W×D×H	300×300×300 mm	450×450×450 mm	600×500×500 mm	600×500×1000 mm	1070×500×1000 mm
External dimensions W×D×H	410×451×670 mm	560×601×820 mm	710×651×870 mm	710×651×1608 mm	1180×651×1616 mm
Internal capacity	27L	90L	150L	300L	535L
Shelf plate with standard load	~15kg/piece
Shelf rest step number / Shelf rest pitch	9 steps / 30mm	11 steps / 30mm	13 steps / 30mm	29 steps / 30mm	29 steps x 2 / 30mm
Power source 50/60Hz	115V 7.5A (with plug) 220V 4.5A (no plug, round terminal)	115V 11A (with plug) 220V 6.5A (no plug, round terminal)	115V 12.5A (with plug) 220V 7A (no plug, round terminal)	220V 15A (no plug, round terminal)	220V 18A (no plug, round terminal)
Weight	~35kg	~50KG	~65kg	~110kg	~190kg
Included accessories	Shelf and brackets (stainless steel plate, 1 pc. on the bottom screwed, 2 pcs. for DKN912C)
Shelf plate / bracket	2 pcs. / 4 pcs.	2 pcs. / 4 pcs.	2 pcs. / 4 pcs.	4 pcs. / 8 pcs.	8 pcs. / 16 pcs.

Model	DKN302C DKN312C	DKN402C DKN412C	DKN602C DKN612C	DKN812C	DKN912C
Circulation method	Forced air circulation
Operating temp. range	Room temp. +10°C~260°C				Room temp. +10°C~210°C
Temp. adjustment accuracy	±1°C (at 210°C)
Temp. distribution accuracy	±2.5°C (at 210°C)
Max. temp. reaching time	~90 min.	~90 min.	~90 min.	~60 min.	~60 min.
Interior/Exterior material	Stainless steel / Cold rolled steel plate with melamine resin baking finish
Heat insulating material	Glass wool
Heater	SUS pipe heater/0.8kW	SUS pipe heater/1.2kW	SUS pipe heater/1.5kW	SUS pipe heater/1.5kWx2	SUS pipe heater/1.8kWx2
Fan Type / Fan Motor	Scirocco fan, Condenser type motor 10W			1pc / 30W	2pc / 10W
Cable hole	30mm I.D. (on the right side) 1pc.
Exhaust port	30mm I.D. x 2 (on top)			30mm I.D.×2 (the back)
Observation window	180×180mm Chemical strengthening glassx3	250 x 280mm Chemical strengthening glassx3		None
Temp. controller	3 patterns program controller, PID control by microprocessor
Temp. setting method	Digital setting by ▲/▼ key
Temp. display	Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. with timer wait function
Operation function	Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop
Program mode	Program operation : 3 patterns, 30 steps (30 steps×1, 15 steps×2, 10 steps×3) Pattern repeat function
Additional functions	Calibration off-set function, Key lock, Uninterruptible power for memory
Heater circuit control	SSR control
Sensor	K-thermocouple
Safety device	Self diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection
Internal dimensions W×D×H	300×300×300 mm	450×450×450 mm	600×500×500 mm	600×500×1000 mm	1070×500×1000 mm
External dimensions W×D×H	410×451×670 mm	560×601×820 mm	710×651×870 mm	710×651×1608 mm	1180×651×1616 mm
Internal capacity	27L	90L	150L	300L	535L
Shelf plate with standard load	~15kg/piece
Shelf rest step number / Shelf rest pitch	9 steps / 30mm	11 steps / 30mm	13 steps / 30mm	29 steps / 30mm	29 steps x 2 / 30mm
Power source 50/60Hz	115V 7.5A (with plug) 220V 4.5A (no plug, round terminal)	115V 11A (with plug) 220V 6.5A (no plug, round terminal)	115V 12.5A (with plug) 220V 7A (no plug, round terminal)	220V 15A (no plug, round terminal)	220V 18A (no plug, round terminal)
Weight	~35kg	~50KG	~65kg	~110kg	~190kg
Included accessories	Shelf and brackets (stainless steel plate, 1 pc. on the bottom screwed, 2 pcs. for DKN912C)
Shelf plate / bracket	2 pcs. / 4 pcs.	2 pcs. / 4 pcs.	2 pcs. / 4 pcs.	4 pcs. / 8 pcs.	8 pcs. / 16 pcs.
