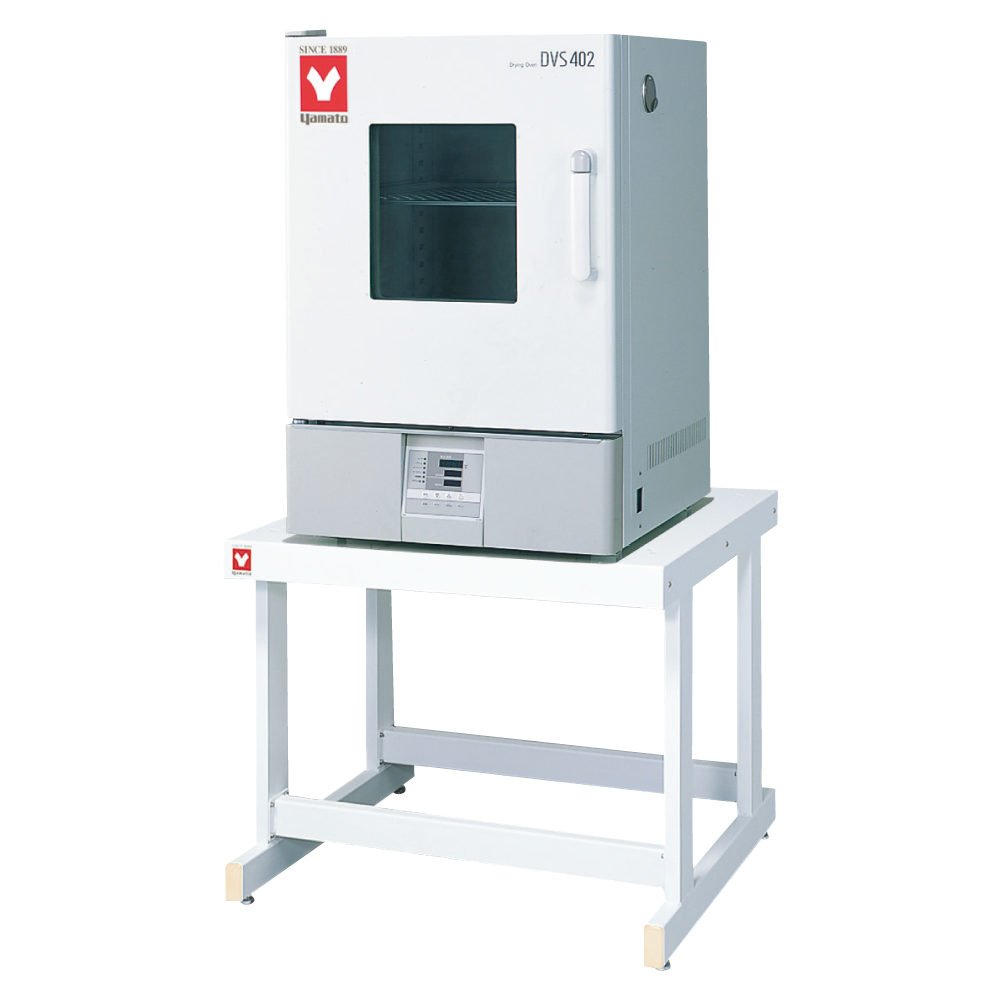

Yamato DVS Series Programmable Natural Convection Ovens

Yamato DVS Series Programmable Natural Convection Ovens

Programmable natural convection constant temperature drying ovens incorporating programmable operation functions and enhanced safety features and operability

$ 2,570.00 2570.0 USD $ 2,570.00 In stock

$ 0.00

Model
- [797059926299] DVS402C - 115V
- [797059926305] DVS412C - 220V
- [797059926312] DVS602C - 115V
- [797059926329] DVS612C - 220V

This combination does not exist.

Add to cart Buy now

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

DVS402C/412C/602C/612C

Operation and functions

Excellent temperature accuracy
Easy to use and maintain.
Equipped with a 6 pattern PID program controller with easy program settings (30 steps x 1, 15 steps x 2, 10 steps x 3)
Simultaneous display of set constant and measured temperature.
Quick Auto stop, Auto Stop, Auto Start operations.
Increased safety and self-diagnostic functions
Calibration off-set function

Safety features

Self-diagnostic functions (Temp. sensor abnormal, Heater disconnection, Internal communication error, temperature input circuit abnormality, Automatic overheat prevention function, SSR-short), Overheat prevention, Electric leakage breaker with over current protection.

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	DVS402C DVS412C	DVS602C DVS612C
Circulation method	Natural convection
Operating temp. range	Room temp.+5 to 260°C
Temp. control accuracy	±1.0°C (at 260°C)
Temp. distribution accuracy	±5.0°C (at 260°C)
Max. temp. reaching time	~90 min. (Room temp. +5°C to 260°C)
Interior material	Stainless steel
Exterior material	Cold rolled steel plate with melamine resin baking finish
Heat insulating material	Glass wool
Heater	Stainless pipe heater / 1.2kW	Stainless pipe heater / 1.36kW
Observation window	250×280 mm Chemically strengthened glass x 3
Cable hole	30 mm l.D.×1 pcs. (right side)
Exhaust port	30 mm l.D.×2 pcs. (on top)
Temp. controller	3 patterns program controller, PID control by microprocessor
Temp. setting method	Operation menu key and Digital setting by ▲/▼ key
Temp. display method	Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min.
Operation function	Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop
Program mode	Program operation: 6 pattern, 30 steps (30 steps×1, 15 steps×2, 10 steps×3)
Additional functions	Calibration off-set function, Key lock, Uninterruptible power for memory, Pattern repeat function
Heater circuit control	SSR control
Sensor	K-thermocouple
Safety device	Self diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Memory abnormal, Automatic overheating prevention), Overheat prevention, Electric leakage breaker with over current protection
Internal dimensions (W×D×Hmm)	450×490×450	600×540×500
External dimensions (W×D×Hmm)	560×601×820	710×651×870
Internal capacity	99L	162L
Shelf plate load	~15kg / pcs.
Shelf rest step number / pitch	9 steps / 30mm	13 steps / 30mm
Power source 50/60Hz	AC115V 12A (with plug) AC220V 6.5A (no plug, round terminal)	AC115V 13.5A (with plug) AC220V 7.5A (no plug, round terminal)
Weight	~48kg	~63kg
Included accessories	Shelf plate and brackets
Shelf plate / Shelf bracket	Stainless steel, 2 pcs. / 4 pcs.

Model	DVS402C DVS412C	DVS602C DVS612C
Circulation method	Natural convection
Operating temp. range	Room temp.+5 to 260°C
Temp. control accuracy	±1.0°C (at 260°C)
Temp. distribution accuracy	±5.0°C (at 260°C)
Max. temp. reaching time	~90 min. (Room temp. +5°C to 260°C)
Interior material	Stainless steel
Exterior material	Cold rolled steel plate with melamine resin baking finish
Heat insulating material	Glass wool
Heater	Stainless pipe heater / 1.2kW	Stainless pipe heater / 1.36kW
Observation window	250×280 mm Chemically strengthened glass x 3
Cable hole	30 mm l.D.×1 pcs. (right side)
Exhaust port	30 mm l.D.×2 pcs. (on top)
Temp. controller	3 patterns program controller, PID control by microprocessor
Temp. setting method	Operation menu key and Digital setting by ▲/▼ key
Temp. display method	Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min.
Operation function	Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop
Program mode	Program operation: 6 pattern, 30 steps (30 steps×1, 15 steps×2, 10 steps×3)
Additional functions	Calibration off-set function, Key lock, Uninterruptible power for memory, Pattern repeat function
Heater circuit control	SSR control
Sensor	K-thermocouple
Safety device	Self diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Memory abnormal, Automatic overheating prevention), Overheat prevention, Electric leakage breaker with over current protection
Internal dimensions (W×D×Hmm)	450×490×450	600×540×500
External dimensions (W×D×Hmm)	560×601×820	710×651×870
Internal capacity	99L	162L
Shelf plate load	~15kg / pcs.
Shelf rest step number / pitch	9 steps / 30mm	13 steps / 30mm
Power source 50/60Hz	AC115V 12A (with plug) AC220V 6.5A (no plug, round terminal)	AC115V 13.5A (with plug) AC220V 7.5A (no plug, round terminal)
Weight	~48kg	~63kg
Included accessories	Shelf plate and brackets
Shelf plate / Shelf bracket	Stainless steel, 2 pcs. / 4 pcs.
