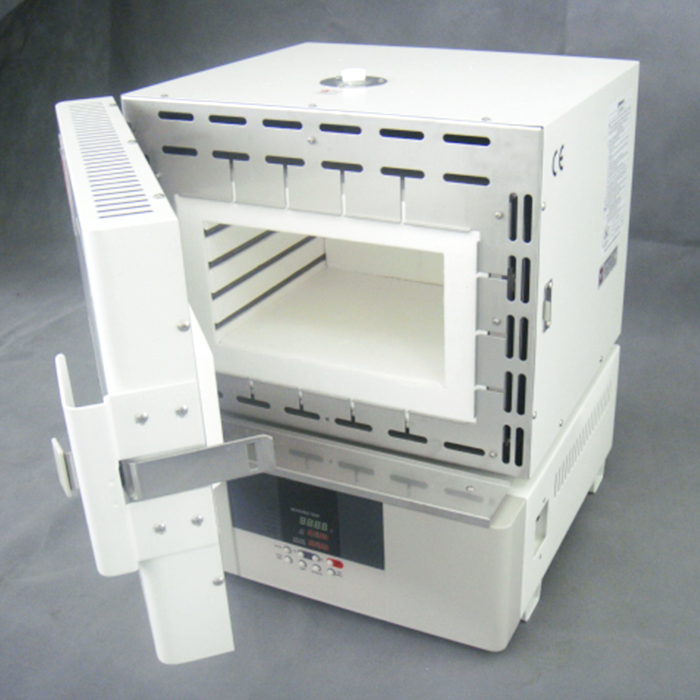

Yamato FO Series 11.3 to 30L Programmable Muffle Furnaces

Yamato FO Series 11.3 to 30L Programmable Muffle Furnaces

FO510CR/610CR/710CR/810CR

$ 4,395.00 4395.0 USD $ 4,395.00 In stock

$ 0.00

Model
- [797059927029] FO510CR
- [797059927036] FO610CR
- [797059927043] FO710CR
- [797059927050] FO810CR

This combination does not exist.

Add to cart Buy now

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

FO510CR/610CR/710CR/810CR

Reliable, consistent high heat.

Avoid delays and save time at work with Yamato’s standard lab muffle furnaces. Our muffle furnace models are a cut above the rest because of their capacity to supply reliable, consistent high heat.

We made sure to add top-quality parts that sustain high-temperature uniformity for your applications. Our standard units have energy-saving ceramic fiber as the internal material, an iron-chrome wire heater, and tightly sealed doors, which is highly beneficial when the maximum temperature exceeds 1000°C. Not only that, but they also have microprocessor-controlled thermoregulators, which provide outstanding repeatability.

Whether you’re doing heat treatments or quality control, you can rely on our multi-capacity Yamato FO series programmable muffle furnaces:

Yamato FO Series 1.5 to 9L Programmable Muffle Furnaces
Yamato FO Series 11.3 to 30L Programmable Muffle Furnace

Best features

Easy-to-use controller
Comes with communication ports
High-temperature accuracy at ±2.0°C
Upgraded with long life R-thermocouple sensors
Excellent heat tightness with a firmly sealed chamber door
Comes with a wide selection of space-saving compact units with a maximum inner capacity

Program operation of a maximum of 6 patterns: 30 steps x 1 pattern, 15 steps x 2 patterns, or 10 steps x 3 patterns
Safety features include self-diagnostic functions, calibration off-set, lock function, auto-recovery after power failure, earth leakage breaker, and automatic overheat prevention device
Selectable options include an exhaust system unit, N₂ gas loading device (with a flow meter), a temperature output terminal, a time up/alarm output terminal, and a sample tray

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	FO510CR	FO610CR	FO710CR	FO810CR
Operating temp. range	100~1150°C
Temp. control accuracy	±2°C (at 1150 ° C)
Max. temp. reaching time	~80min.
Exterior material	Cold rolled steel plate with baked-on melamine resin finish
Internal material	Ceramic fiber
Sensor	R-thermocouple
Heater	Iron-chrome wire
2.5kW	3kW	3.5kW	4kW
Exhaust port	ø20mm (top)
Cooling Fan Type	Axial fan motor
Temp. controller	PID control by microprocessor
Temp. setting/display method	Digital setting by▲▼ keys / Digital display
Operation function	Fixed temperature, quick auto stop, auto stop, auto start, program (maximum 6 patterns: 30 steps x 1 pattern, 15 steps x 2 patterns or 10 steps x 3 patterns)
Additional function	Calibration off-set, power failure compensation, key lock
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs.
Safety Device	Self diagnostic (memory error, heater disconnection, sensor error, SSR short curcuit), Electric leakage breaker, Overheat prevention device
Internal dimensions WxDxH	250×300×150 mm	250×350×200 mm	270×350×250 mm	300×400×250 mm
External dimensions WxDxH	507×504×627 mm	507×604×677 mm	507×605×727 mm	507×655×727 mm
Internal capacity	11.3L	17.5L	23.6L	30L
Power source (50/60Hz)	AC220V single phase 12A no plug, round terminal	AC220V single phase 15A no plug, round terminal	AC220V single phase 18A no plug, round terminal	AC220V single phase 20A no plug, round terminal
Weight	~44kg	~52kg	~58kg	~62kg
Included accessory	Exhaust port cap 1 pc.

Model	FO510CR	FO610CR	FO710CR	FO810CR
Operating temp. range	100~1150°C
Temp. control accuracy	±2°C (at 1150 ° C)
Max. temp. reaching time	~80min.
Exterior material	Cold rolled steel plate with baked-on melamine resin finish
Internal material	Ceramic fiber
Sensor	R-thermocouple
Heater	Iron-chrome wire
Heater	2.5kW	3kW	3.5kW	4kW
Exhaust port	ø20mm (top)
Cooling Fan Type	Axial fan motor
Temp. controller	PID control by microprocessor
Temp. setting/display method	Digital setting by▲▼ keys / Digital display
Operation function	Fixed temperature, quick auto stop, auto stop, auto start, program (maximum 6 patterns: 30 steps x 1 pattern, 15 steps x 2 patterns or 10 steps x 3 patterns)
Additional function	Calibration off-set, power failure compensation, key lock
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs.
Safety Device	Self diagnostic (memory error, heater disconnection, sensor error, SSR short curcuit), Electric leakage breaker, Overheat prevention device
Internal dimensions WxDxH	250×300×150 mm	250×350×200 mm	270×350×250 mm	300×400×250 mm
External dimensions WxDxH	507×504×627 mm	507×604×677 mm	507×605×727 mm	507×655×727 mm
Internal capacity	11.3L	17.5L	23.6L	30L
Power source (50/60Hz)	AC220V single phase 12A no plug, round terminal	AC220V single phase 15A no plug, round terminal	AC220V single phase 18A no plug, round terminal	AC220V single phase 20A no plug, round terminal
Weight	~44kg	~52kg	~58kg	~62kg
Included accessory	Exhaust port cap 1 pc.

Click on the links below to download the associated PDFs.

Muffle Furnace Overview

FO Series Catalog

FO Series Poster

Mining
Fusion
Melting
Alloying
Ceramics
Annealing
Metallurgy

Heat treating
Fusing glass
Environmental testing
Creating enamel coatings
Soldering and brazing metals
Pharmaceutical development
R&D
