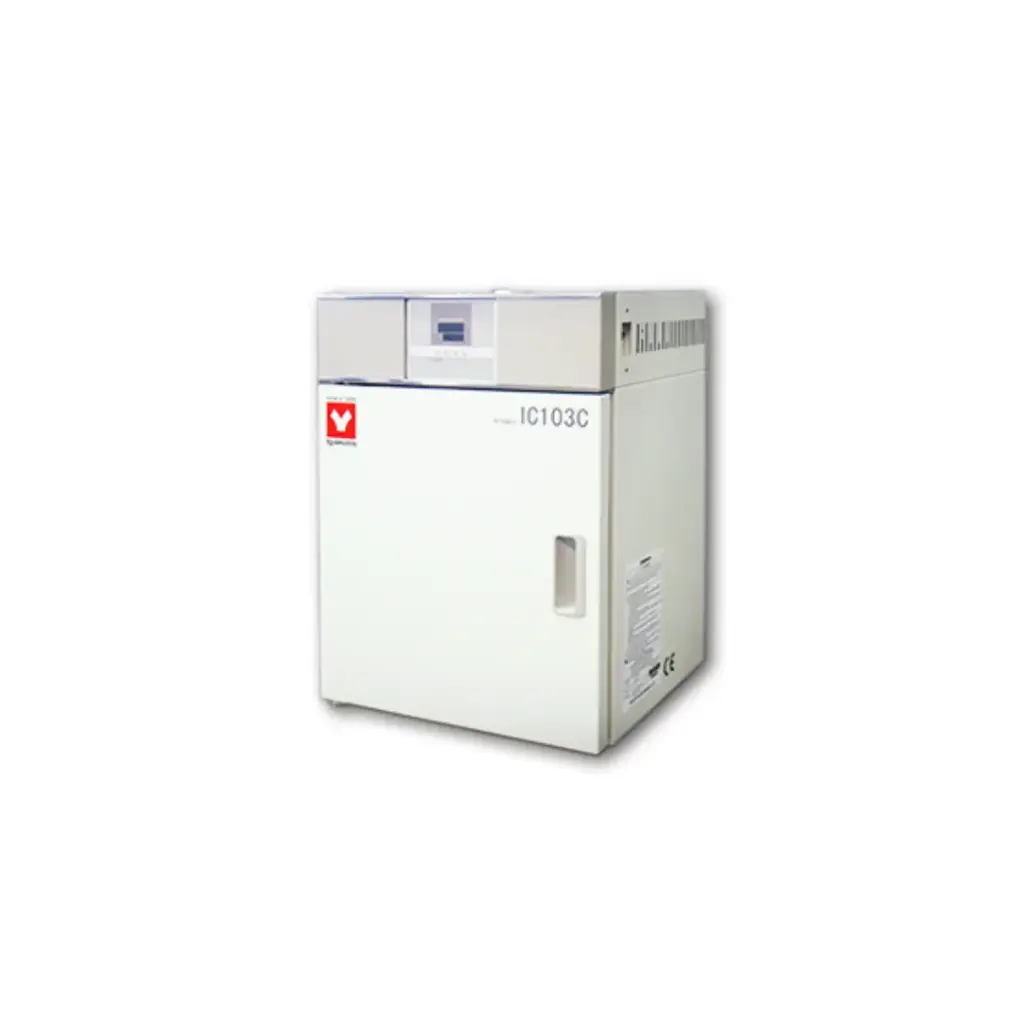

Yamato IC Series Natural Convection Laboratory Incubator

IC103C/113C/403C/413C/603C/613C/803C/813C/903C/913C

Operation and functions

Space saving
All lab incubator models come with either an observation window (W) for improved visibility or solid door
Dual door system permits contents to be viewed easily without disrupting atmosphere of the lab incubator (except IC-100 series)
Control panel of IC103C/113C located at a higher position for easy access
Easy to use digital setting display and timer
Air jacket technology ensures even and efficient heat distribution throughout the lab incubator chamber
Standard equipped with various functions such as self-diagnostic, calibration off-set, overheat prevention and key lock
Models 400 to 900 have an option for communication port (R)

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	IC103C (115V) IC113C (220V)	IC403C (115V) IC413C (220V)	IC603C (115V) IC613C (220V)	IC803C (115V) IC813C (220V)	IC903C (115V) IC913C (220V)
System	Natural convection
Operating temp. range	Room temp. +5~80°C
Temp. control accuracy	±0.5°C (at 37°C)
Temp. distribution accuracy	±1.0°C
Interior	Stainless steel
Exterior	Cold rolled steel plate with melamine resin baking finish
Heat insulator	Glass fiber
Heater	Stainless steel heating pipe	Iron-chrome wire heater
0.2kW	0.3kW	0.4kW	0.7kW	2.2kW
Temperature controller	PID control by microprocessor
Temperature setting system	Operation menu key and digital setting by ▲▼ keys, digital display
Temperature display	Measurement temperature: Digital display by 4 digit green LED / Setting temperature: Digital display by 4 digit red LED
Timer	1 min. ~ 99 hrs 59 mins. and 100~999 hrs 50 mins (including timer waiting function)
Operation function	Fixed temperature, Auto start, Auto stop, Quick Auto stop
Additional function	Calibration off-set, Key-lock, Power outage compensation
Safety device	Self diagnostic functions, temp. sensor error, display error, measurement temp. error, auto overheat prevention
Heater control circuit	SSR drive system
Sensor	K-thermocouple
Internal dimensions WxDxH	350 x 300 x 360 mm	450 × 480 × 450 mm	600 x 530 x 500 mm	600 × 530 × 1000 mm	1070 x 530 x 1000 mm
External dimensions WxDxH	430 x 397 x 606 mm	560 × 606 × 820 mm	710 x 656 x 870 mm	710 × 656 × 1619 mm	1180 x 656 x 1619 mm
Internal capacity	37L	97L	159L	318L	567L
Inner door	None	Reinforced glass door x 1	Reinforced glass door x 2
Shelf load capacity	~15 kg/pc.
Shelf rest step number	8 steps	9 steps	12 steps	29 steps	29 steps x 2
Power supply (50/60 Hz)	AC115V 1.8A (with plug) AC220V 1A (no plug, round terminal)	AC115V 4.5A(with plug) AC220V 2A (no plug, round terminal)	AC115V 6A (with plug) AC220V 2.5A (no plug, round terminal)	AC115V 10A (with plug) AC220V 4.5A (no plug, round terminal)	AC115V 13A (with plug) AC220V 6.5A (no plug, round terminal)
Weight	~17 kg	~45 kg	~65 kg	~102 kg	~166kg
Included accessories	Shelf and brackets (stainless steel)
2 pcs. / 4pcs.	4 pcs. / 8pcs.	8 pcs. / 16pcs.
Optional accessories	Stand, Stacking kit, Additional shelf, Cable hole (25/50mm or 30/50mm), Temp. output terminal, Time-up output terminal for alarm device

Model	IC103C (115V) IC113C (220V)	IC403C (115V) IC413C (220V)	IC603C (115V) IC613C (220V)	IC803C (115V) IC813C (220V)	IC903C (115V) IC913C (220V)
System	Natural convection
Operating temp. range	Room temp. +5~80°C
Temp. control accuracy	±0.5°C (at 37°C)
Temp. distribution accuracy	±1.0°C
Interior	Stainless steel
Exterior	Cold rolled steel plate with melamine resin baking finish
Heat insulator	Glass fiber
Heater	Stainless steel heating pipe	Iron-chrome wire heater
Heater	0.2kW	0.3kW	0.4kW	0.7kW	2.2kW
Temperature controller	PID control by microprocessor
Temperature setting system	Operation menu key and digital setting by ▲▼ keys, digital display
Temperature display	Measurement temperature: Digital display by 4 digit green LED / Setting temperature: Digital display by 4 digit red LED
Timer	1 min. ~ 99 hrs 59 mins. and 100~999 hrs 50 mins (including timer waiting function)
Operation function	Fixed temperature, Auto start, Auto stop, Quick Auto stop
Additional function	Calibration off-set, Key-lock, Power outage compensation
Safety device	Self diagnostic functions, temp. sensor error, display error, measurement temp. error, auto overheat prevention
Heater control circuit	SSR drive system
Sensor	K-thermocouple
Internal dimensions WxDxH	350 x 300 x 360 mm	450 × 480 × 450 mm	600 x 530 x 500 mm	600 × 530 × 1000 mm	1070 x 530 x 1000 mm
External dimensions WxDxH	430 x 397 x 606 mm	560 × 606 × 820 mm	710 x 656 x 870 mm	710 × 656 × 1619 mm	1180 x 656 x 1619 mm
Internal capacity	37L	97L	159L	318L	567L
Inner door	None	Reinforced glass door x 1		Reinforced glass door x 2
Shelf load capacity	~15 kg/pc.
Shelf rest step number	8 steps	9 steps	12 steps	29 steps	29 steps x 2
Power supply (50/60 Hz)	AC115V 1.8A (with plug) AC220V 1A (no plug, round terminal)	AC115V 4.5A(with plug) AC220V 2A (no plug, round terminal)	AC115V 6A (with plug) AC220V 2.5A (no plug, round terminal)	AC115V 10A (with plug) AC220V 4.5A (no plug, round terminal)	AC115V 13A (with plug) AC220V 6.5A (no plug, round terminal)
Weight	~17 kg	~45 kg	~65 kg	~102 kg	~166kg
Included accessories	Shelf and brackets (stainless steel)
Included accessories	2 pcs. / 4pcs.			4 pcs. / 8pcs.	8 pcs. / 16pcs.
Optional accessories	Stand, Stacking kit, Additional shelf, Cable hole (25/50mm or 30/50mm), Temp. output terminal, Time-up output terminal for alarm device

Click on the links below to download the associated PDFs.

Incubator Overview

IC Series Catalog

IC Series Poster

Yamato IC Series Natural Convection Laboratory Incubator

$ 820.00 820.0 USD $ 820.00 In stock

$ 820.00

Currently Out-of-Stock

Share

IC103C/113C/403C/413C/603C/613C/803C/813C/903C/913C

Operation and functions
