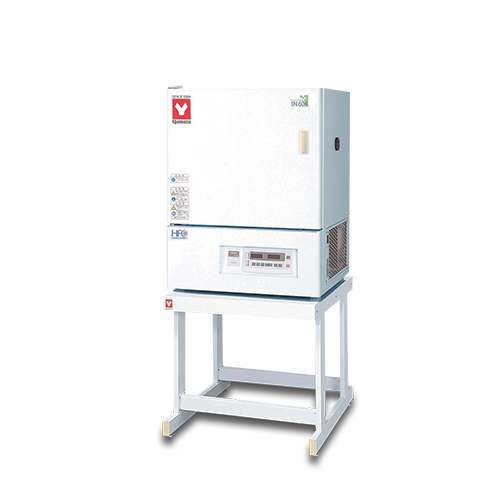

Yamato IN Series Programmable Refrigerated Forced Convection Incubators

Yamato IN Series Programmable Refrigerated Forced Convection Incubators

Standard low temperature forced convection incubators applicable for low temperature tests and environmental tests

$ 5,110.00 5110.0 USD $ 5,110.00 In stock

$ 0.00

Model
- [797059930883] IN604-115V
- [797059930920] IN604W-115V
- [797059930906] IN804-115V
- [797059930944] IN804W-115V
- [797059930968] IN604WMK-115V

This combination does not exist.

Add to cart Buy now

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

IN604-115V / IN604W-115V / IN804-115V / IN804W-115V

Operation and functions

High accuracy temperature control and temperature distribution
Inner glass door keeps temperature stable during sample observation
Designed with a large dual glass door and inner door that forms a triplex glass door for improved heat retention (IN604W/804W)
Interior light for better sample visibility (IN604W/804W)
Optional slide shaker table available to put in and take out samples easily (IN604W)

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	IN604-115V	IN604W-115V	IN804-115V	IN804W-115V
System	Forced air convection
Operating temperature range	-10°C~+50°C
Temperature adjustment accuracy	±0.3°C (refrigerator in continuous operation) / ±1.0°C (refrigerator in cycle operation)
Temp. distribution accuracy	±1.0°C (refrigerator in continuous operation at 37°C)
Max. temp. reaching time	20~50°C ~20min	20~50°C ~30min	Data unavailable
Minimum temp. reaching time	20~-10°C ~ 45min	20~-10°C ~55min	20~-10°C ~65min	Data unavailable
Interior material	Stainless steel
Exterior material	Chrome free electronic galvanized plated steel plate chemical proof baking finish
Observation window	---	W516 x H416mm (with key)	---	Data unavailbale
Heat insulation material	Styrene foam
Refrigerator	Air-cooled fully closed compressor 250W	Air-cooled fully closed compressor 300W
Refrigerator medium	R134A	R404A
Defrosting mechanism	Manual ON / Auto OFF, Timer operation, Cycle operation
Blower fan	Axial fan
Heater	Iron-chrome wire heater: 550W	Iron-chrome wire heater: 750W
Sensor	Platinum resistance temperature detector: Pt100Ω (temp. controller), K-thermocouple (overheat prevention device)
Cable port (right side)	I.D.: 30mm	I.D.: 50 mm	I.D.: 30 mm	I.D.: 30 mm
Temperature control	PID control
Temperature setting	Digital setting with ▲▼ keys
Temperature display	Measured temperature: 4-digit orange LED digital display + VFD fluorescent display
Timer / timer resolution	0 min. ~ 999 hrs. 59 min. / 1 min.
Operation function	Fixed temperature, auto stop, auto start, program (up to 32 steps, repeat operation)
Additional functions	Timer function (accumulated time to 49,999 hrs), calibration off-set function, clock display
Safety device	Self diagnostic function (Temp. sensor error, Heater disconnection, SSR short-circuit, Main relay error, Automatic overheat prevention function), Key lock, Over current ELB, Overheat prevention device
Internal dimensions W x D x H	600 x 477 x 500 mm	600 x 477 x 1000 mm
External dimensions W x D x H	710 x 645 x 913 mm	710 x 645 x 1630 mm
Internal capacity	143L	286L
Shelf plate load	15kg / pc.
Shelf rest step number / pitch	13 steps / 30mm	23 steps / 30mm
Power supply (50/60Hz)	AC115V 9A (with plug) AC220V 5.5A (no plug, round terminal)	AC115V 10.5A (with plug) AC220V 7.5A (no plug, round terminal)	AC115V 10.5A (with plug) AC220V 6A (no plug, round terminal)	AC115V (with plug) AC220V (no plug, round terminal)
Weight	~89kg	~ 120kg
Included accessories	Shelf and brackets (stainless steel punched metal)
3 pcs. shelves / 6 pcs. brackets	5 pcs. shelves / 10 pcs. brackets
Door keys	---	2 keys	---	2 keys
Optional accessories	Stand, additional shelf, cable port (ø30/50mm), recorder, warning light combination (stand-by/operation/error), observation window, temperature output terminal (4-20mA), external alarm output terminal, time up output terminal

Model	IN604-115V	IN604W-115V	IN804-115V	IN804W-115V
System	Forced air convection
Operating temperature range	-10°C~+50°C
Temperature adjustment accuracy	±0.3°C (refrigerator in continuous operation) / ±1.0°C (refrigerator in cycle operation)
Temp. distribution accuracy	±1.0°C (refrigerator in continuous operation at 37°C)
Max. temp. reaching time	20~50°C ~20min		20~50°C ~30min	Data unavailable
Minimum temp. reaching time	20~-10°C ~ 45min	20~-10°C ~55min	20~-10°C ~65min	Data unavailable
Interior material	Stainless steel
Exterior material	Chrome free electronic galvanized plated steel plate chemical proof baking finish
Observation window	---	W516 x H416mm (with key)	---	Data unavailbale
Heat insulation material	Styrene foam
Refrigerator	Air-cooled fully closed compressor 250W		Air-cooled fully closed compressor 300W
Refrigerator medium	R134A		R404A
Defrosting mechanism	Manual ON / Auto OFF, Timer operation, Cycle operation
Blower fan	Axial fan
Heater	Iron-chrome wire heater: 550W		Iron-chrome wire heater: 750W
Sensor	Platinum resistance temperature detector: Pt100Ω (temp. controller), K-thermocouple (overheat prevention device)
Cable port (right side)	I.D.: 30mm	I.D.: 50 mm	I.D.: 30 mm	I.D.: 30 mm
Temperature control	PID control
Temperature setting	Digital setting with ▲▼ keys
Temperature display	Measured temperature: 4-digit orange LED digital display + VFD fluorescent display
Timer / timer resolution	0 min. ~ 999 hrs. 59 min. / 1 min.
Operation function	Fixed temperature, auto stop, auto start, program (up to 32 steps, repeat operation)
Additional functions	Timer function (accumulated time to 49,999 hrs), calibration off-set function, clock display
Safety device	Self diagnostic function (Temp. sensor error, Heater disconnection, SSR short-circuit, Main relay error, Automatic overheat prevention function), Key lock, Over current ELB, Overheat prevention device
Internal dimensions W x D x H	600 x 477 x 500 mm		600 x 477 x 1000 mm
External dimensions W x D x H	710 x 645 x 913 mm		710 x 645 x 1630 mm
Internal capacity	143L		286L
Shelf plate load	15kg / pc.
Shelf rest step number / pitch	13 steps / 30mm		23 steps / 30mm
Power supply (50/60Hz)	AC115V 9A (with plug) AC220V 5.5A (no plug, round terminal)	AC115V 10.5A (with plug) AC220V 7.5A (no plug, round terminal)	AC115V 10.5A (with plug) AC220V 6A (no plug, round terminal)	AC115V (with plug) AC220V (no plug, round terminal)
Weight	~89kg		~ 120kg
Included accessories	Shelf and brackets (stainless steel punched metal)
Included accessories	3 pcs. shelves / 6 pcs. brackets		5 pcs. shelves / 10 pcs. brackets
Door keys	---	2 keys	---	2 keys
Optional accessories	Stand, additional shelf, cable port (ø30/50mm), recorder, warning light combination (stand-by/operation/error), observation window, temperature output terminal (4-20mA), external alarm output terminal, time up output terminal

Click on the links below to download the associated PDFs.

Incubator Overview

IN Series Catalog
