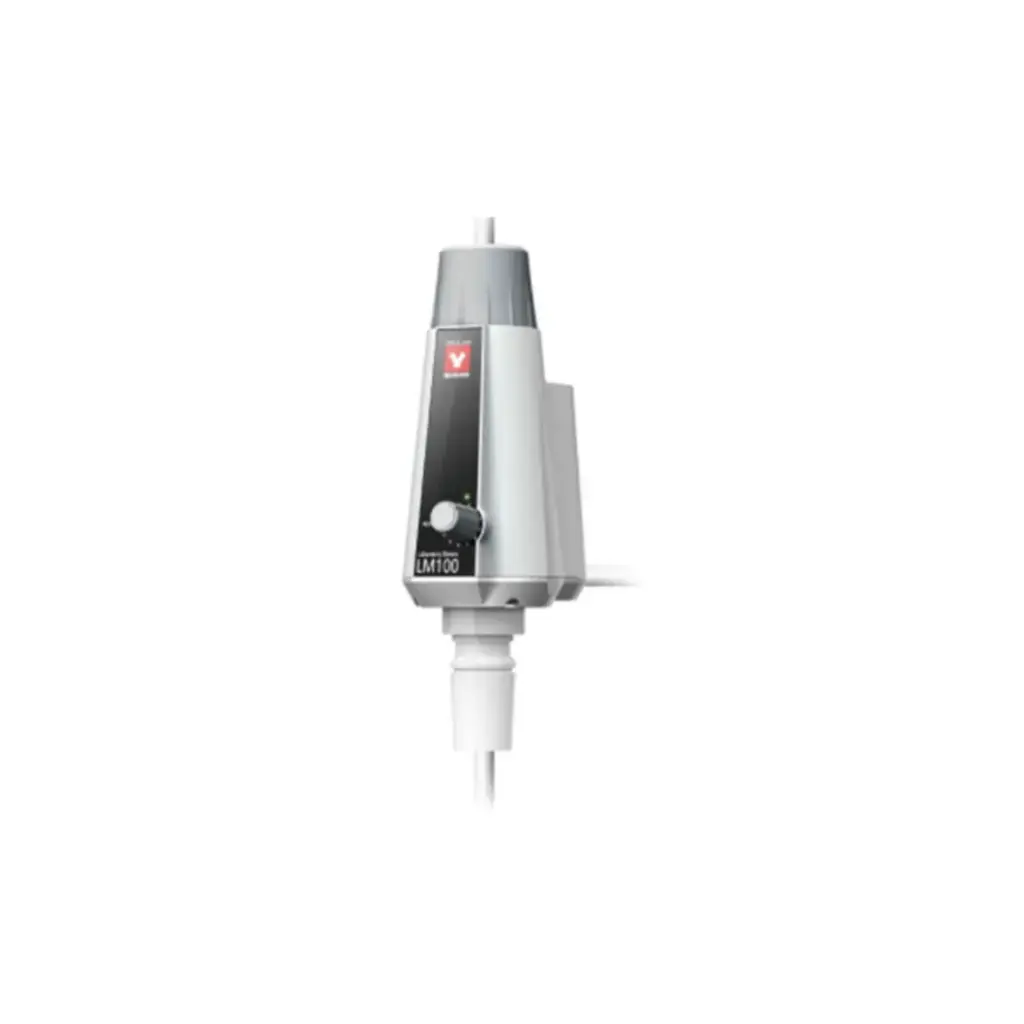

Yamato LM Series 1000 RPM Flask Mixers

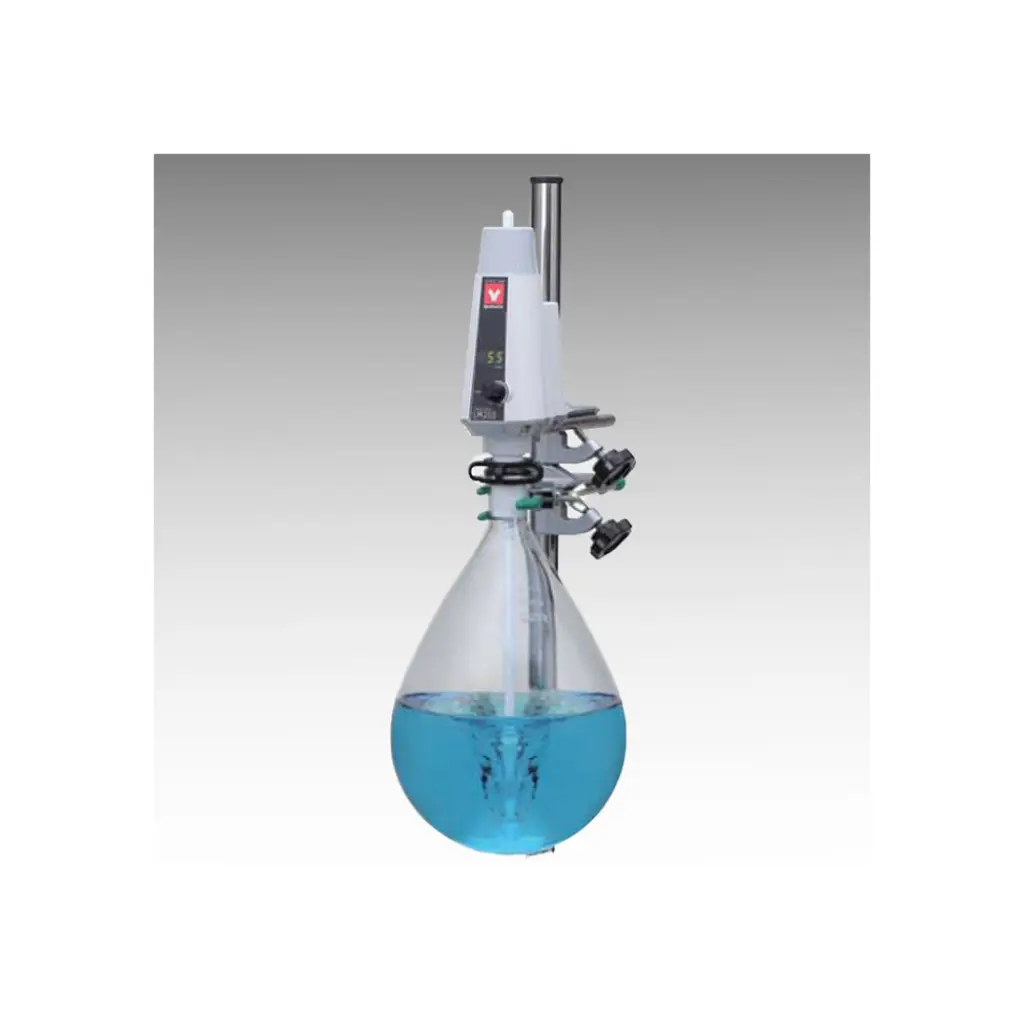

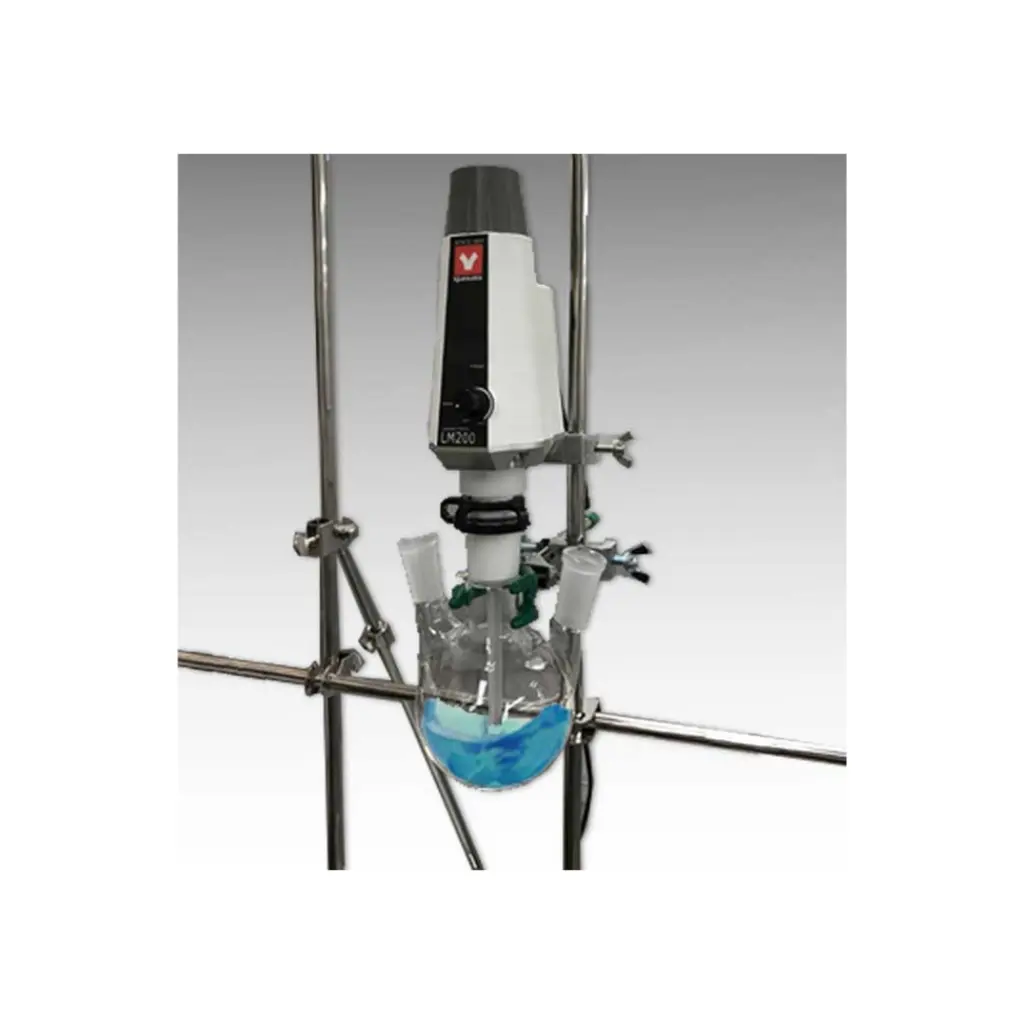

LM Series compact design laboratory flask mixer features integrated drive and stirring seal allowing direct installation of flask and stirring in a vacuum and sealed state. No time-consuming shaft alignment required. Its strong stirring power is perfect for samples of high volume and high viscosity.

LM100/110 is designed with manual type rotation speed while LM200/210 is equipped with digital indicator.

$ 655.00 655.0 USD $ 655.00 In stock

$ 0.00

Model
- [797059928774] LM100
- [797059928781] LM110
- [797059928798] LM200
- [797059928804] LM210
- [797059928811] LM-100A
- [797059928828] LM-110A
- [797059928835] LM-200A
- [797059928842] LM-210A

This combination does not exist.

Add to cart Buy now

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Click here for accessories

LM100/110/200/210

Features

Wide range rotation speed of 50-1000 rpm
Maintenance free and superior DC brushless motor
Belt drive transmission minimizes noise and vibration
Capable of vacuuming up to 399.9Pa without impairing rotation efficiency
Directly attachable to a three-neck flask 24/40, 29/42 optional
Variety of stirring shafts and blades available to handle small to large volume samples
Fluorine rubber seal as standard for shaft seal, superior chemical resistant Teflon®rubber seal available as option
At the flask joint, FKM o-ring is used as standard, superior chemical resistant Kalrez® o-ring available as option
Equipped with 24/40 rotary joint, 29/42 optional
Capable of AC100-240V by changing power cord

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	LM100	LM110	LM200	LM210
Operating temp. range	5°C~35°C
Speed range *¹	50~1000 rpm
Max. torque	0.1N•m
Max. ultimate vacuum	< 399.9Pa
Exterior	PBT /ADC12 (Surface: branded / painted)
Motor	DC brushless motor 30W
Speed control	Feedback control
Display	---		3 digit×10 rpm Digital
Operation lamp	Green LED		Rotation speed display
Adaptable flask size	50~5000 ml
Joint size	TS 24/40
Chuck	ø8mm (φ7.9~7.95)
Sealing material	PTFE (rotary joint) / FKM (oil seal, o-ring)
Safety device	Overload protection function*², coupling cover (hair entanglement prevention structure), slow start function
External dimension	W69 × D108 × H222 mm
Power source 50/60Hz	Single phase AC100V~AC120V 50/60Hz 1A	Single phase AC200V~AC220V 50/60Hz 1A	Single phase AC100V~AC120V 50/60Hz 1A	Single phase AC200V~AC220V 50/60Hz 1A
Power cord	A type 3P (AC115V 50/60Hz)	O type 3P (AC220V 50/60Hz)	A type 3P (AC115V 50/60Hz)	O type 3P (AC220V 50/60Hz)
Weight	700g (main body only)
Included accessories	Hexagon socket head cap screw & wrench, AC adapter, 3m power cord, coupling cover, handle (arbor), flask clip
Operational accessories*³	Stirring shaft (stainless steel or glass), propellers (different types and sizes), stand and rod

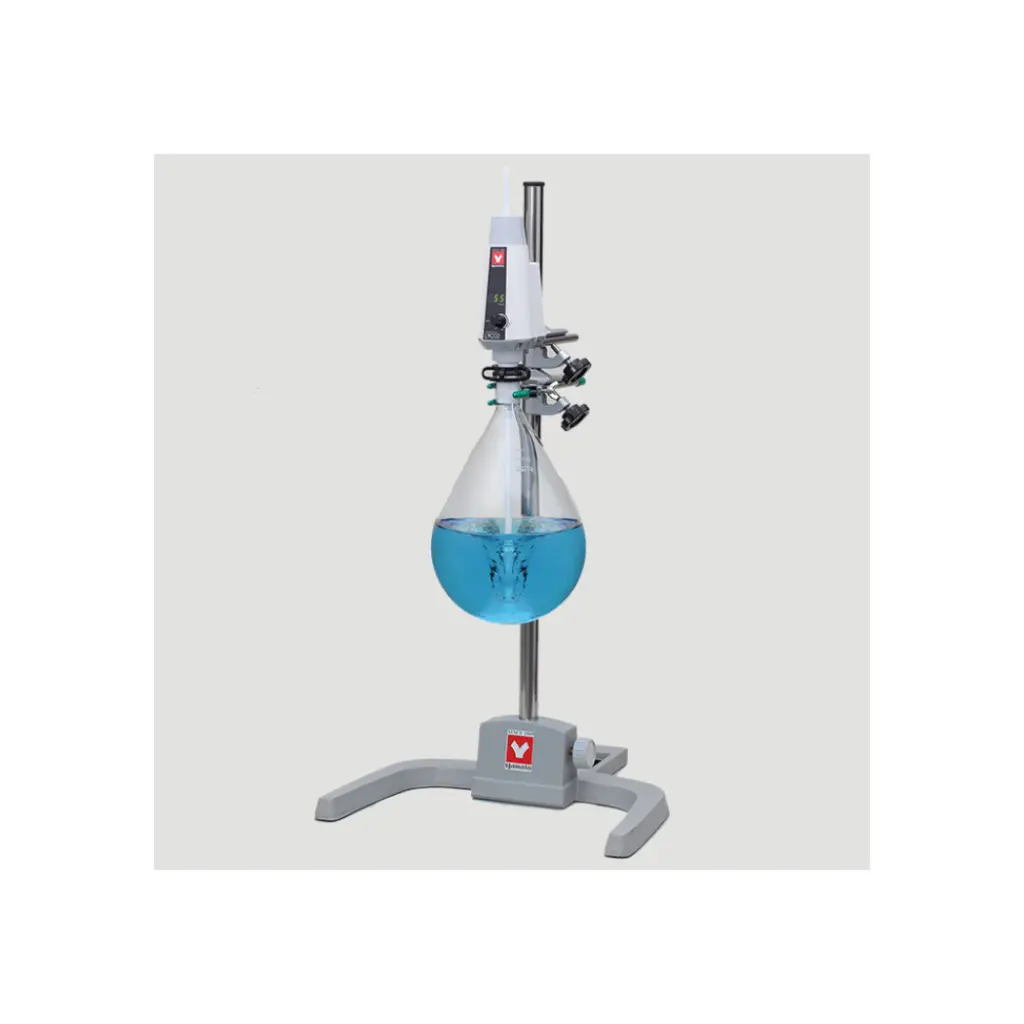

Recommended set composition	Main body, stand, PTFE stirring bar with propeller L450mm x φ50mm, burette clamp φ9.5~φ29mm, double opening clamp 3~55mm

*1 Max. revolutions differ depending on the combination of oil seal + stirring shaft.
50 – 1000rpm: FKM oil seal + PTFE stirring shaft / PTFE oil seal + glass or SUS stirring shaft
50 – 300rpm: FKM oil seal + glass or SUS stirring shaft / PTFE oil seal + PTFE stirring shaft
*2 When load exceeding maximum torque is applied, current limit circuit automatically controls the current to protect the motor
*3 Sold separately
