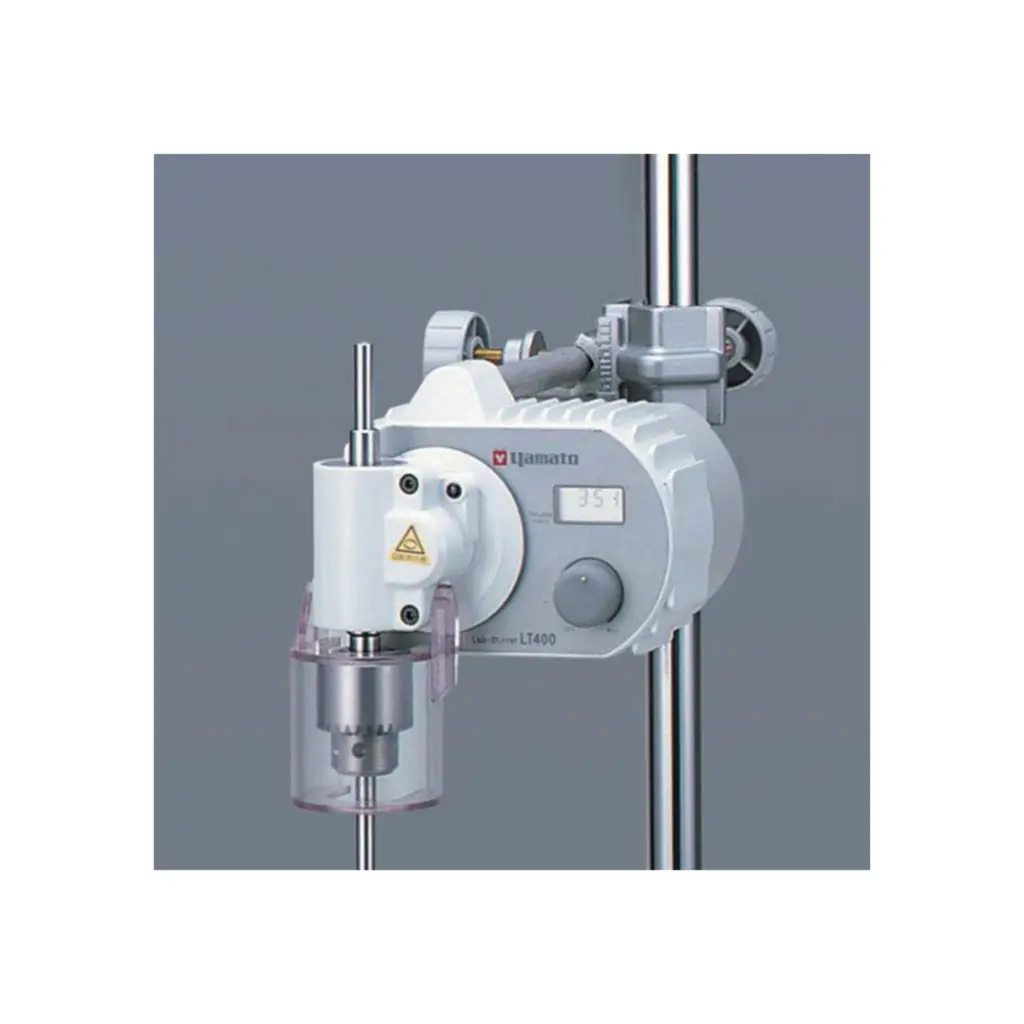

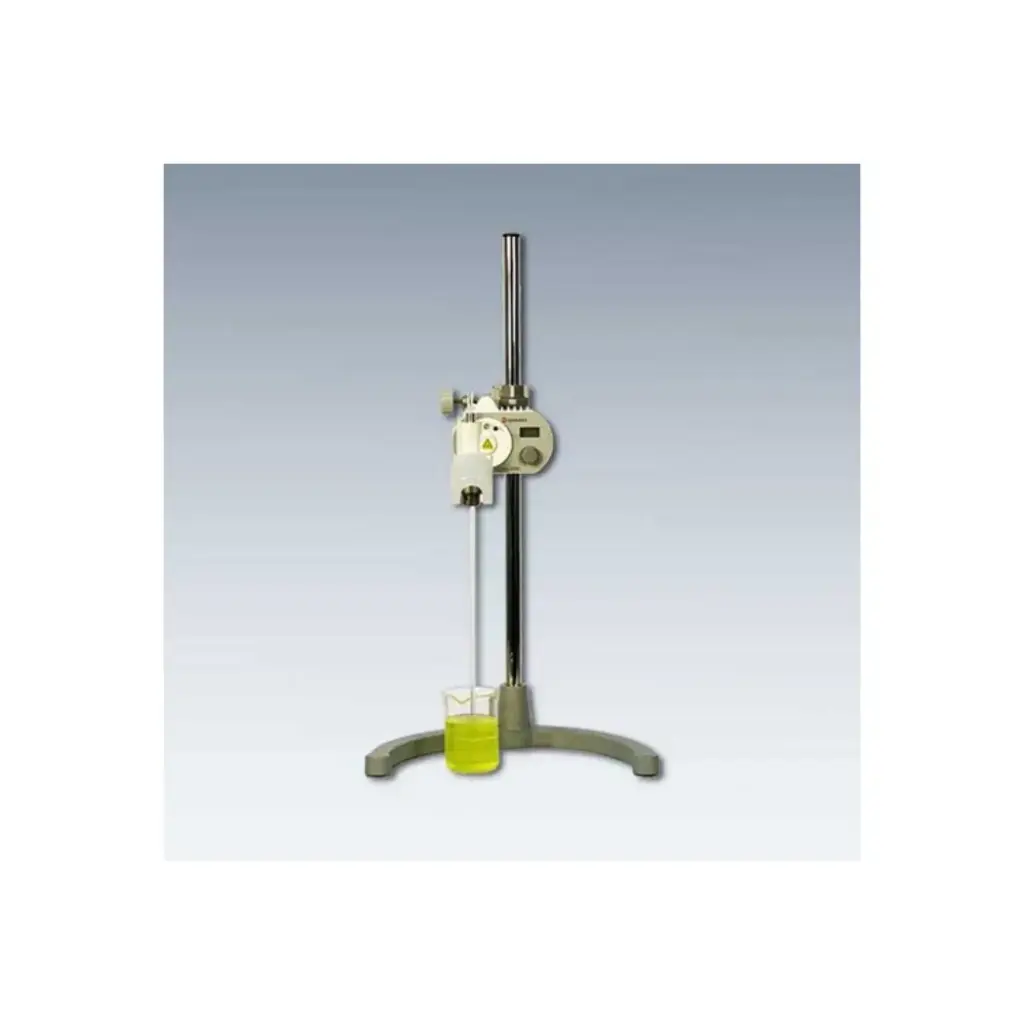

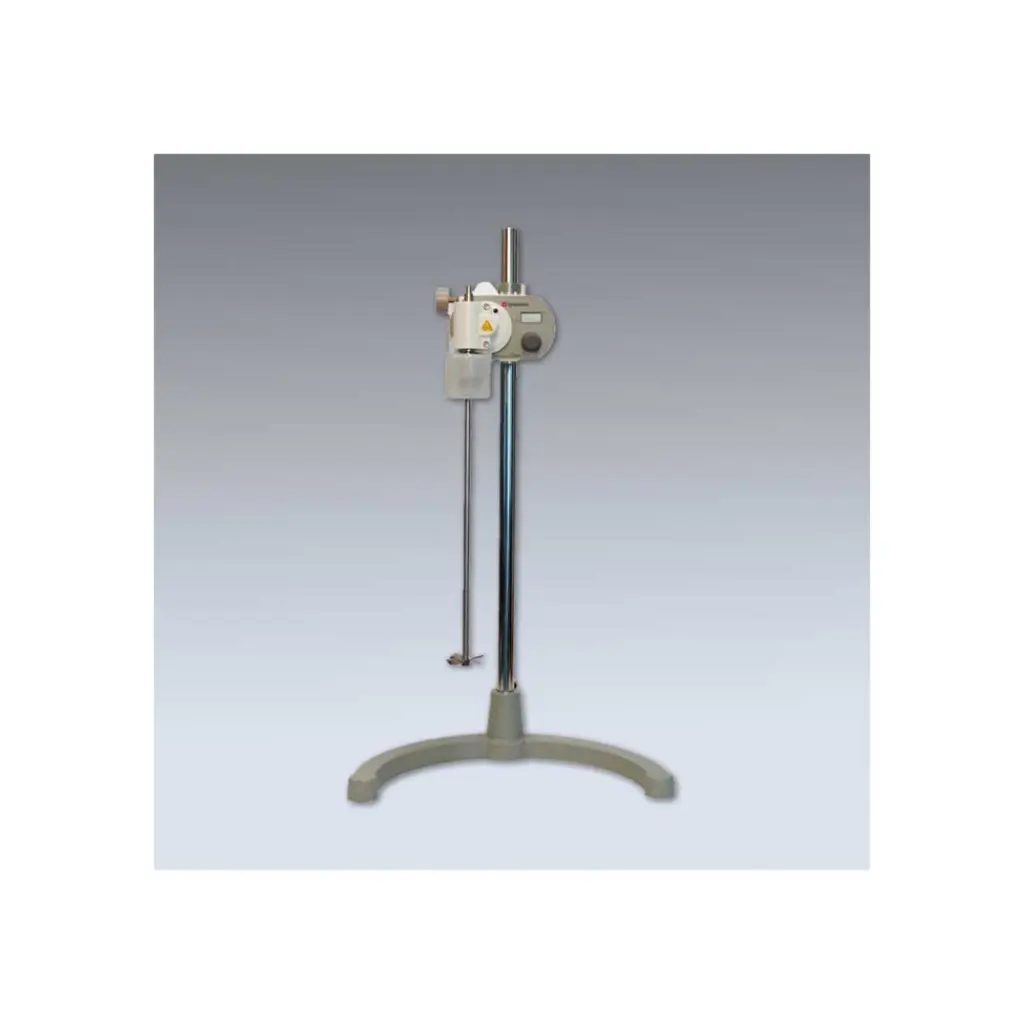

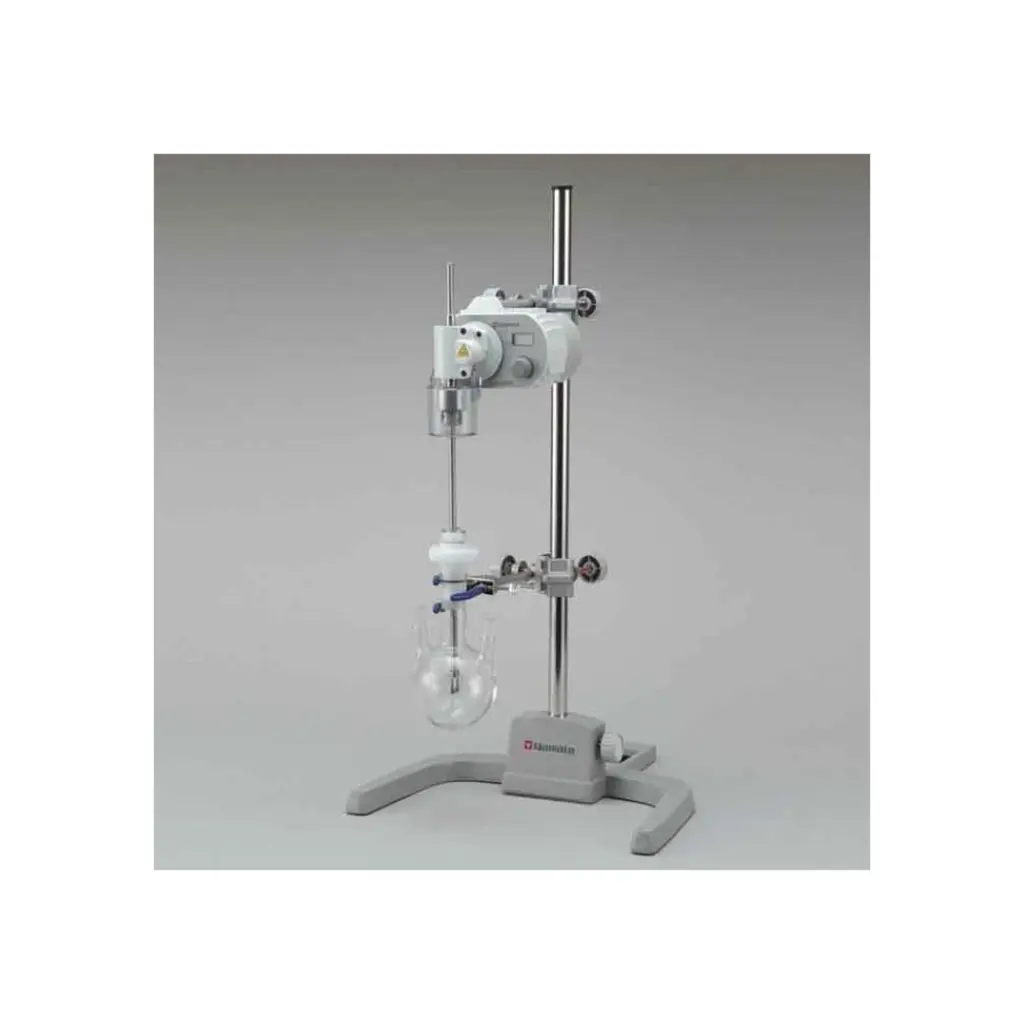

Yamato LT Series 1200 RPM Laboratory Stirrers

Yamato LT Series 1200 RPM Laboratory Stirrers

LT Series stirrers include LT400A and LT500A with higher torque, LT400B and LT500B with well-balanced speed and torque, and LT400C with high speed, to support different applications.

$ 1,770.00 1770.0 USD $ 1,770.00 In stock

$ 0.00

Model
- [797059928941] LT-400AA
- [797059928958] LT-400BA
- [797059928965] LT-400CA
- [797059928972] LT-500AA
- [797059928989] LT-500BA

This combination does not exist.

Add to cart Buy now

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

Click here for accessories

LT400A/400B/400C LT500A/500B

Features

Highly sensitive feedback system keeps the set speed, even with changing viscosity during stir
Maintenance free DC brushless motor
Digital speed indicator for accurate speed setting and confirmation
Noise prevention measures for optimal work environment
More safety-oriented design

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	LT400A	LT400B	LT400C	LT500A	LT500B
Viscosity of sample	High	Medium	Medium-Low	High	Medium
Speed range	10~300rpm	15~600rpm	25~1200rpm	15~600rpm	25~1200rpm
Torque	0.9N•m (9.0kgf•cm)	0.5N•m (5.0kgf•cm)	0.3N•m (3.0kgf•cm)	1.0N•m (10.0kgf•cm)	0.6N•m (6.0kgf•cm)
Motor	DC brushless motor 30W
Speed control	Feedback control
Panel display	Digital speed display, Overload display¹ , Torque indicator (20% gradation)²
Chuck	ø8mm drill chuck
Safety device	Current limit circuit ³ , Thermal protector⁴ , Drill chuck cover
External dimensions WxDxH	146 x 154 x 165 mm
Power source	AC100V~AC125V 50/60Hz
Power cord	Power supply cord with bipolar grounding type plug 2m
Weight	2.4 kg
Included accessories	Clamp, safety cover, chuck handle
Operational accessories*	Stirring shaft (stainless steel or glass), propellers (different types and sizes), stand and rod

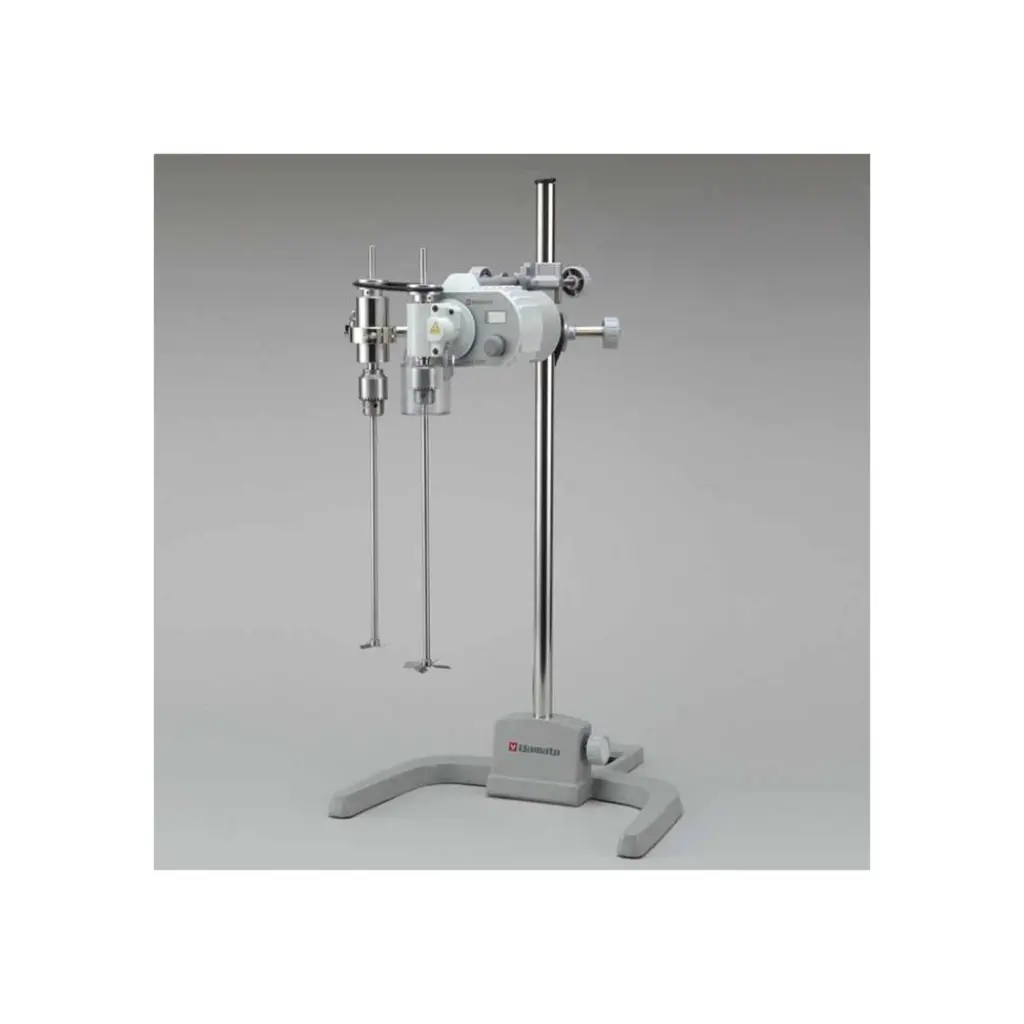

Recommended set composition	Main body, stand, rod, stainless steel shaft, 60mm 4-blade propeller

*Operational accessories purchased separately
*1, When load exceeding the maximum torque is applied, tachometer display flashes.
*2, Torque indicator LED displays the loading status by 5 gradation.
*3, When load exceeding the maximum torque is applied, current limit circuit automatically controls the current to protect the motor.
*4, When temperature of the motor exceeds the upper limit temperature, thermal protector shuts off the current flowing to the motor and prevents it from burnout.

Click on the links below to download the associated PDFs.

LT LR Catalog

LT LR Accessories
