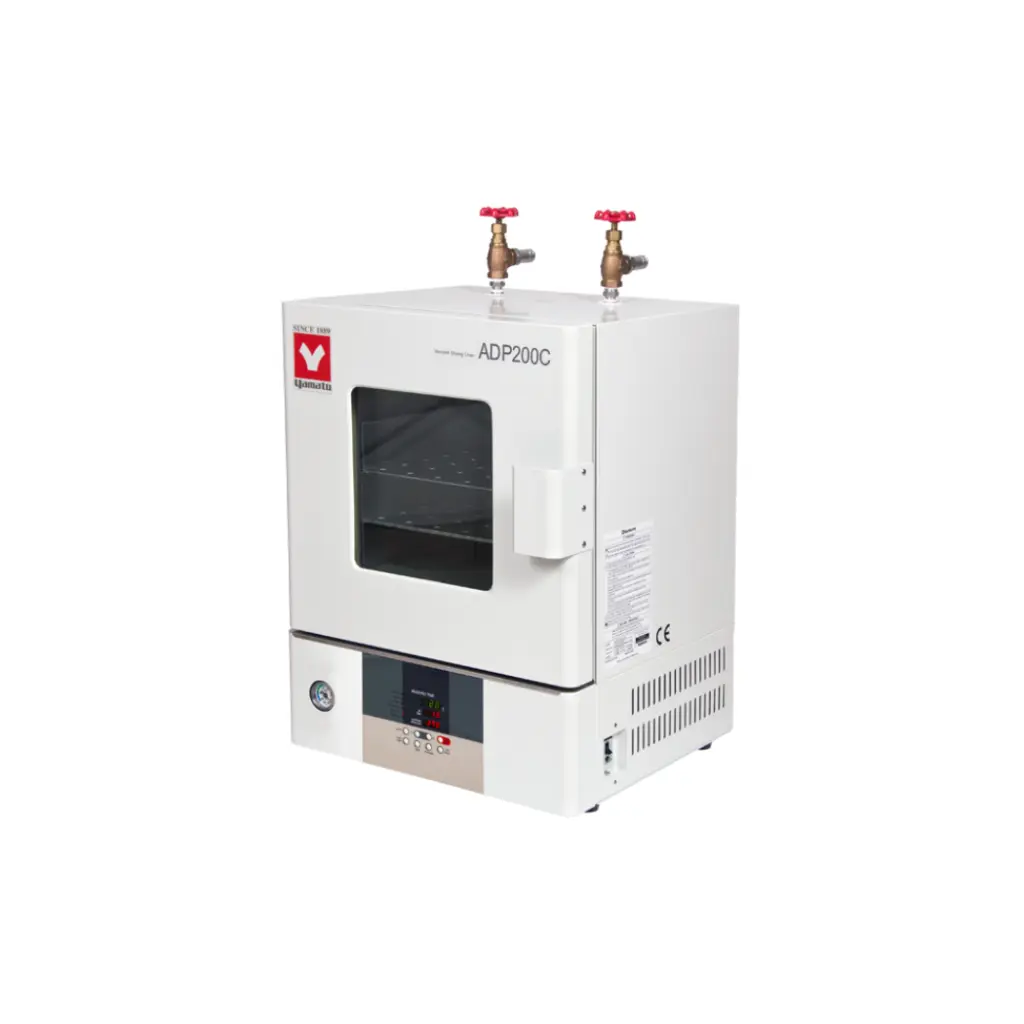

Yamato ADP Series Vacuum Drying Ovens

Standard small size benchtop vacuum drying ovens with enhanced safety features

$ 3,215.00 3215.0 USD $ 3,215.00 In stock

$ 0.00

Model
- [797059926756] ADP200C - 115V
- [797059926763] ADP210C - 220V
- [797059926770] ADP300C - 115V
- [797059926787] ADP310C - 220V

This combination does not exist.

Add to cart Buy now

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

ADP200C/210C/300C/310C

Performance and functions

Easy input of parameters and settings
Digital PID controller supports fixed temperature, quick auto-stop, auto stop, auto start and program operations.
Self-diagnostic and overheating prevention functions
Silicon rubber door seal prevents air from leaking
Independent over heating prevention device for each circuit
Customizable with N₂ gas inlet and communication ports
Calibration off-set function
Easy maintenance

Safety features

Sensor trouble detection, SSR, short circuit detection, heater disconnecting detection, memory error, overheating and measurement temperature error.

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	ADP200C ADP210C	ADP300C ADP310C
System	Vacuum drying by decompressed chamber direct heating
Operating temp. range	40~240°C
Operating pressure range	101~0.1kPa (760~1 Torr)
Temp. control accuracy	±1.5°C (at 240°C)
Max. temp. reaching time	~70min.	~100min.
Interior material	Stainless steel
Temp. control method	PlD control by microprocessor
Sensor	K-thermocouple
Temp. setting method	Digital setting by ▲/▼ keys
Temp. display method	Measurement temp.: Digital display by green LED / Setting temp.: Digital display by red LED
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. and 50 min. / Digital display
Heater	Mica heater / 0.68kW	Mica heater / 1.05kW
Heat insulating material	Rock wool
Observation window	Tempered glass (12 mm thickness) and polycarbonate resin plate
Vacuum gauge	Bourdon tube type, 0~0.1 MPa (Gauge pressure)
Safety device	Self diagnostic functions (Heater, Sensor, SSR short circuit, automatic overheat prevention function), over current electric leakage breaker, overheating prevention device
Internal dimensions WxDxH	200 x 250 x 200mm	300 x 300 x 300mm
External dimensions WxDxH	400 x 412 x 603mm	500 x 465 x 705mm
Internal capacity	10L	27L
Shelf loading	~15kg / pcs
Shelf rest step number	2 steps	3 steps
Shelf rest pitch	65mm	75mm
Vacuum port	O.D.18mm
Power source	AC115V 6A (with plug) AC220V 3.5A (no plug, round terminal)	AC115V 9.5A (with plug) AC220V 5A (no plug, round terminal)
Weight	~30kg	~55kg
Included Accessories	Shelf plate (Aluminum perforated metal) 2 pcs.	Shelf plate (Aluminum perforated metal) 3 pcs.

Model	ADP200C ADP210C	ADP300C ADP310C
System	Vacuum drying by decompressed chamber direct heating
Operating temp. range	40~240°C
Operating pressure range	101~0.1kPa (760~1 Torr)
Temp. control accuracy	±1.5°C (at 240°C)
Max. temp. reaching time	~70min.	~100min.
Interior material	Stainless steel
Temp. control method	PlD control by microprocessor
Sensor	K-thermocouple
Temp. setting method	Digital setting by ▲/▼ keys
Temp. display method	Measurement temp.: Digital display by green LED / Setting temp.: Digital display by red LED
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. and 50 min. / Digital display
Heater	Mica heater / 0.68kW	Mica heater / 1.05kW
Heat insulating material	Rock wool
Observation window	Tempered glass (12 mm thickness) and polycarbonate resin plate
Vacuum gauge	Bourdon tube type, 0~0.1 MPa (Gauge pressure)
Safety device	Self diagnostic functions (Heater, Sensor, SSR short circuit, automatic overheat prevention function), over current electric leakage breaker, overheating prevention device
Internal dimensions WxDxH	200 x 250 x 200mm	300 x 300 x 300mm
External dimensions WxDxH	400 x 412 x 603mm	500 x 465 x 705mm
Internal capacity	10L	27L
Shelf loading	~15kg / pcs
Shelf rest step number	2 steps	3 steps
Shelf rest pitch	65mm	75mm
Vacuum port	O.D.18mm
Power source	AC115V 6A (with plug) AC220V 3.5A (no plug, round terminal)	AC115V 9.5A (with plug) AC220V 5A (no plug, round terminal)
Weight	~30kg	~55kg
Included Accessories	Shelf plate (Aluminum perforated metal) 2 pcs.	Shelf plate (Aluminum perforated metal) 3 pcs.

Click on the links below to download the associated PDFs.

Oven Overview

ADP Series Catalog

ADP Series Poster

Oven Accessories

GLD Series Vacuum Pump Catalog
