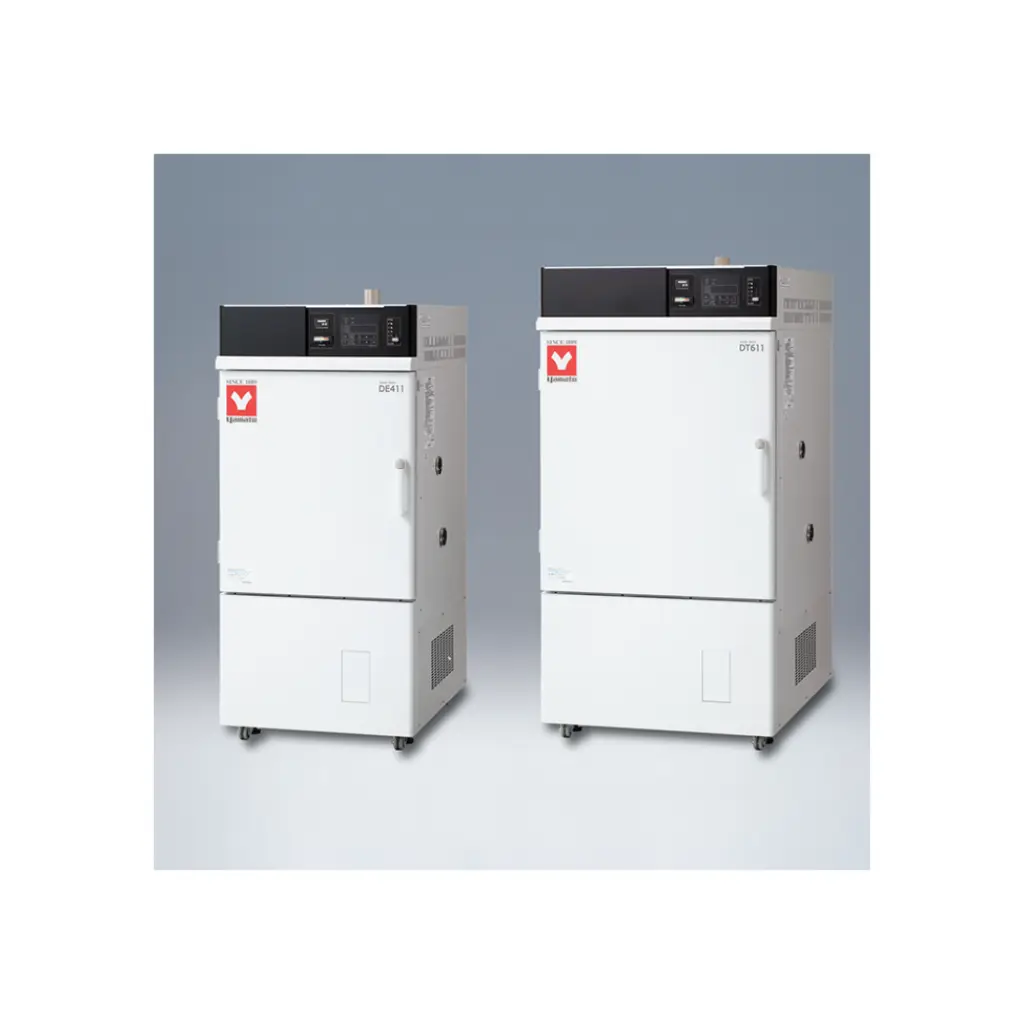

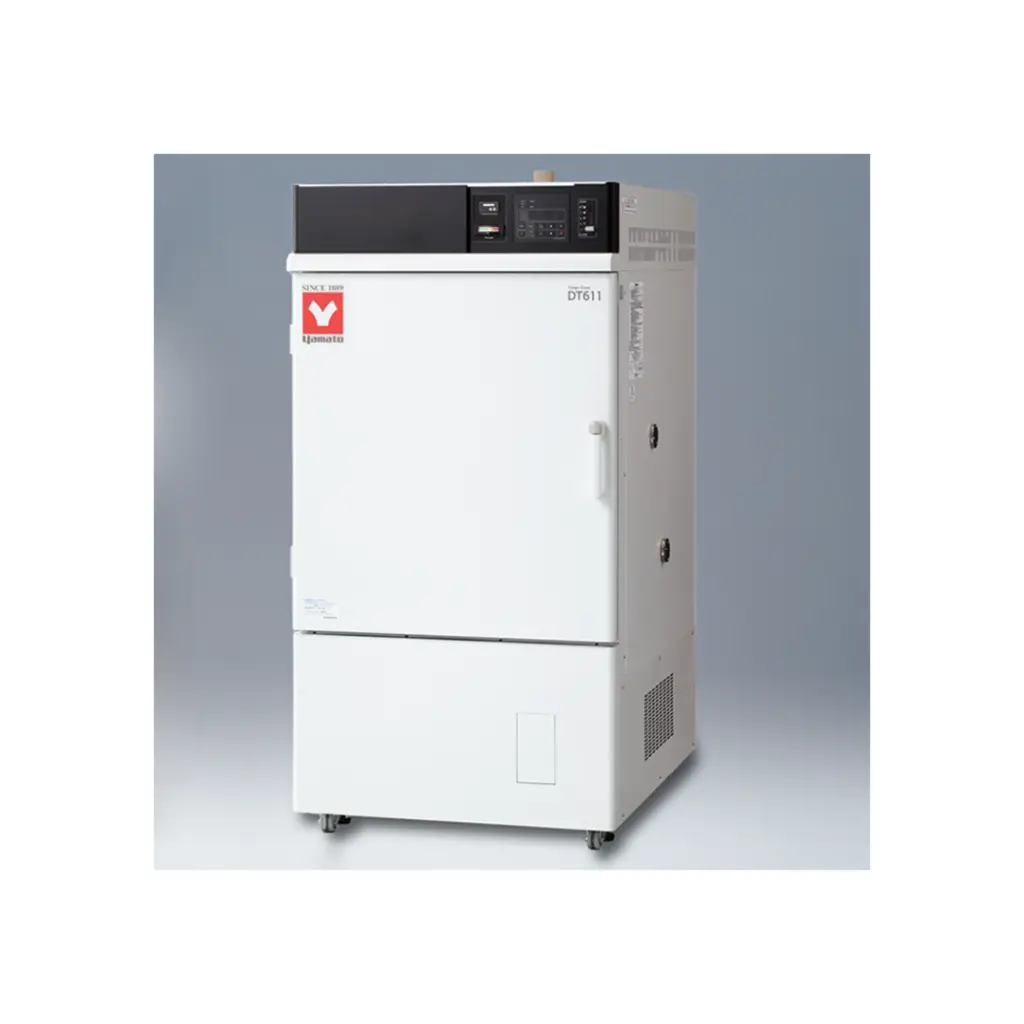

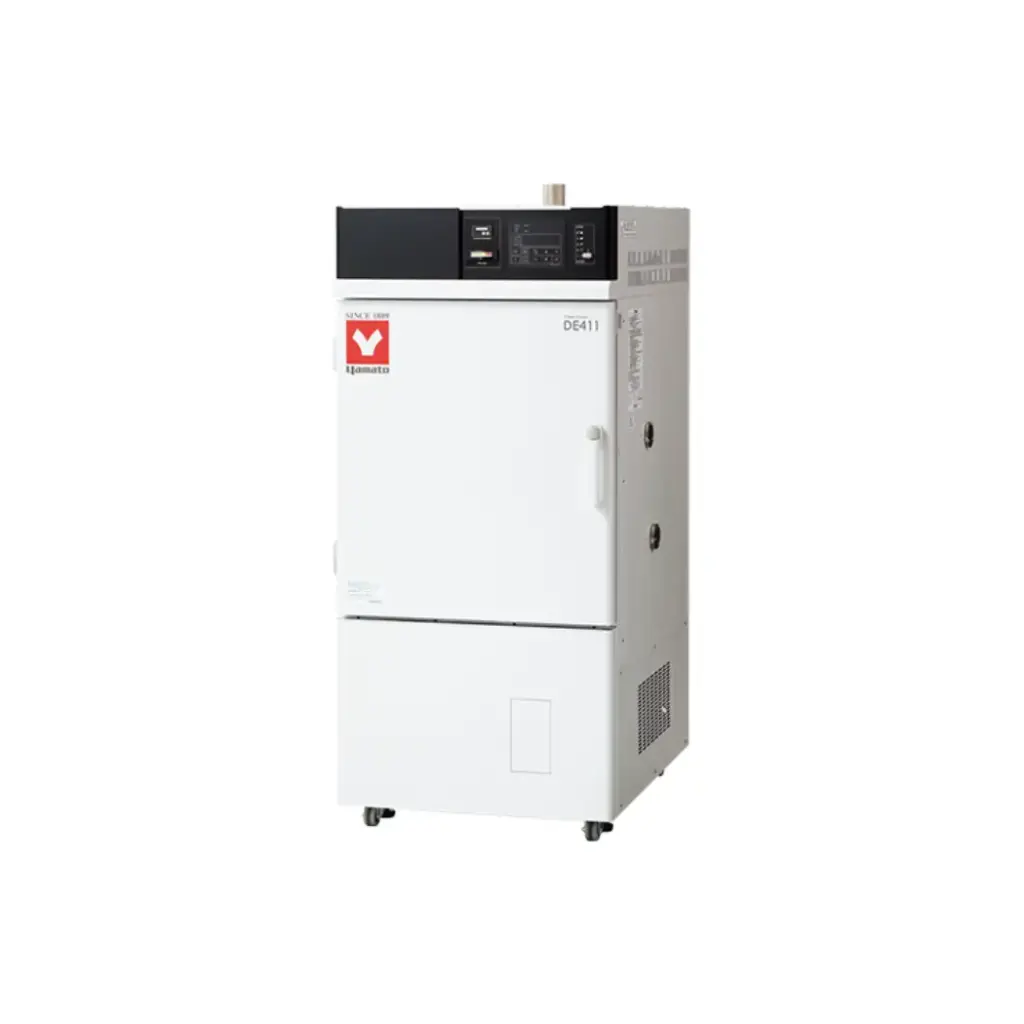

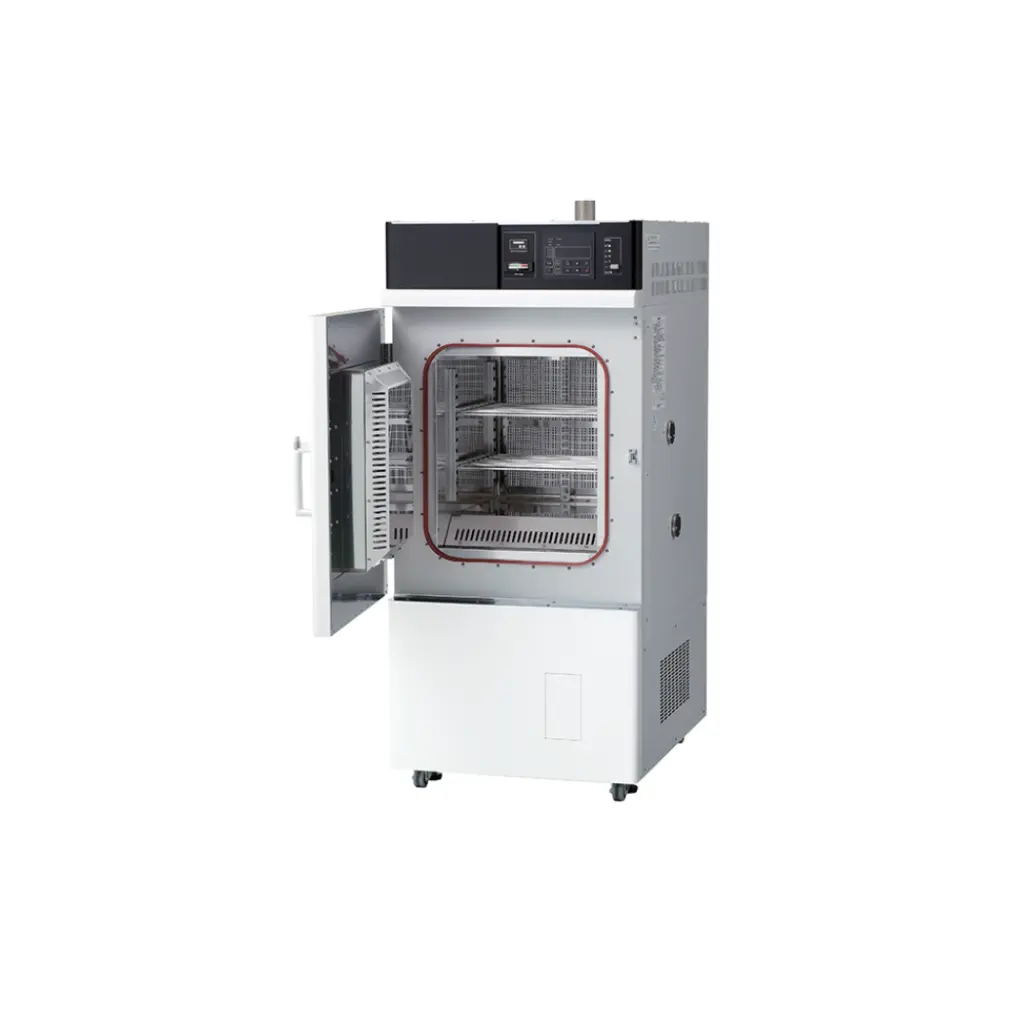

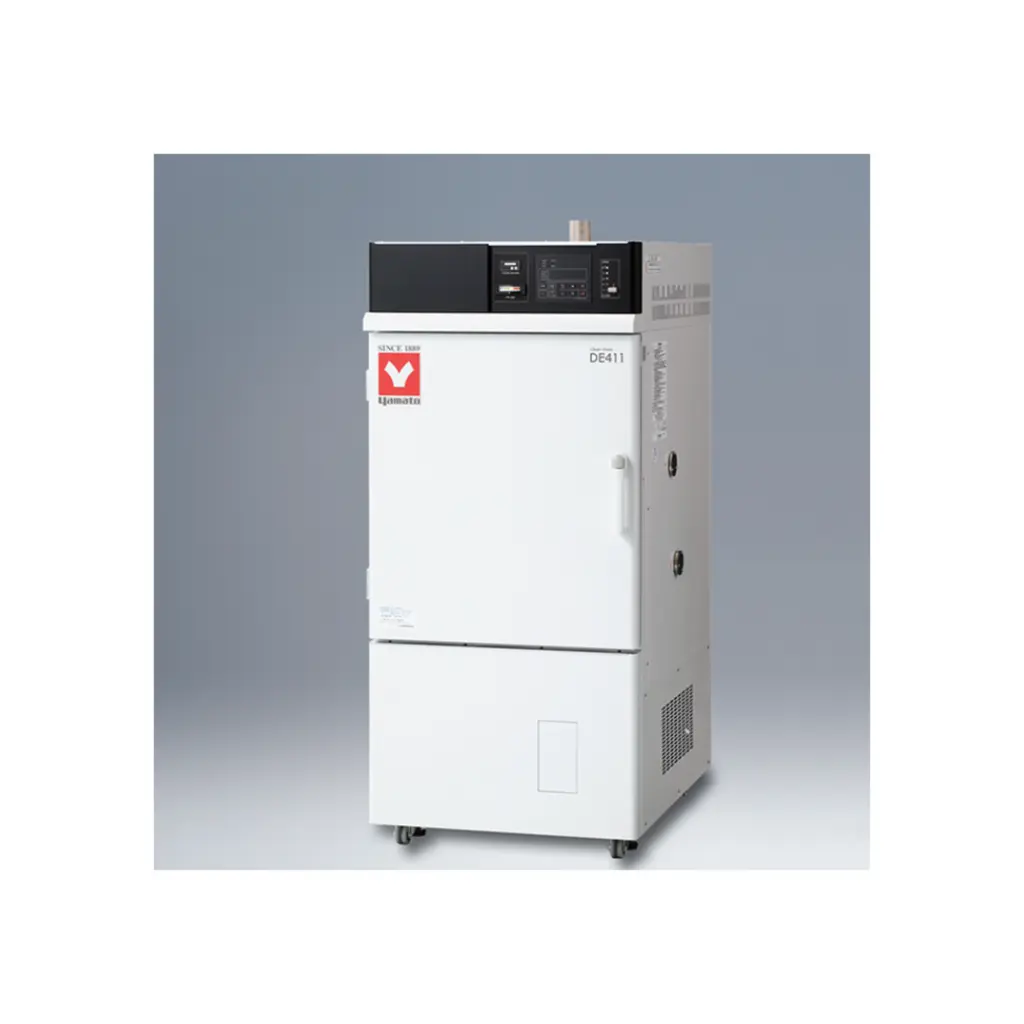

Yamato DE & DT Series Forced Convection Cleanroom Ovens

Yamato DE & DT Series Forced Convection Cleanroom Ovens

The Yamato DE & DT Class 100 forced convection cleanroom ovens feature advanced temperature control and uniformity for temperature testing in a dust-free environment. Rely on the DE & DT mechanical clean room ovens to carry out unmatched drying, sterilization, or any heating applications that require a temperature range of up to 360°C.

$ 19,760.00 19760.0 USD $ 19,760.00 In stock

$ 0.00

Model
- [797059926893] DE411
- [797059926909] DE611
- [797059926916] DT411
- [797059926923] DT611

This combination does not exist.

Add to cart Buy now

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

DE411/611 DT411/611

Features

Improved visibility and operability with its V type controller
Displays power consumption, CO₂ emissions and heater manipulated variables on the control panel
Adopts anti-fouling casters which prevents wheel contamination during transportation
Improved visibility of HEPA filter replacement timing by three color indication
Enhanced safety with its phase-reversal relay detecting incorrect power source at installation
Lower equipment height compared to previous models (DE/DT411 approximately ~200 mm shorter)
Larger cable port from φ30mm to φ33mm
Improved optional accessories and more customization options

Your choice of laboratory oven can have a big effect on your daily lab routines.

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

MODEL	DE411	DE611	DT411	DT611
Circulation Method	Forced convection
Operating Temp. Range	Room temperature +30 to 260°C	Room temperature +30 to 360°C
Temp. Control Accuracy	±0.3°C at 260°C	±0.3°C at 360°C
Temp. Fluctuation	±0.5°C at 260°C	±0.5°C at 360°C
Temp. Distribution Accuracy	±2.5°C at 260°C	±4.0°C at 360°C
Temp. Gradient	±10.0°C at 260°C	±20.0°C at 360°C
Max. Temp. Reaching Time	~70 mins.	~80 mins.
Clean Level	Class100 (when temperature is stable)
Interior/Exterior Material	Stainless steel / Cold rolled steel plate with melamine resin baking finish
Heat Insulating Material	Glass wool
Door	Single side left swing
Heater	Stainless steel pipe heater
Fan Type	Sirocco fan, Condenser motor 400W
Differential Pressure Meter	Analog type (0 ~ 300Pa)
Cable Port/ Exhaust Port	Inner diameter: 33mm×1 (right side) / Outer diameter 61mm
Filter	Heat resistant HEPA filter (dust-collection efficiency >99.97% up to 0.3μm particle filtering)
Caster Wheels / Adjuster	Free swivel caster wheels without stopper / level adjuster (2 at front)
Temp. Control/Setting Method	PID V control / Digital setting with ▲/▼ keys
Temp. Display System	Top screen: green 4-digit digital LED (resolution 1°C), Bottom screen: orange 5-digit digital LED (resolution 1°C)
Other Indications	LED indicates temperature patterns for heating/stabilizing/cooling
Operation Functions	Constant temperature operation, Programmed operation (Maximum 99 steps, up to 99 patterns, repeat operation function), Duration/time select operation function (auto start/auto stop/quick auto stop, program operation)
Additional Functions	Variable fan speed, Accumulated on time, operation time function (up to 65,535 hours); calibration offset; accumulated power consumption monitoring, total CO₂ emission monitoring, heater output monitoring; power recovery; setting data save and restore
Sensor	K type Thermocouple dual sensor (temperature control and independent overheat prevention device sensors)
Heater Control	Triac with zero-cross control
Safety Device	Self-diagnostic functions (Detection for Temp. Sensor Failure, Triac Short Circuit, Automatic overheating prevention, Fan motor failure detection, Heater Line Disconnect, Main Relay Contact Damage), Earth leakage breaker, Key Lock Function, Independent overheating prevention device, Phase reversal relay, Door switch
Earth Leakage Breaker	15A	15A	15A	20A
Current leak /short circuit/surge protection, rated sensitivity 30mA
Door Switch	Door open: fan motor and heater circuit off, Door close: fan motor and heater circuit on
Internal Dimensions WxDxH	450×450×450 mm	600×600×600 mm	450×450×450 mm	600×600×600 mm
External Dimensions WxDxH	700×1025×1570 mm	850×1175×1720 mm	700×1025×1570 mm	850×1175×1720 mm
Internal Capacity	91L / 3.21 cu. ft.	216L / 7.62 cu.ft.	91L / 3.21 cu. ft.	216L / 7.62 cu.ft.
Weight	~200 kg / ~441 lbs.	~270 kg / ~596 lbs.	~200 kg / ~441 lbs.	~270 kg / ~596 lbs.
Shelf Rest / Pitch	12 steps / 30mm	17 steps / 30mm	12 steps / 30mm	17 steps / 30mm
Withstand Load Of Shelf	~30 kg / shelf
Power Supply 50/60Hz (V±10%)	220V 3 phase 7A (no plug, round terminal)	220V 3 phase 10A (no plug, round terminal)	220V 3 phase 10A (no plug, round terminal)	220V 3 phase 14A (no plug, round terminal)
Included Accessories	Shelf and brackets
Shelf Plate / Bracket	2 pcs. / 4 pcs.	3 pcs. / 6 pcs.	2 pcs. / 4 pcs.	3 pcs. / 6 pcs.

MODEL	DE411	DE611	DT411	DT611
Circulation Method	Forced convection
Operating Temp. Range	Room temperature +30 to 260°C		Room temperature +30 to 360°C
Temp. Control Accuracy	±0.3°C at 260°C		±0.3°C at 360°C
Temp. Fluctuation	±0.5°C at 260°C		±0.5°C at 360°C
Temp. Distribution Accuracy	±2.5°C at 260°C		±4.0°C at 360°C
Temp. Gradient	±10.0°C at 260°C		±20.0°C at 360°C
Max. Temp. Reaching Time	~70 mins.		~80 mins.
Clean Level	Class100 (when temperature is stable)
Interior/Exterior Material	Stainless steel / Cold rolled steel plate with melamine resin baking finish
Heat Insulating Material	Glass wool
Door	Single side left swing
Heater	Stainless steel pipe heater
Fan Type	Sirocco fan, Condenser motor 400W
Differential Pressure Meter	Analog type (0 ~ 300Pa)
Cable Port/ Exhaust Port	Inner diameter: 33mm×1 (right side) / Outer diameter 61mm
Filter	Heat resistant HEPA filter (dust-collection efficiency >99.97% up to 0.3μm particle filtering)
Caster Wheels / Adjuster	Free swivel caster wheels without stopper / level adjuster (2 at front)
Temp. Control/Setting Method	PID V control / Digital setting with ▲/▼ keys
Temp. Display System	Top screen: green 4-digit digital LED (resolution 1°C), Bottom screen: orange 5-digit digital LED (resolution 1°C)
Other Indications	LED indicates temperature patterns for heating/stabilizing/cooling
Operation Functions	Constant temperature operation, Programmed operation (Maximum 99 steps, up to 99 patterns, repeat operation function), Duration/time select operation function (auto start/auto stop/quick auto stop, program operation)
Additional Functions	Variable fan speed, Accumulated on time, operation time function (up to 65,535 hours); calibration offset; accumulated power consumption monitoring, total CO₂ emission monitoring, heater output monitoring; power recovery; setting data save and restore
Sensor	K type Thermocouple dual sensor (temperature control and independent overheat prevention device sensors)
Heater Control	Triac with zero-cross control
Safety Device	Self-diagnostic functions (Detection for Temp. Sensor Failure, Triac Short Circuit, Automatic overheating prevention, Fan motor failure detection, Heater Line Disconnect, Main Relay Contact Damage), Earth leakage breaker, Key Lock Function, Independent overheating prevention device, Phase reversal relay, Door switch
Earth Leakage Breaker	15A	15A	15A	20A
Earth Leakage Breaker	Current leak /short circuit/surge protection, rated sensitivity 30mA
Door Switch	Door open: fan motor and heater circuit off, Door close: fan motor and heater circuit on
Internal Dimensions WxDxH	450×450×450 mm	600×600×600 mm	450×450×450 mm	600×600×600 mm
External Dimensions WxDxH	700×1025×1570 mm	850×1175×1720 mm	700×1025×1570 mm	850×1175×1720 mm
Internal Capacity	91L / 3.21 cu. ft.	216L / 7.62 cu.ft.	91L / 3.21 cu. ft.	216L / 7.62 cu.ft.
Weight	~200 kg / ~441 lbs.	~270 kg / ~596 lbs.	~200 kg / ~441 lbs.	~270 kg / ~596 lbs.
Shelf Rest / Pitch	12 steps / 30mm	17 steps / 30mm	12 steps / 30mm	17 steps / 30mm
Withstand Load Of Shelf	~30 kg / shelf
Power Supply 50/60Hz (V±10%)	220V 3 phase 7A (no plug, round terminal)	220V 3 phase 10A (no plug, round terminal)	220V 3 phase 10A (no plug, round terminal)	220V 3 phase 14A (no plug, round terminal)
Included Accessories	Shelf and brackets
Shelf Plate / Bracket	2 pcs. / 4 pcs.	3 pcs. / 6 pcs.	2 pcs. / 4 pcs.	3 pcs. / 6 pcs.

* Conditions: temperature and humidity: 23°C+, 65% RH ±20%, atmospheric pressure 86kPa ~106kPa (no load), exhaust damper and intake closed
