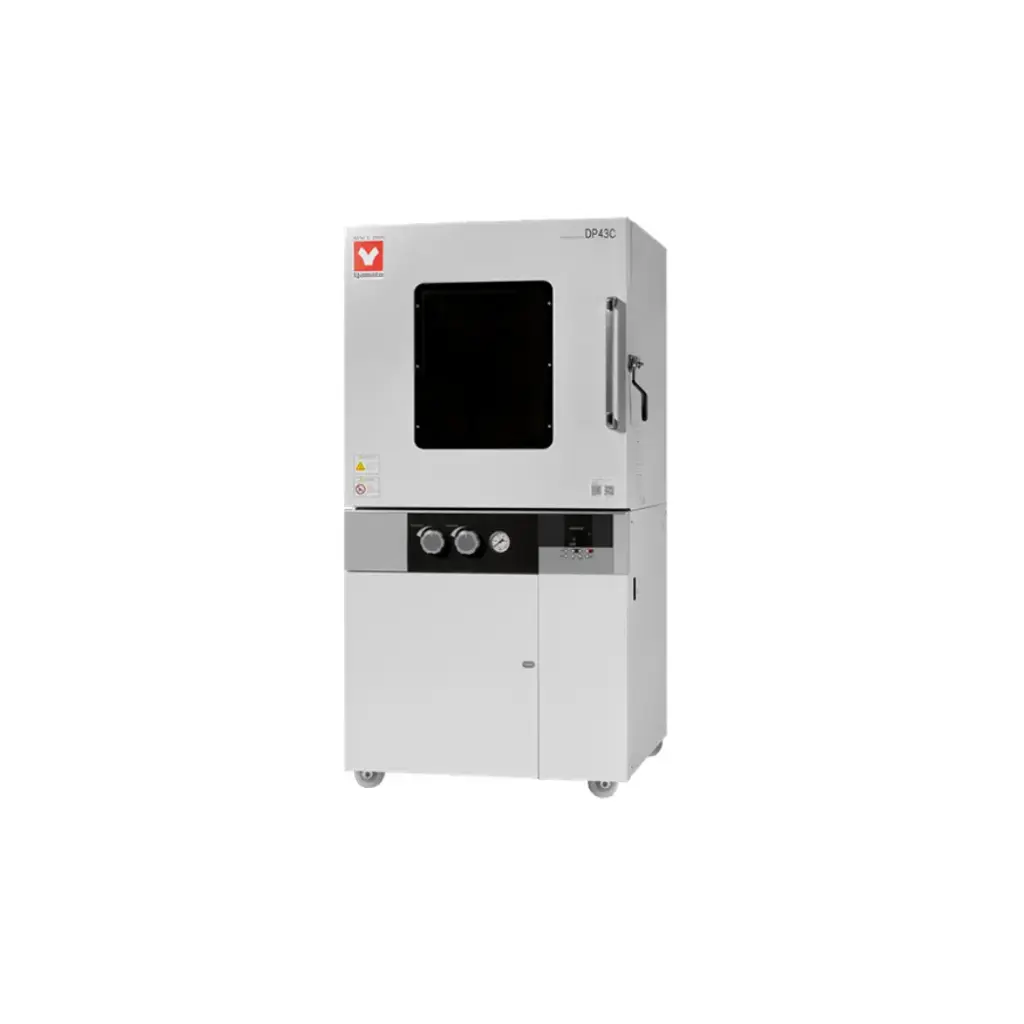

Yamato DP Series Large Vacuum Drying Ovens

Yamato DP Series Large Vacuum Drying Ovens

Large-capacity multi-purpose vacuum ovens

$ 11,695.00 11695.0 USD $ 11,695.00 In stock

$ 0.00

Model
- [797059926794] DP-43C
- [797059926800] DP-63C

This combination does not exist.

Add to cart Buy now

For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

DP43C/63C

Performance and functions

Interactive key input of the control panel for easy operation
Equipped with high precision functions such as fixed temperature, quick auto stop, auto stop, auto start and program operations for enhanced performance
Vacuum reaching time significantly reduced by improvement of the exhaust system, resulting in more efficient operation
Vacuum pump can be stored in the bottom cabinet, which is suitable for space limited laboratories
Easy removal of piping and maintenance of the vacuum pump
Calibration off-set function

Safety features

Enhanced safety features: sensor trouble detection, SSR short circuit detection, heater disconnection detector(sensor), memory error, internal communication error, overheating and measurement temperature error
Large observation window with protective cover for increased safety

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	DP43C	DP63C
System	Vacuum drying by decompressed chamber direct heating
Operating temp. range	40°C to 200°C
Operating pressure range	101 to 0.1 kPa (760 to 1 Torr)
Temp. control accuracy	±1.0°C (at 200°C)
Max. temp. reaching time	~80 min.	~120 min.
Interior material	Stainless steel
Exterior material	Cold rolled steel plate with baked-on melamine resin finish
Door	Single swing door
Heat insulating material	Glass wool
Heater	Mica heater, 2.25 kW	Mica heater, 3.15 kW
Vacuum gauge	Bourdon tube type, 0~-0.1 MPa (Gauge pressure)
Observation window	Tempered glass and polycarbonate resin plate
Temp. control method	PID control by microprocessor
Temp. setting method	Digital setting with ▲/▼ keys
Temp. display method	Green LED digital display
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. and 50 min.
Min. division	1 min. or 10 mins.
Operation function	Fixed temperature, Quick auto stop, Auto-start, Auto-stop, Program operation (16 segments)
Additional functions	Calendar timer (max. 24 Hrs.), Integration time (max. 49999 Hrs.), Time display
Heater circuit control	Triac zero-cross control
Temp. sensor	K-thermocouple (double sensor)
Safety device	Self diagnostic functions (Sensor, Heater, Triac, Automatic overheating prevention), Independent overheating prevention, Key lock function, Electric leakage breaker
Internal dimensions WxDxH	450×450×450 mm	600×600×600 mm
External dimensions WxDxH	670×669×1500 mm	820×819×1650 mm
Internal capacity	91L	216L
Shelf Support Qty. / Pitch	4 steps / 105mm	4 steps / 140mm
Exhaust port / Purge port	NW25 flange / Rc 1/4 (18mm O.D.)
Power source	220V, single phase, 11A (no plug, round terminal)	220V, single phase, 15A (no plug, round terminal)
Weight	~190kg	~290kg
Included accessories	2 perforated stainless steel shelves

Model	DP43C	DP63C
System	Vacuum drying by decompressed chamber direct heating
Operating temp. range	40°C to 200°C
Operating pressure range	101 to 0.1 kPa (760 to 1 Torr)
Temp. control accuracy	±1.0°C (at 200°C)
Max. temp. reaching time	~80 min.	~120 min.
Interior material	Stainless steel
Exterior material	Cold rolled steel plate with baked-on melamine resin finish
Door	Single swing door
Heat insulating material	Glass wool
Heater	Mica heater, 2.25 kW	Mica heater, 3.15 kW
Vacuum gauge	Bourdon tube type, 0~-0.1 MPa (Gauge pressure)
Observation window	Tempered glass and polycarbonate resin plate
Temp. control method	PID control by microprocessor
Temp. setting method	Digital setting with ▲/▼ keys
Temp. display method	Green LED digital display
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. and 50 min.
Min. division	1 min. or 10 mins.
Operation function	Fixed temperature, Quick auto stop, Auto-start, Auto-stop, Program operation (16 segments)
Additional functions	Calendar timer (max. 24 Hrs.), Integration time (max. 49999 Hrs.), Time display
Heater circuit control	Triac zero-cross control
Temp. sensor	K-thermocouple (double sensor)
Safety device	Self diagnostic functions (Sensor, Heater, Triac, Automatic overheating prevention), Independent overheating prevention, Key lock function, Electric leakage breaker
Internal dimensions WxDxH	450×450×450 mm	600×600×600 mm
External dimensions WxDxH	670×669×1500 mm	820×819×1650 mm
Internal capacity	91L	216L
Shelf Support Qty. / Pitch	4 steps / 105mm	4 steps / 140mm
Exhaust port / Purge port	NW25 flange / Rc 1/4 (18mm O.D.)
Power source	220V, single phase, 11A (no plug, round terminal)	220V, single phase, 15A (no plug, round terminal)
Weight	~190kg	~290kg
Included accessories	2 perforated stainless steel shelves
